VARIABLE CAPACITORS and TRIMMERS  VARICAP
RECEIVER & LOW-POWER TRANSMITTER TYPE Variable Capacitors

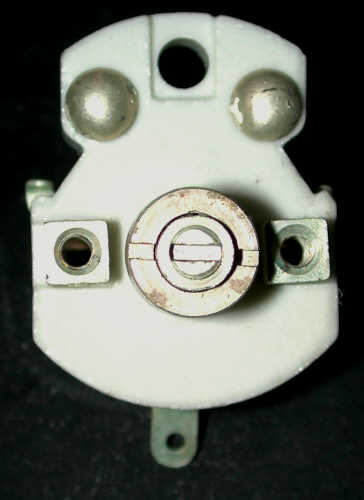

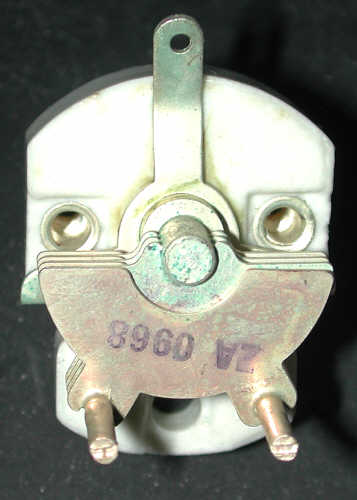

VCC145 25pF  Variable Air-spaced  Trimmer/Tuning Capacitor, 2-25pF  ZA0868
Ceramic base 31 x 25mm.  30mm deep behind panel. 17mm fixing centres.
4 stator vanes. Vanes spacing 1.5mm - approx.
Locking ring which may be unscrewed providing a short (3mm) 1/4" shaft.   Silver plated.
May have minor storage marks.
Unused 4.25
VCC2110   25pF Variable Air-spaced  Capacitor
VCC2112 25pF Variable Air-spaced  Capacitor

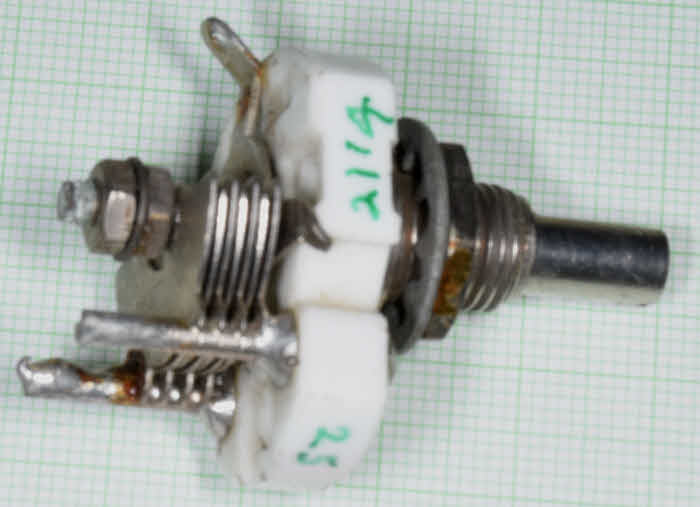

VCC2114 25pF Variable Air-spaced  Capacitor

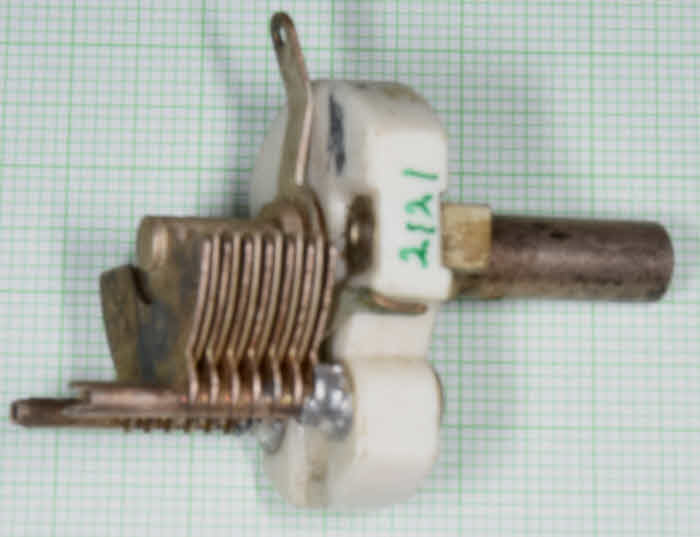

VCC2121 50pF Variable Air-spaced  Capacitor

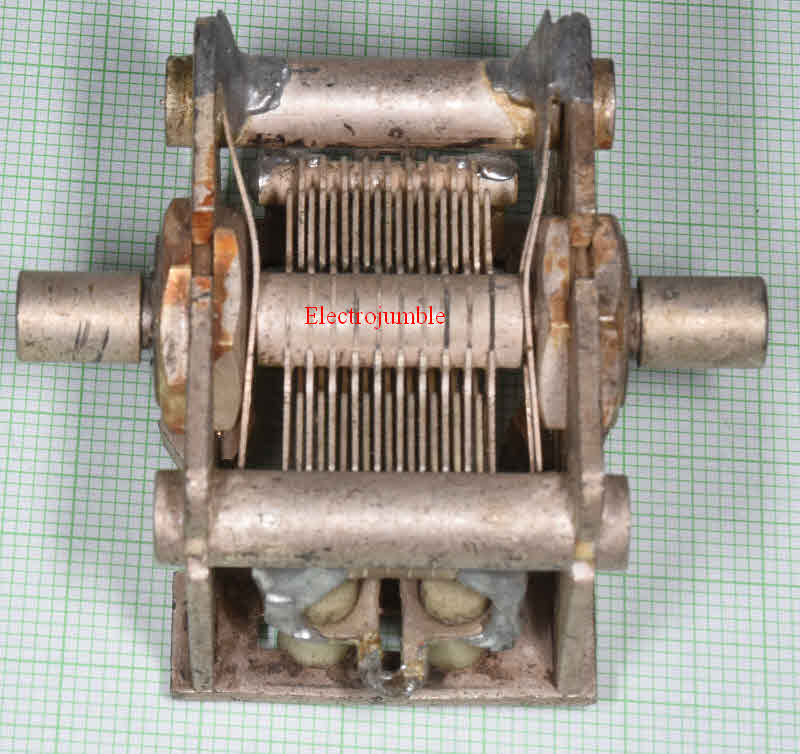

VCC2122 75pF Variable Air-spaced  Capacitor

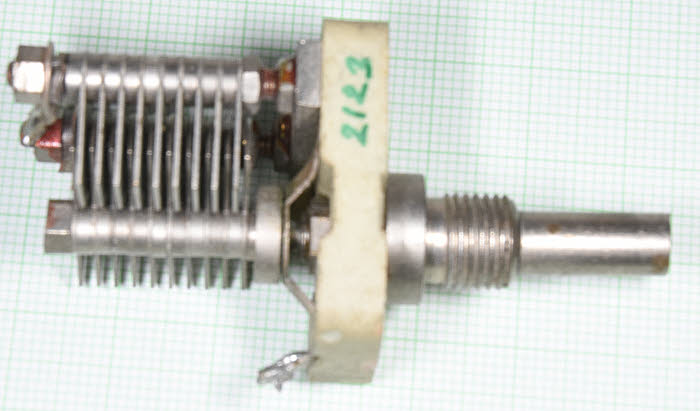

VCC2123 77pF Variable Air-spaced  Capacitor

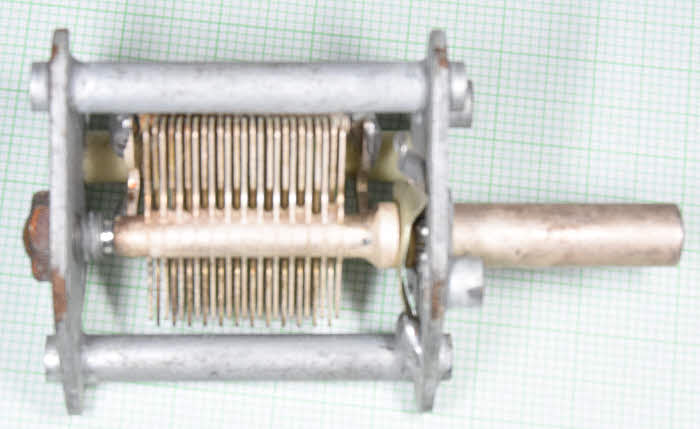

VCC2125 97pF Variable Air-spaced  Capacitor

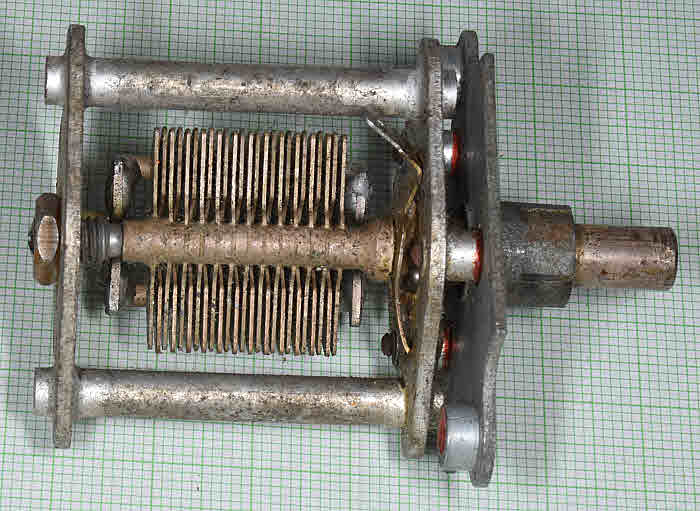

VCC2126 100pF Variable Air-spaced  Capacitor

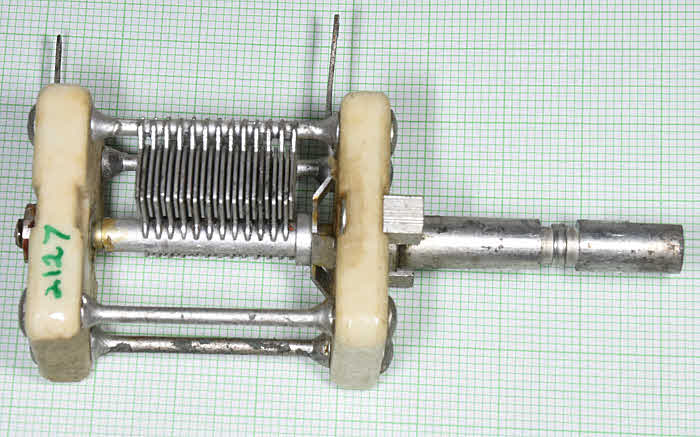

VCC2127 100pF Variable Air-spaced  Capacitor

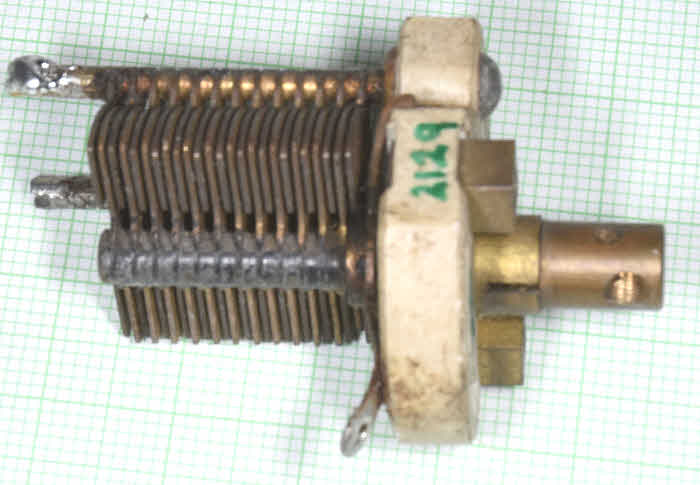

VCC2129 100pF Variable Air-spaced  Capacitor
VCC2130   108pF Variable Air-spaced  Capacitor
VCC2132 140pF Eddystone type 586 Variable Air-spaced  Capacitor Unused
VCC2134 144pF Variable Air-spaced  Capacitor
VCC2135 150pF. Jackson type 804. Variable Air-spaced  Capacitor Boxed Unused
VCC2142 240pF Variable Air-spaced  Capacitor Used

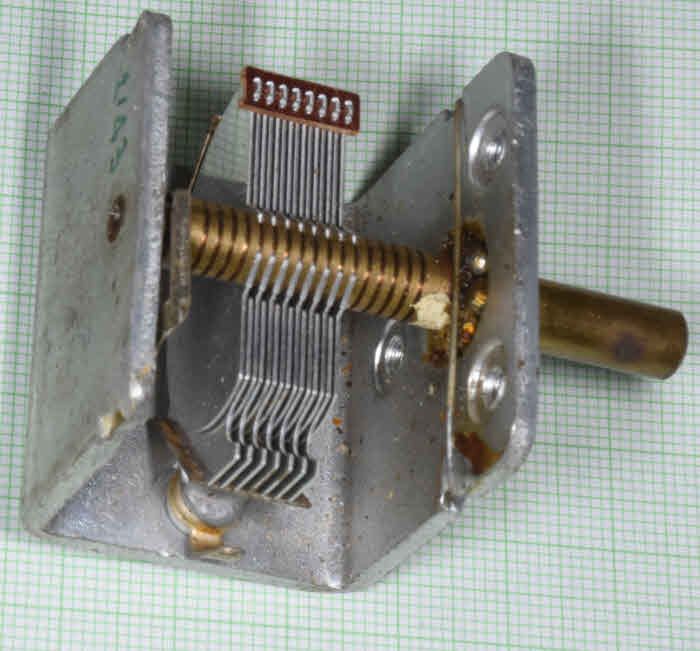

VCC2143 240pF Variable Air-spaced  Capacitor Unused

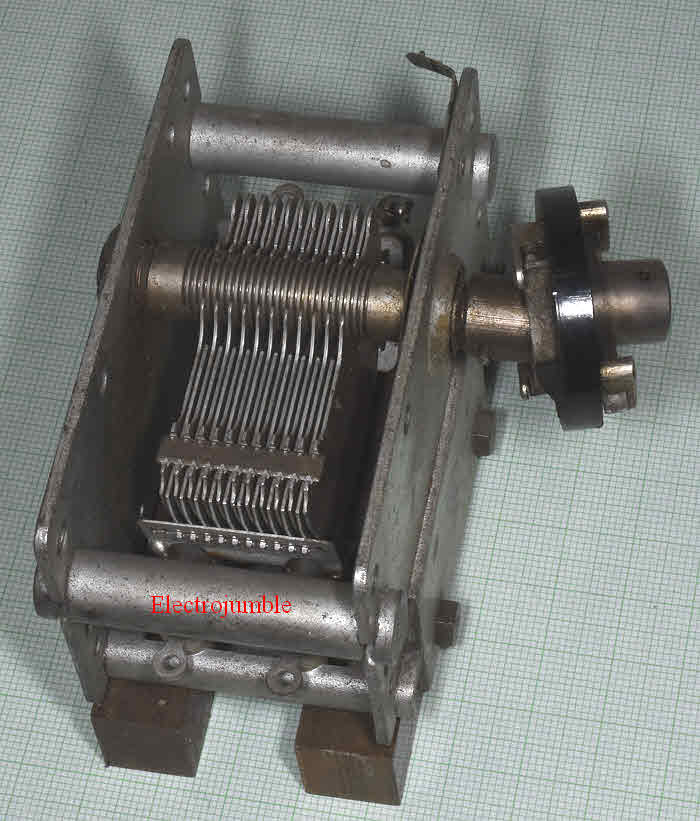

VCC2151 435pF with Insulation paxolin mounting blocks and flexible insulating shaft coupler.
Robust construction

Multi-gang Tuning Capacitors

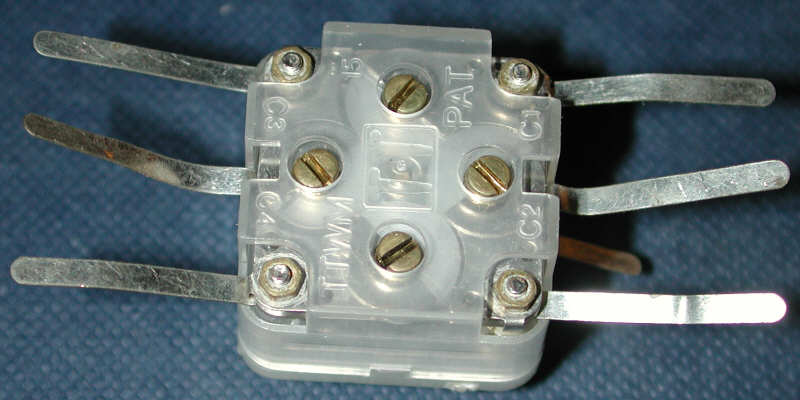

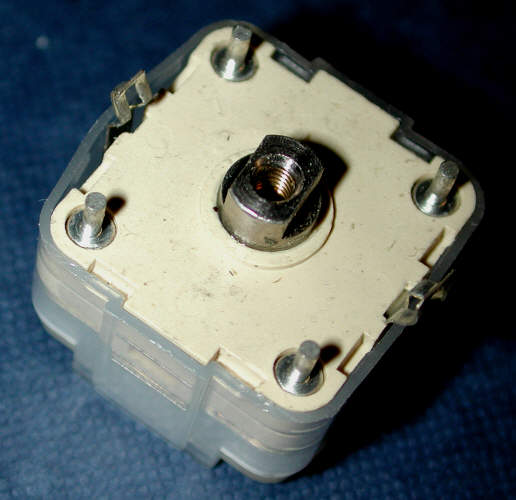

VCC121

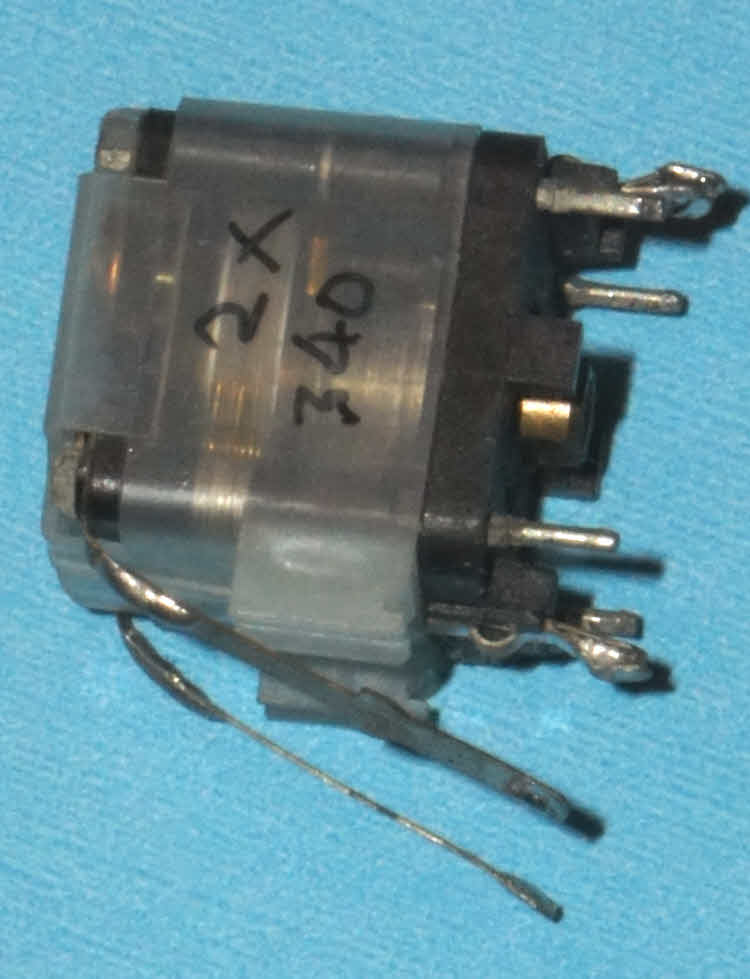

4-gang tuning Capacitor with 4 trimmers. 2 gangs of 14-140pF and 2 gangs of 18-38pF.
For Broadcast and VHF/FM radios.
Can also be used as a 60 to 356pF variable capacitor.
Size 20mm square and 18mm deep over shaft and pins.
For PCB mounting using the 4 pins and 2 earth lugs.
New Old Stock 2.00

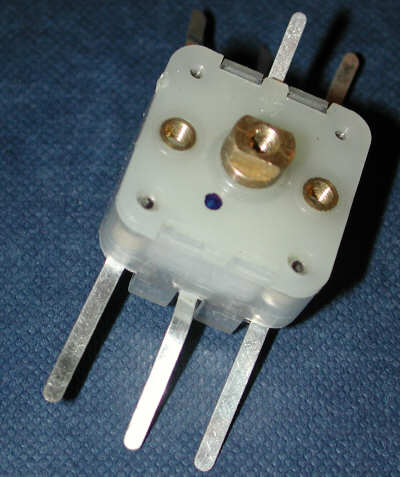

VCC122





4-gang tuning Capacitor with 4 trimmers. 2 gangs of 14-140pF and 2 gangs of 14-34pF.  For Broadcast and VHF/FM radios.  Can also be used as a 56 to 348pF variable capacitor.   Size 20mm square and 18mm deep over shaft and pins.   Similar to CC121 but with connection tails and two tapped holes.  New Old Stock 2.25
VCC124 4-gang tuning Capacitor with 4 trimmers. 2 gangs of 14-340pF and 2 gangs of 10-30pF approx.
Also usable as a single MW or LW 680pF tuning caopacitor.
Used 1.25

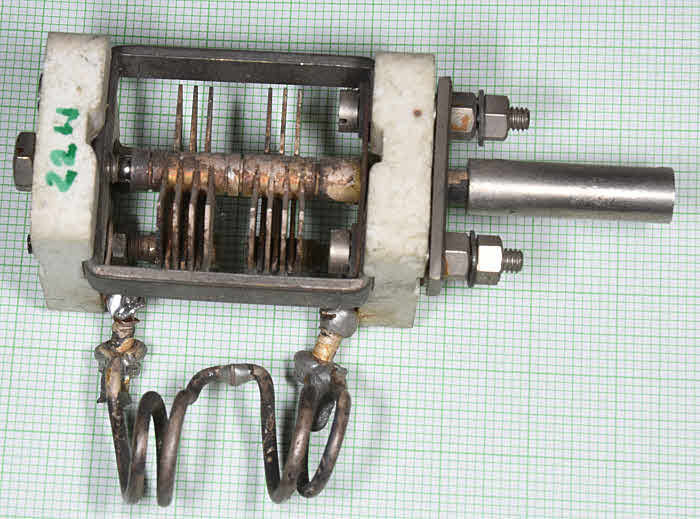

VCC2211 28+28pF Variable Air-spaced  Capacitor

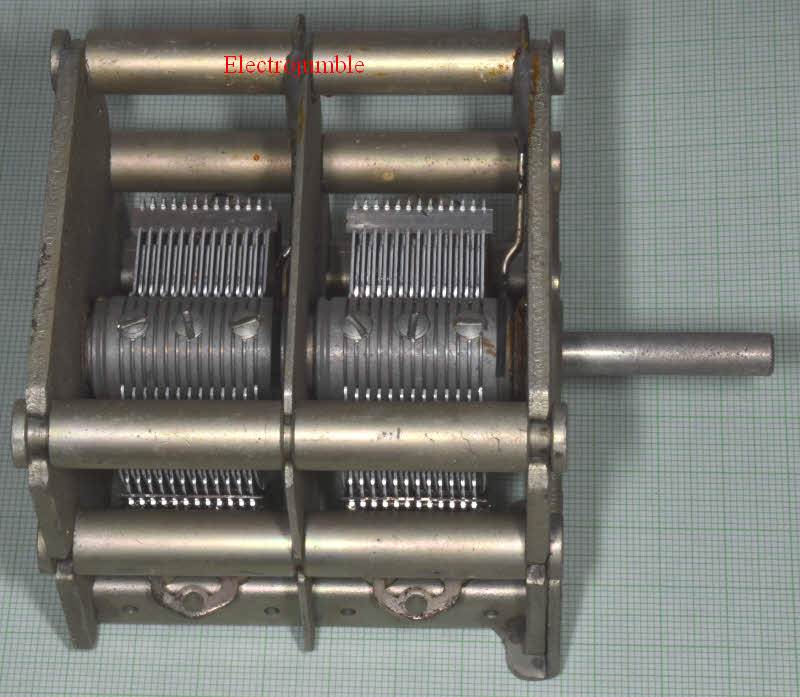

VCC2256 540+540pF Variable Air-spaced  Capacitor

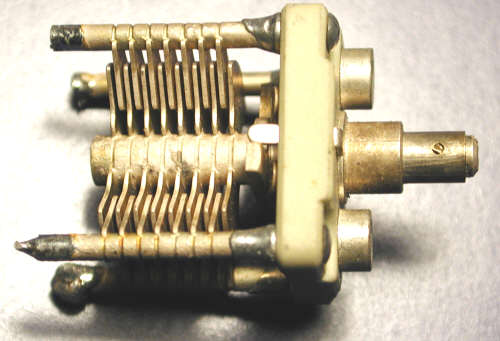

Split Stator (Butterfly) variable Capacitors

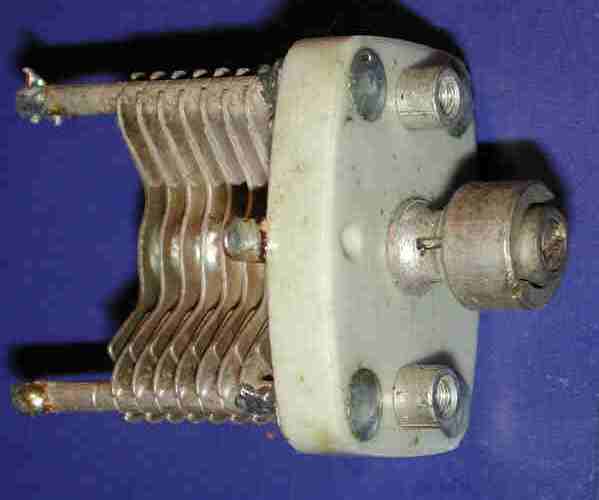

VCC232 17+17pF   Variable Air-spaced  Capacitor,  Split Stator 17+17pF.  TX type
Ceramic base 31 x 25mm.  35mm deep behind panel. Locking ring.
17mm fixing centres
Ex Equipment 2.90
VCC233 17+17pF  Variable Air-spaced  Capacitor,  Split Stator 17+17pF
Ceramic base 20 x 15mm.  25mm deep behind panel.  Silver plated.
Ex Equipment 3.40

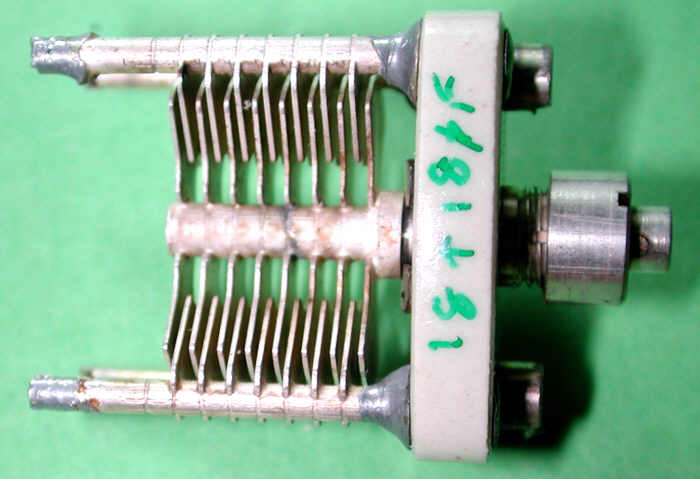

VCC237 18+18pF Variable Air-spaced  Capacitor,  Split Stator 18+18pF Ex Equipment 3.40
VCC240 50+50pF  Variable Air-spaced  Capacitor,  Split Stator 50+50pF to Vane.  Used 3.50

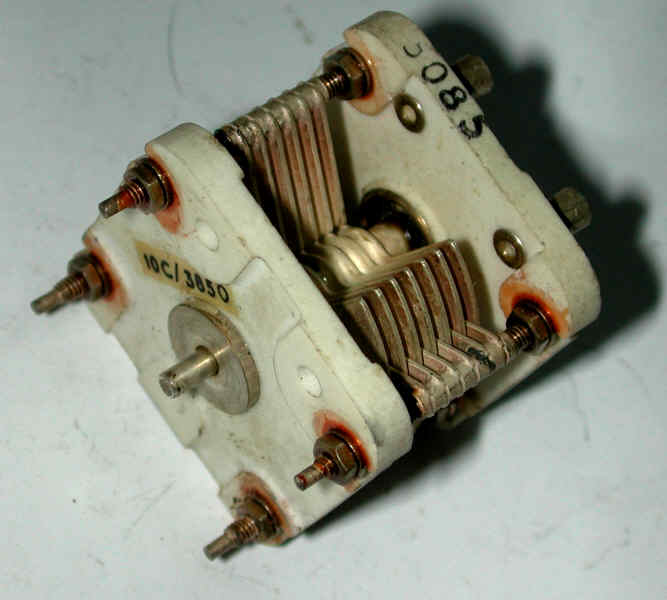

VCC247 50+50pF  Variable Air-spaced  Capacitor,  Split Stator 50+50pF to Vane.  10C/3850
Variable Air-spaced  Capacitor,  Split Stator. Silver plated. May have storage marks.
42mm square, 45mm deep overall.
Unused 8.25

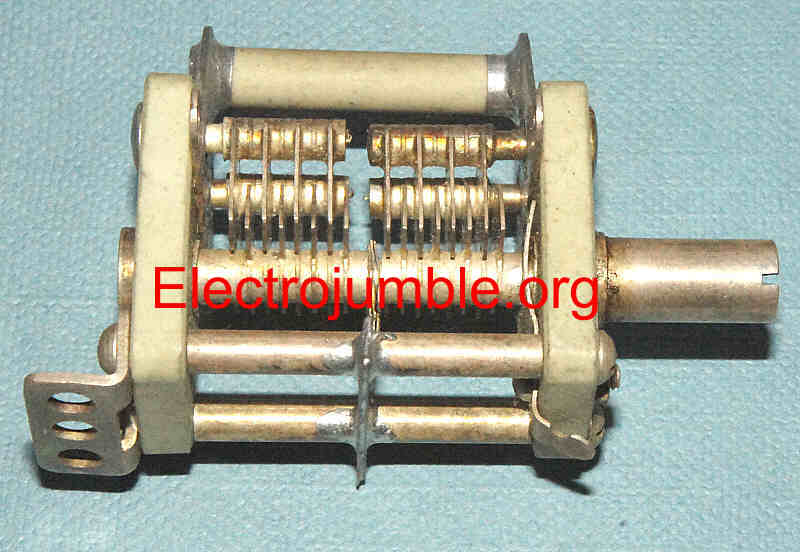

VCC248 8+8pF  2 gang Variable Air-spaced  Capacitor,  Split Stator. 8+8pF. 10C/3858
Rotors mounted on insulated ceramic shaft.  Rotation limiting stops.
Variable Air-spaced  Capacitor,  Split Stator. Adjustable stator end vanes.
Silver plated.   3.1mm shaft
45 x 70 x 85mm overall.  May have storage marks.
Unused 11.25

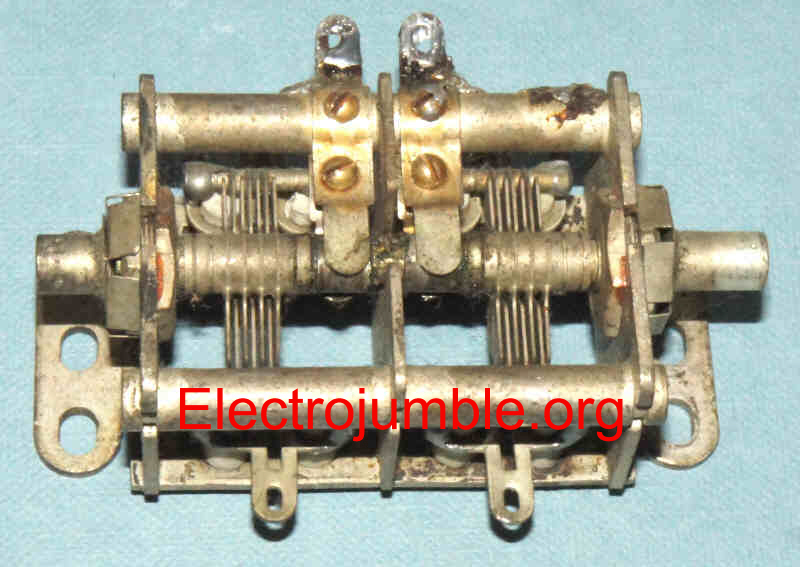

VCC335 23+23pF   2 gang Variable Air-spaced  Capacitor 23+23pF.  10C/2071 Shafts both ends.
Body 30x38 x 52mm long.  77mm overall.
Used 9.50
VCC338 35+35pF  2 gang Variable Air-spaced  Capacitor 35+35pF.
Body 24x30 x42mm long. Spindle and bearing 27mm long.
Used 7.50

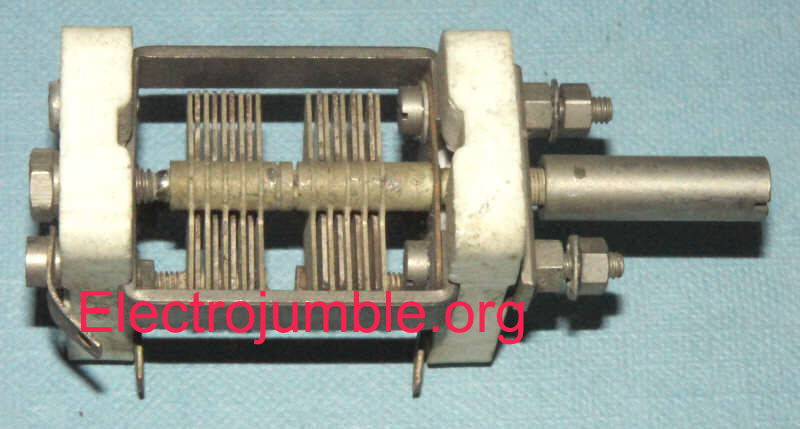

VCC339 36+36pF  2 gang Variable Air-spaced  Capacitor 36+36pF.
Body 24x30 x42mm long. Spindle and bearing 27mm long.
Unused 11.50

VINTAGE TUNING CAPACITORS
    More to be listed - from 1920s on

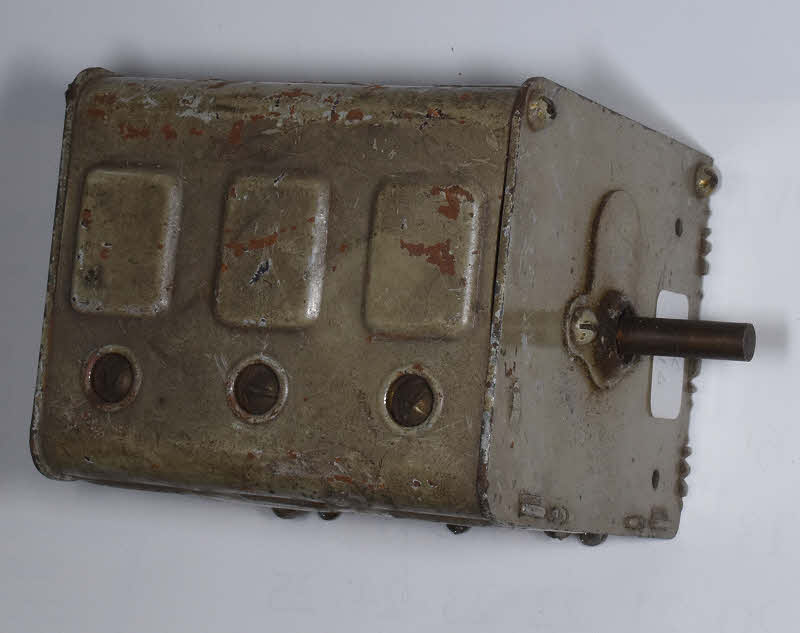

VCC1316 3 Gang 500pF with trimmers Used 10.00
VCC1410 20-500pF Solid dielectric single gang tuning capacitor.
1920s type 50x52mm with knob
Used 12.00


 TRANSMITTER Type Variable CAPACITORS  wide-spaced vanes

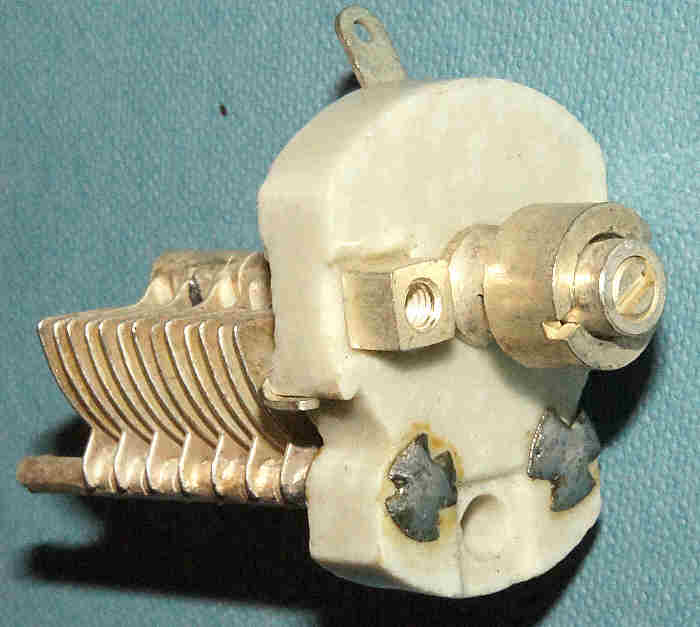

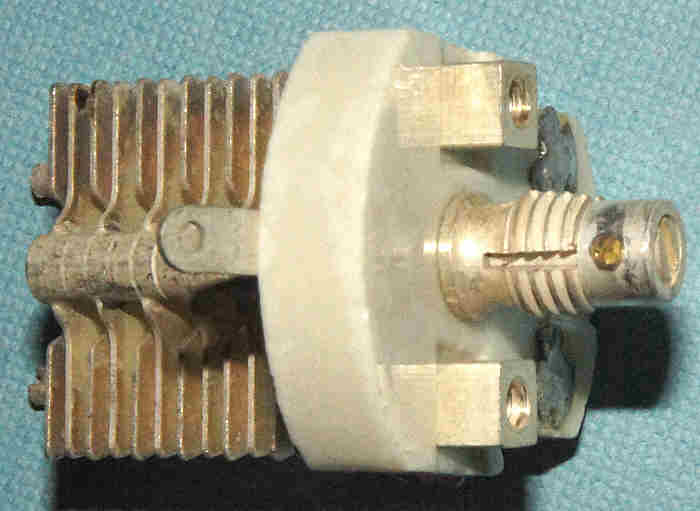

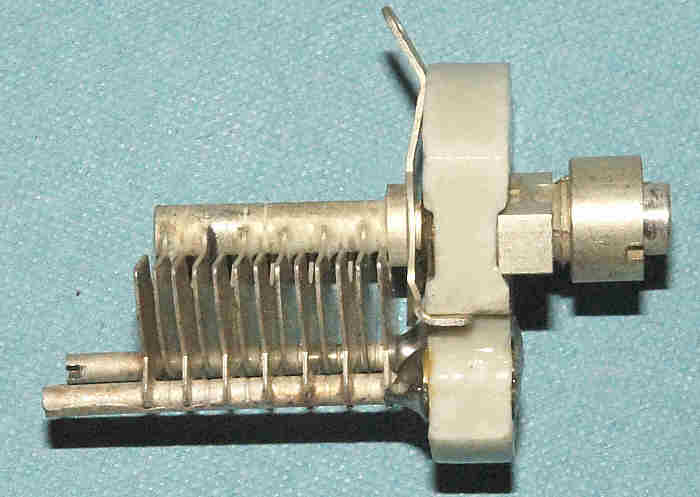

VCC148  Variable Air-spaced  Trimmer/Tuning Capacitor, 2-20pF. TX type.  ZA5085 or equivalent
Transmitter Tuning Capacitor
Ceramic base 31 x 25mm.  40mm deep behind panel. 17mm fixing centres
7 stator vanes. Vane spacing 3mm - approx 1mm air gap.
Locking ring which may be unscrewed providing a short (3mm) 1/4" shaft.   Silver plated.
May have minor storage marks.
With locking ring removed showing shaft.
Unused 7.25

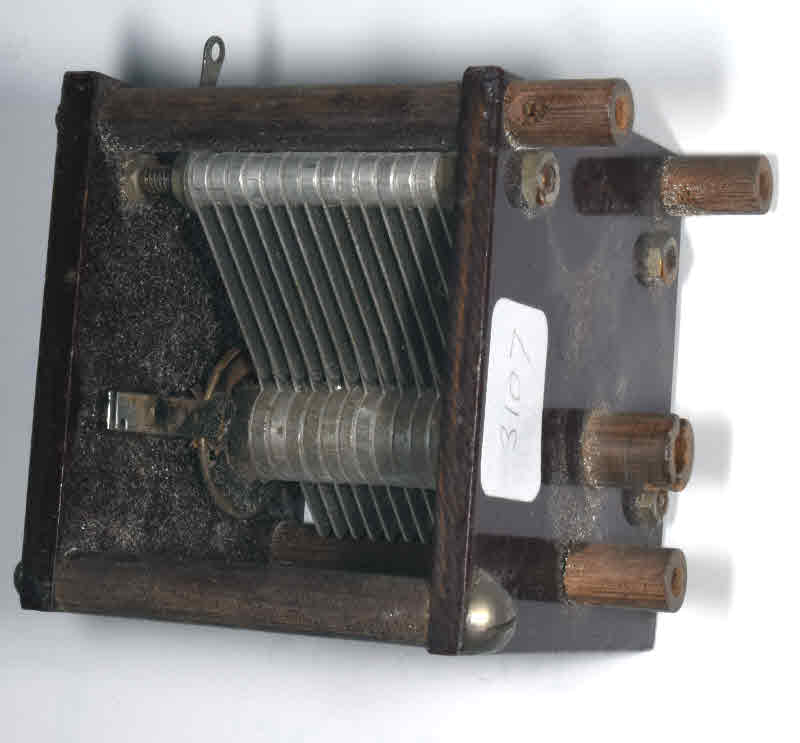

VCC3107 250pF  10A/10385 Unused 10.25

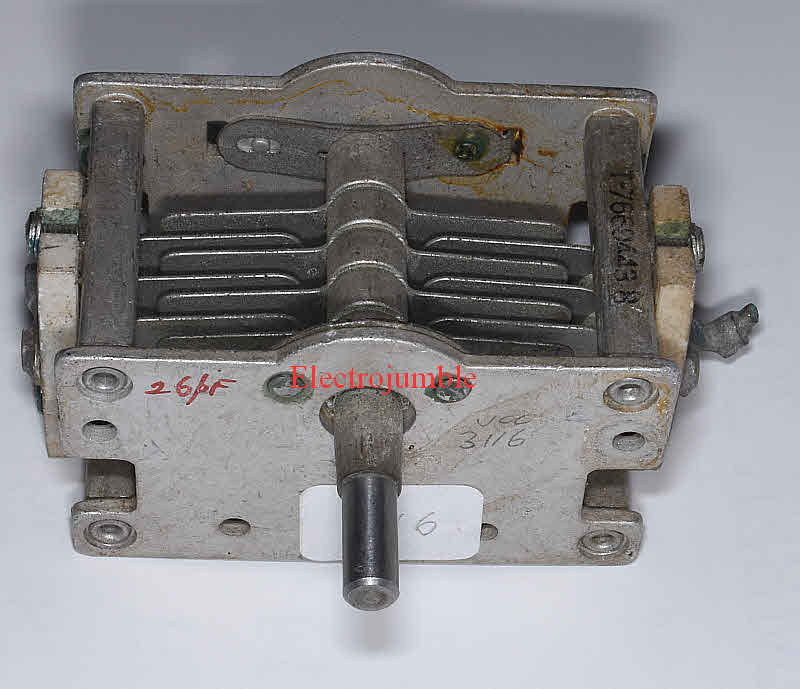

VCC3116 Variable Air-spaced Tuning Capacitor.  26pF  Transmitting type Used 9.50

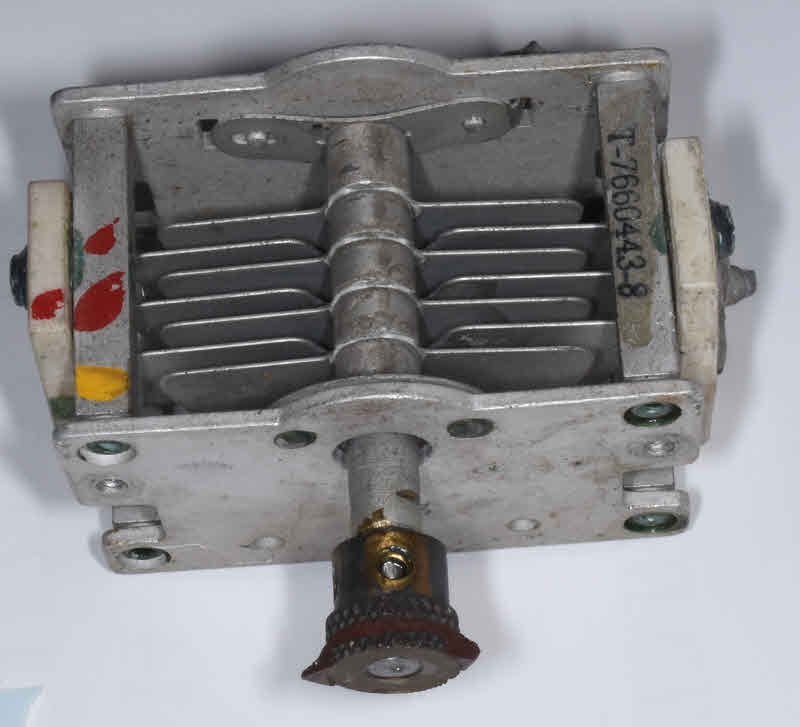

VCC3118 Variable Air-spaced Tuning Capacitor.  25pF  Transmitting type
Broken knob fixed to shaft
Used 9.00

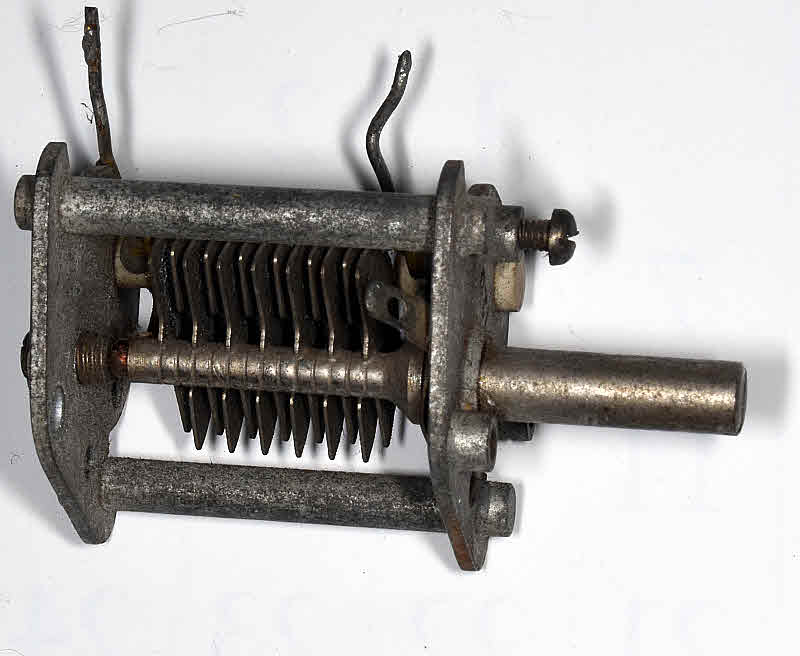

VCC3120 Variable Air-spaced Tuning Capacitor.  20pF  Transmitting type Used 3.00

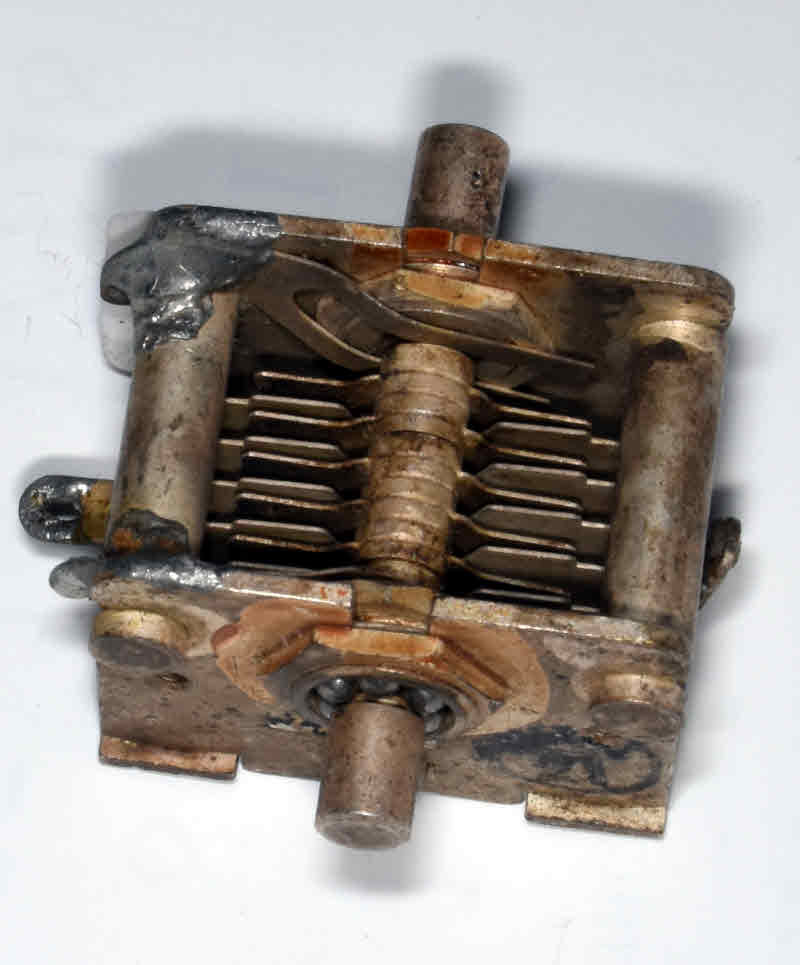

VCC3126 Variable Air-spaced Tuning Capacitor.  18pF  Transmitting type Dual Shaft Used 8.00

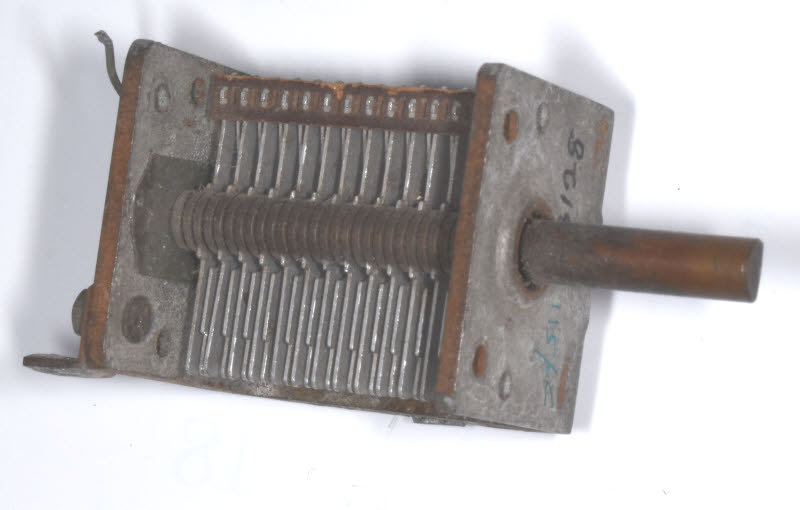

VCC3128 Variable Air-spaced Tuning Capacitor.  115pF  Transmitting type Used 15.00
VCC3130 Variable Air-spaced Tuning Capacitor.  310pF  Transmitting type Dual Shaft Unused boxed 21.00
Multi-gang Variable Capacitors - transmitting types

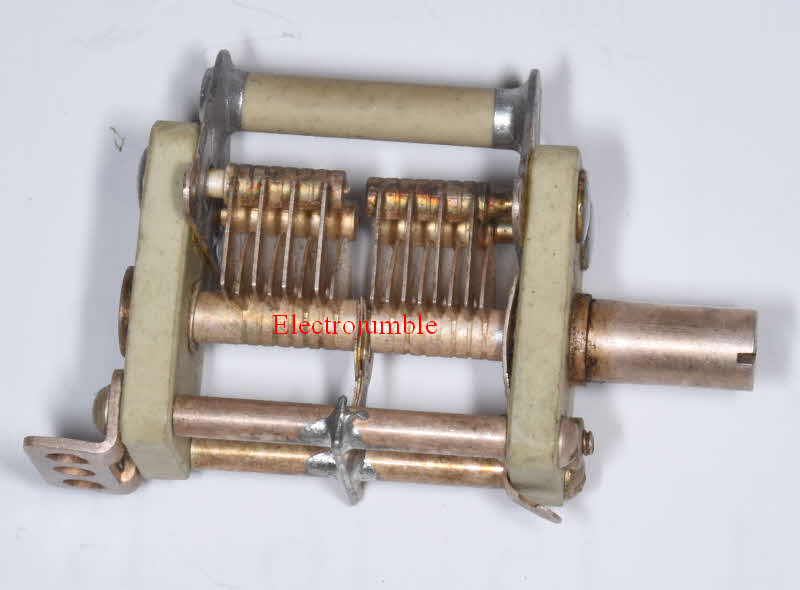

VCC3206 2 gang Variable Air-spaced  Capacitor 8+8pF.   Transmitter type
Body 16x35 x42mm long. 54mm overall in length.  2 available
Unused 11.25

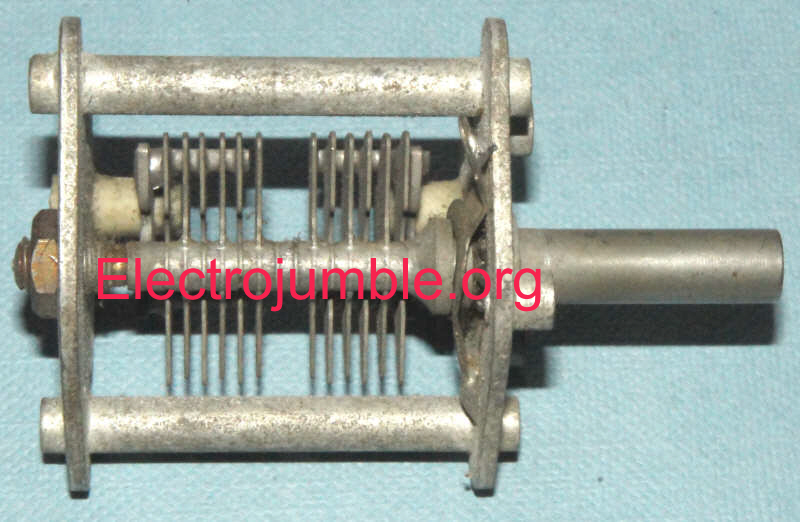

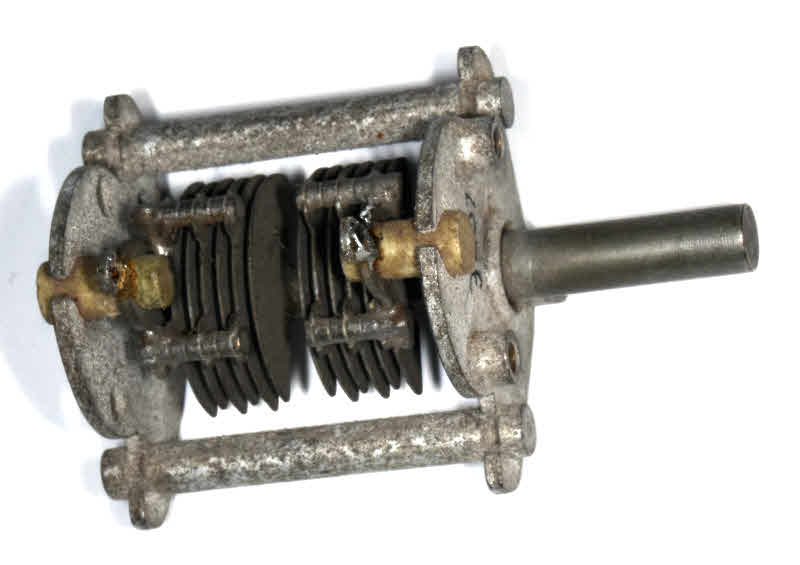

VCC3207 2 gang Variable Air-spaced  Capacitor 9+9pF.  Transmitter type Used 4.50
VCC3208 2 gang Variable Air-spaced  Capacitor 9+9pF.  Transmitter type
Body 32x42 x37mm long.  25mm long shaft.
Used 9.50

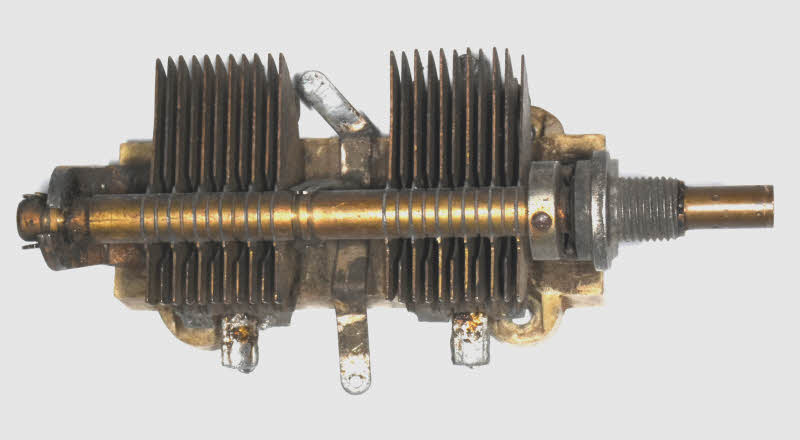

VCC3214 2 gang Variable Air-spaced  Capacitor 35 + 35pF Transmitter type Used 9.50

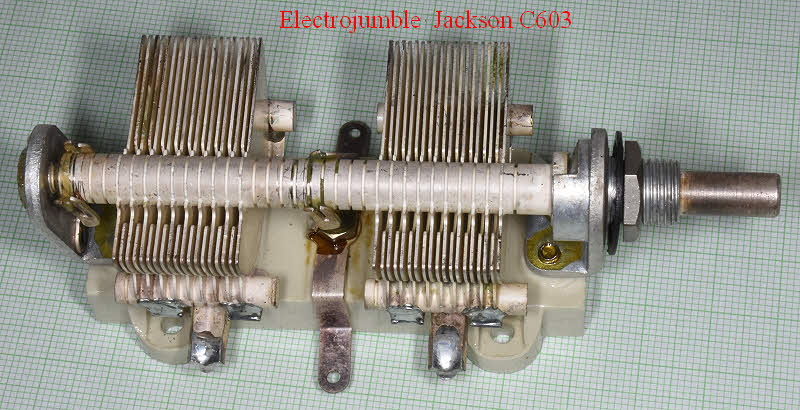

VCC3225 2 gang Variable Air-spaced  Capacitor 165 + 170pF. Jackson C603  Transmitter type Unused 24.50
TRIMMERS and Variable Capacitance Diodes (Varicaps)

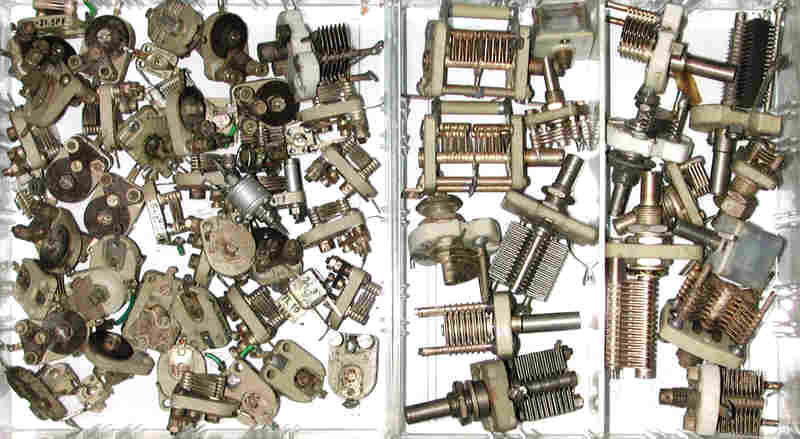

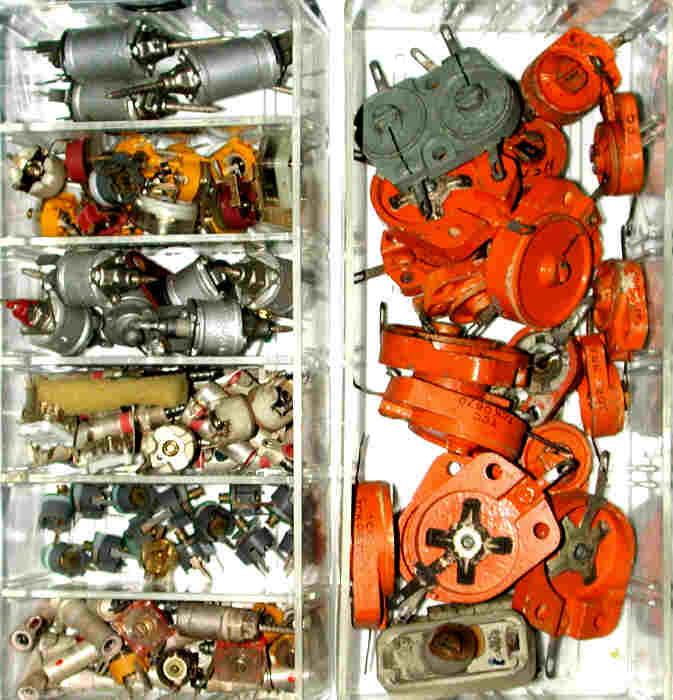

VCC661x Cap_Trim_Misc_Vane.jpg (39426 bytes) Trimmers and Tuning Capacitors, Air-spaced.
Various values and types available.

Too many to list easily but please enquire.

Air-spaced and solid dielectric types.

New and Used from 0.30
VCC662x Cap_Trim_Misc_Air.jpg (45243 bytes) Trimmers,   Various values and types available.

Too many to list easily but please enquire.

New and Used from 0.50
VCC665


VCC665x

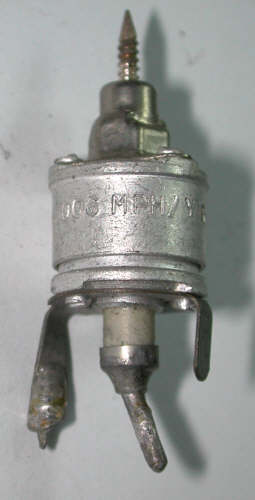

Beehive Trimmers - 10 assorted random values.
Joint services pattern CVA60 or equivalent.
Used/Unused


3.50

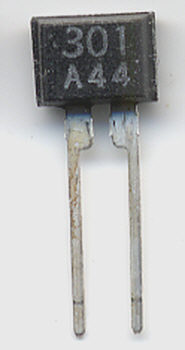

VCC871 Varicap Diode Varactor  1SV101  Toshiba.   Toko part no KV1301A.
30 to 13 pF for 3 to 9V.  Z<0.5 ohm at 50 MHz.    Approx 5x2x 4mm.
Data Sheet.
New Old Stock 0.45
VCC878 . Varicap Diode Varactor  DC4302B  Marconi M.E.D.L
Microwave tuning Gallium Arsenide 1.3pF   Data Sheet HERE
Old Stock 7.00
