BULBS LAMPS LEDS and HOLDERS
For purchasing information, please see Information page - Button above
| Cat No. | Click images for larger pictures |
Description | Condition | Price GBP |
|---|---|---|---|---|
LAMPS and BULBS | GBP | |||
| BC LAMPS B22d (Same size as Normal Mains Lamps) 22mm diameter body | ||||
| LAM002 | . | BC Bulb 12V 24W. Lumax B10 RS No. 701 35mm diameter globe, 51mm tall. | New old stock | 3.10 |
| LAM003 | . | BC Bulb 24V
6W. Cryselco
No639 Side, Tail and Dash 22mm diameter globe, 35mm tall. | New old stock | 4.10 |
| LAM004 | . | BC Bulb 24V 20W. Lucas/Thorn 821 35mm diameter frosted globe, 51mm tall. | New old stock | 3.50 |
| LAM011 | . | BC Bulb 50V 15W. 25mm diameter, 65mm tall. | New old stock | 0.95 |
| LAM014 | . | 110V 500W. | New old stock | POA |
| Small Bayonet Cap SBC LAMPS B15d - 15mm diameter body | ||||
| LAM041 |  | Small CC Bulb Single Contact 24V 5W. No 149 Round 19mm diameter. Stainless steel Equivalent to Mazda No149 or Alite A309. Side and Tail. | New stock | 0.79 |
| LAM041a |  | Small SCC Bulb Single Contact 24V 6W. No 149 Round 19mm diameter. Mazda No149 or Alite A309 Side and Tail. 2 only remain. | New old stock | 1.45 |
| LAM043 | . | Small BC Double Contact 24V 18W. Osram No 338 Lucas Boxed Pear shape 25mm diameter. 50mm high. | New old stock | 0.45 |
| LAM044 | , | Small BC Double Contact 24V 24W. No 333 Lucas Boxed Pear shape 25mm diameter. 50mm high. | New old stock | 1.95 |
| LAM046 | , | SBC Single Contact 28V 40W. Atlas VCN-40C 36mm diameter. 55mm high. Horizontal Filament | New old stock | 4.25 |
| LAM046a | , | SBC Single Contact 28V 40W. Atlas 995-2445 36mm diameter. 55mm high. Inverted V filament | New old stock | 5.25 |
| LAM046b | , | SBC Single Contact 28V 40W. Atlas 995-3301 36mm diameter. 55mm high. Dual horizontal V filament | New old stock | 5.95 |
| LAM047 | . | Small BC Double Contact 24V 60W. No 128 36mm diameter. 55mm high. | New old stock | 3.25 |
| Miniature (Single) Contact Cap - BA9s - MCC LAMPS - 9mm diameter body | ||||
| LAM051 |  | MCC Bulb Round 12V 2.2W. 11mm diameter | New old stock | 0.45 |
| LAM052 |  | MCC Bulb Tubular 12V 0.183A. 10mm diameter RS 586-740 | New old stock | 0.55 |
| LAM055 |  | MCC Bulb Tubular 24V 3W. 10mm diameter 6 only | New old stock | 0.45 |
| LAM057 | |
MCC Bulb Tubular 28V 3.5W. 10mm diameter Ex display units | Used? Tested | 0.25 |
| Small Edison Screw SES LAMPS E14 13.8mm diameter over threads | ||||
| LAM060 |  | Lamp SES 24V 20W Tubular 20mm diameter, 138mm long | Vintage tested | 5.20 |
| LAM060 | . | Lamp SES 240V 15W. As used in some ovens and cupboards. | New Stock | 1.45 |
| Miniature Edison Screw - E10 - MES LAMPS - 9.4 mm diameter over threads | ||||
| LAM071 |  | Lamp MES 2.5V 0.2A. Round 11mm diameter | New old stock | 0.65 |
| LAM071a | | Lamp MES 2.5V 0.25A. Round 11mm diameter. | New Stock | 0.35 10+ 0.32 |
| LAM072 |  | Lamp MES 6V 60mA. Round 11mm diameter | New old stock | 0.85 |
| LAM073 |  |
Lamp MES 6.2V 0.3A. Round 15mm diameter.
Some damp marks as on picture. |
Old stock | 0.39 |
| LAM075 |  | Lamp MES 6.5V 0.3A. 2W Joint Services Code 6240-99-995-1922
Tubular 11mm diameter. | New stock | 0.38 |
| LAM078 |
 | Lamp MES 24V 2.8W Round 15mm diameter | New old stock | 0.80 |
| LAM079a |
 | Lamp MES Neon Tubular 6.3mm diameter. 2 parallel electrodes for ac operation. For use with external resistor. | New old stock | 1.00 |
| LAM080 |  | Lamp MES 50V 2.5W Tubular 10mm diameter. Hivac 5056 | New old stock | 0.95 |
| Lilliput Edison Screw - E5 - LES LAMPS - 5.3mm diameter over threads E5 base | ||||
| LAM085 |  | Lamp LES. 14V 0.7W. 5mm diam. Joint Services Code 6420-99-995-1903 | New Stock | 0.68 10+ 0.59 |
| LAM086 | | Lamp LES. 24V 1W. 5mm diam. Joint Services Code6420-99-995-1906. | New old stock | 0.60 |
| PRE-FOCUS LAMPS | ||||
| LAM100 |  | Lamp Pre-focus. 5.95V 0.5A. Ever Ready type 2176. | New old stock | 0.50ea 10 for £4.25 |
| LAM101 |  | Lamp Pre-focus. 6V 0.5A. Ray-o-Vac PR12. | New old stock | 0.50 |
| MIDGET FLANGED LAMPS | ||||
| LAM103 |  |
6V 100mA 0.6W. Lamp Min 6mm Midget Flange S6/8 (Joint Services code 6240-99-995-9119) MF/6/100 | New stock | 0.25 10+ 0.20 |
| LAM104b |
 |
14V 80mA Lamp Min 6mm Telefunken NSN 6240-12-157-4119. Some storage marks. | New old stock | 0.95 |
| LAM105 |  |
28V 1W 40mA. Lamp Min 6mm Midget Flange S6/8 Type 388 or (Joint Services code NSN 6240-99-995-9118) | New old stock | 0.30 |
| LAM108 |  | Lamp Sub-Min 3mm Sub-Midget Flange OtA1 8mm tall. Approx 3.8V at 100mA | New old stock | 0.95 |
| BI-PIN & WIRE BULBS | ||||
| LAM109 |  |
"Grain of Wheat" Bulb 5V 60mA RS Type 587-664 3mm diameter, 6mm long glass, 30mm long leads | Old stock | 0.95 |
| LAM110 |
 |
"Grain of Wheat" Bulb 5V 70mA Type 5L.4693.001.54 NSN 6240-12-166-1720 4mm diameter, 11.5mm long glass, 18mm long leads | Old stock | 0.95 |
| LAM111 |
 |
"Grain of Wheat" Bulb 5V 45mA 3mm diameter, 7mm long bulb | New stock | 0.65 |
| LAM114 | | 12V 50mA. "Grain of Wheat bulb" 3mm diameter, 5mm long bulb with 30mm long wire leads. | New Stock | 0.79 10+ 0.72 |
| LAM115 |
 |
"Grain of Wheat" Bulb 12V 60mA 3mm diameter, 7mm long bulb | New stock | 0.65 |
| LAM119 |  | Bi-pin T11/4 Neon. RS type 586-431. For use with external resistance - 270k ohms for 200-250V ac or dc operation. | New old stock | 0.75 |
| WEDGE and Festoon LAMPS | ||||
| LAM124 |  | PO Wedge Type No 2.
"Telephone Slide" 6V 40mA. 6mm diameter, 45mm long. | New old stock | 0.45 |
| LAM126 |  | Lamp PO Wedge Type. "Telephone
Slide" 60V 20mA.
6.5mm diameter, 45mm long. | New old stock | 0.45 |
| LAM127 | . | Lamp PO Wedge Type. 60V 20mA.
"Telephone Slide" Small Version 4.8mm diameter, 30mm long. RS 588-077 or equivalent | New old stock | 0.45 |
| PROJECTOR LAMPS My prices will be lower than any advertised! I need to test them first. | ||||
| 7388 | . | 6V 20W | ||
| 13021R | . | 240/250V 1500W | ||
| A1/4 | . | 24V 100W P28/25 Atlas | New old stock | POA |
| A1/6 | . | 210V 250W P28/25 Mazda | New old stock | POA |
| A1/6 | . | 240V 300W P28/25 Philips 6131C/05 | New old stock | POA |
| A1/7 | . | 115V 500W Philips 6152C/05 | New old stock | POA |
| A1/8 | . | 110V 500W Mazda | ||
| A1/9 DDB |  | 240-250V 750W P28/25 Thorn or equivalent OCa | New old stock | POA |
| A1/58 6158C | . | 240V 1000W | ||
| A1/59 | . | 110V 1000W P28/25 | New old stock | POA |
| A1/59 DFT | . | 240V 1000W P28/25 Atlas - Osram | New old stock | POA |
| A1/165 392N | . | 25V 250W | ||
| A1/167 | . | 240V 150W SCC B15s | New old stock | POA |
| A1/206 | . | 240V 750W G17q | New old stock | POA |
| A1/207 | . | 240V 1000W G17q | New old stock | POA |
| A1/215 ECR 7023 | . | 12V 100W Atlas or 7023 Philips | New old stock | POA |
| A1/216 | . | 24V 150W | ||
| A1/223 EHJ | . | 24V 250W | ||
| A1/230 EFN | . | 12V 75W reflector. Base GZ6.35. Hanimex code 151606-1 | New old stock | POA |
| A1/233 DYR |  | 240-250V 650W Thorn or equivalent OCb | New old stock | POA |
| A1/234 6550 BRJ | . | 15V 150W | ||
| A1/243 4664 | . | 240V 150W | ||
| A1/252 EJL |  | 24V 200W with integral reflector. Thorn or equivalent OCb | New old stock | POA |
| DXX | . | 240V 300W R7s-21 | New old stock | POA |
| ENL | . | 12V 50W | ||
| EL/60 | . | 25V 200W | ||
| FDT 5963 |  | 12V 100W Halogen. Philips OCa | New old stock | POA |
| HLWS 5-A |  | 12V 100W Halogen with adaptor socket. Narva PV24-1.5 OCc | New old stock | POA |
| JC NDK | . | 30V 250W Bipin | New old stock | POA |
| SPECIAL TYPES | ||||
| LAM131 |  | High Pressure Mercury Arc. Ushio Electric USH-102D Typical running conditions 5A at 20V. As used in UV recorders. | New old stock | 4.90 |
| LAM132 | | High Pressure Mercury Arc. 100W Wotan HB0 100W/2 As used in UV recorders. | New old stock | 5.90 |
| LAM137 | . | Xenon 500W Type 98-1005 Thorn EMI | New old stock | 182.00 |
| LAM141 | . | 12V 0.55A APF/CC ML/4650 | ||
| LAM155 |  | 6V 15W SBC with flange. . Exciter M19 Philips 13702G PX22c | New old stock | 4.90 |
| LAM161 | . | 240V 35W SOX. Low pressure Sodium lamp as used in some street lighting. OCb | New old stock | 24.00 |
| LAM163 | . | 240V 375W PP/3/R Reflector Photoflood Photographic lamp with exposure guide. | New old stock | POA |
| LAM208 |
 |
28V
50W Sealed Beam Aircraft Lamp General Electric Type
4589. Part No SC270016-1 Services/NATO REf 1430=99-756-3935 110mm diameter.  Rear view | New old stock Boxes poor | 11.00 |
| LAM211 | . | 24V 200W Pre-focus Airfield Lighting Lamp GEC *Similar to EL/60" | New old stock | 11.00 |
| LAM232 | . | 24V 70W Metal Halide. Lucas 466 | ||
| Tuneon |  | SES Neon Lamp. GEC "Tuneon" type 996-2106. Designed as a tuning indicator or indicator. 12mm diam, 30mm long. | New old stock | 4.00 |
| Linear Quartz Halogen | ||||
| LAM171 P1/8 | . | 30V 250W 10 x 77mm. | New old stock | |
| LAM172 P1/12 | . | 240/250V 1000W 10 x 124mm Atlas | New old stock | |
| LAM173 | . | 240/250V 1000W 10 x 190mm. Osram Probably unused, tested | Ex equip | 2.00 |
| LAM174 P2/12 | . | 240/250V 1250W 10 x 190mm Atlas. | New old stock | |
| LAM176 | . | 240/250V 1500W 10 x 254mm Tasley or Philips 13021R | New old stock | |
| LAM177 JPD | . | 240/250V 1500W 25 x 142mm | New old stock | |
| Photographic Lamps | ||||
| LAM315 | P1/1 Photoflood 240V 375W E27 ES base | New old stock | ||
| PF 318Argaphoto E/49 Reflector Lamp 240V 500W E27 ES base | New old stock | |||
| Other | . | Other types - I may have a very few of others. Please ask and I can look. More projection types to be listed. | ||
| BULB HOLDERS and Indicators | ||||
| MES E10 LAMPHOLDERS | ||||
| LH203 |  | Lamp Holder MES. Bare PCB holder. Solder tags for board mounting. | Old stock | 0.40 |
| LH208 |  | Arcolectric Transformer Lamp. Operates a 6.5V 0.15A bulb with an integral transformer for 200-250V 50Hz. Two only remaining. One with red and one amber lens available. Farnell 140-286 and 140-284. 30mm diameter, 90mm overall. | Old stock | 15.00 |
| LAMP HOLDERS - VARIOUS | ||||

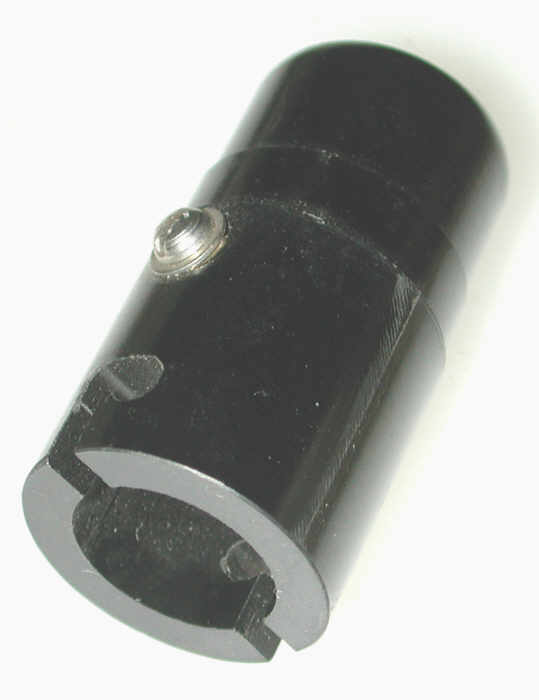

| LH211 |
 |
Lamp Holder SBC
Bulgin.
24mm diameter body 55mm long. Heavy black plastic. As used in indicator lamp assemblies, with two side screws. | New Old stock | 3.30 |
| LH212 |
 |
Lamp Holder SBC
Ashley.
24mm diameter body
44mm long. Pendant use with wire grip. Dark brown. |
New Old stock | 3.30 |
| LH226 |  | Midget Flange Lamp Holder. Panel Mounting for 12.6mm diameter hole. Lens 18 mm diameter. 32mm overall. | New old stock | 3.30 |
| LH228 |  | Panel Lamp with Holder. 6V 70mA. 7.1mm flange, 4.8mm panel hole. With wires. | New old stock | 1.90 |
| LH265 |  | Clip in open fronted indicator with neon lamp and 100k series resistor. Clips into a 28 x 22 mm panel hole. | New old stock | 0.20 |
| LH266 |  | Neon Indicator Crabtree 2491. 240V ac
with bulb. For Rockergrid Mains switches and equipment. 50 x 25mm wide, 28mm deep. 33 x 16mm bezel. | New old stock Boxed | 1.90 |
| LH268 |
 |
Neon Indicator For use with external
resistor 12mm square with 29mm long, 10mm diameter body. 700mm long leads. | New old stock | 0.50 |
| SERVICES STYLE ITEMS | ||||
| LH303 |  | Panel Wedge Lamp Holder 10-FHR58/4. PO and services pattern. 73mm deep, 50mm behind panel. Plain or Grey as available. For PO lamp No. 2 to BS 1050. | Ex Equipment | 3.80 |
| LH304 |  | Dimmable Panel Lamp Holder with Switch. Orange lens with variable slit operated by rotation of knob which on pressing operates a momentary contact. One only. ?used. 12.6mm panel hole, 61mm long. | Used? | 7.70 |
| LH305 |  | Panel MBC Lamp Holder. NATO stock no. 6210 99 580 1731. 19mm bezel diameter, 16mm panel hole, 36mm overall in length. | Unused | 7.80 |
