ELECTROJUMBLE

CAPACITIVE  COMPONENTS

Home Up Resistive Fixed Caps Inductive Variable Caps

For purchasing information, please see Information page

Cat No.

Click images for larger pictures

Description Condition Price

GBP

CAPACITORS    Fixed, Ceramic, Mica, Paper, PlasticPolystyrene, Electrolytic, Variable, Trimmers, Tuning Varicap
HIGH VOLTAGE CAPACITORS  >1kV  (some other values may be available)

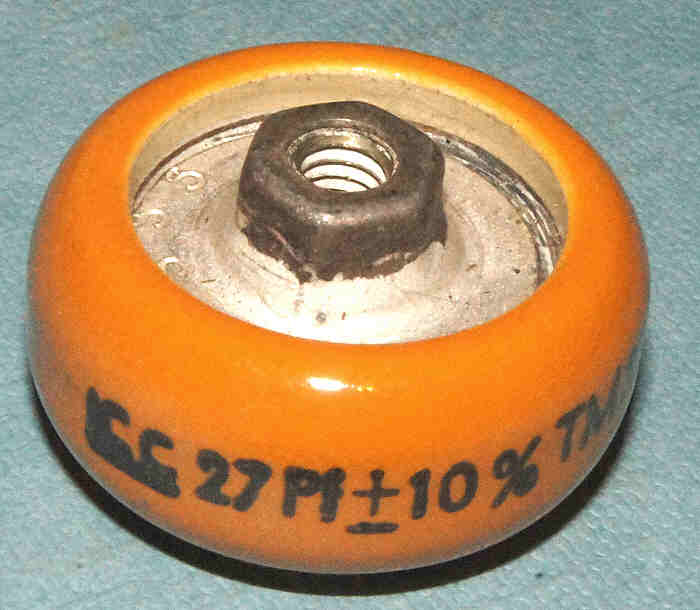

CC007 Capacitor 27pF +10% 7.5kV  TM30
28mm diameter, threaded both sides 2BA
Unused
old stock
7.00

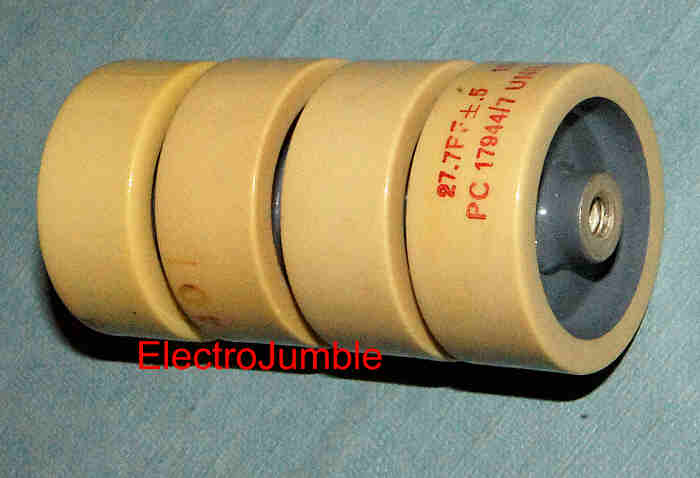

CC009 Capacitor 27.7pF +0.5pF 15kV
31mm diameter, 65mm long threaded both ends 2BA
Unused
old stock
14.00

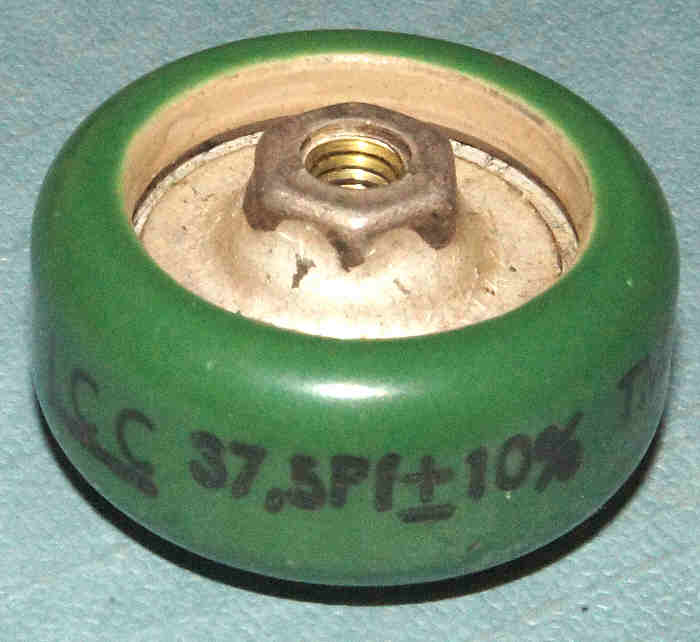

CC011 Capacitor 37.5pF +10% 7.5kV  TM30
28mm diameter, threaded both sides 2BA
Unused
old stock
7.00

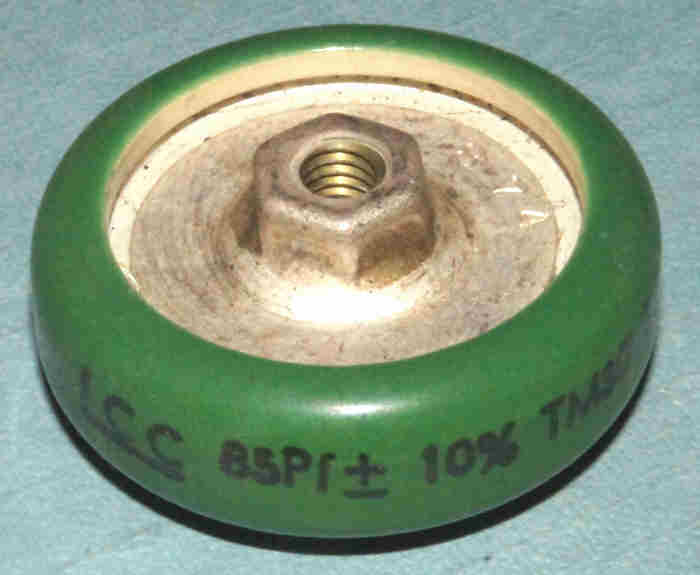

CC013 Capacitor 85pF +10% 7.5kV  TM30  (Also 116pF)
40mm diameter, threaded both sides 2BA
Unused
old stock
9.00

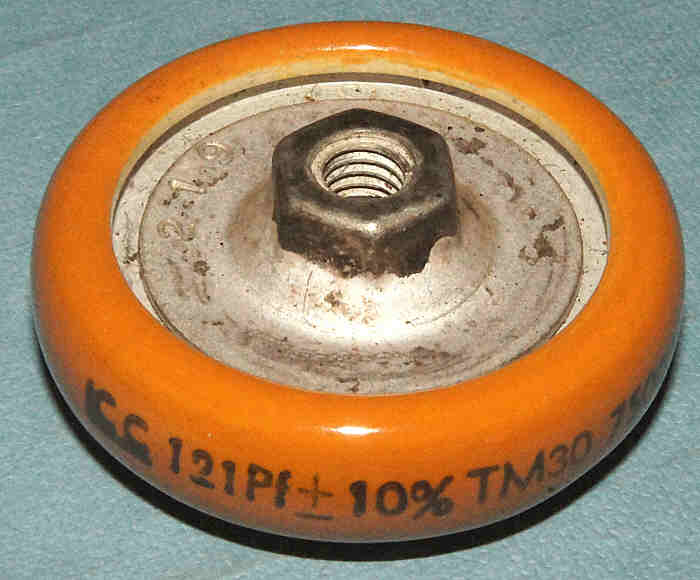

CC014 Capacitor 121pF +10% 7.5kV  TM30   (Also 150pF)
40mm diameter, threaded both sides 2BA
Unused
old stock
9.00

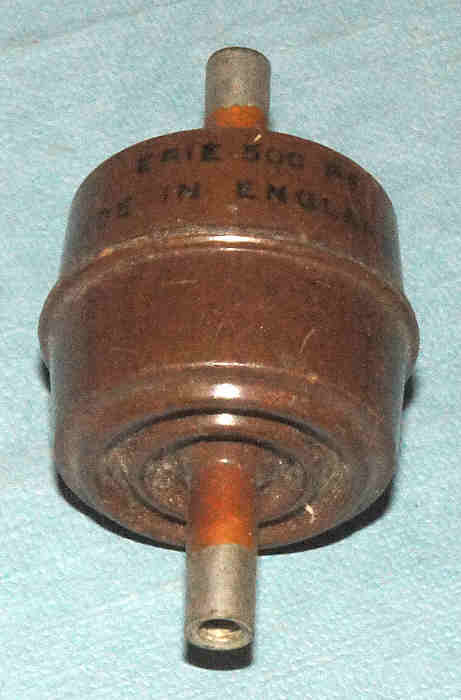

CC016 Capacitor 500pF nominal,  Erie  Voltage not marked
27mm diameter, 50mm long overall
Unused
old stock
9.00

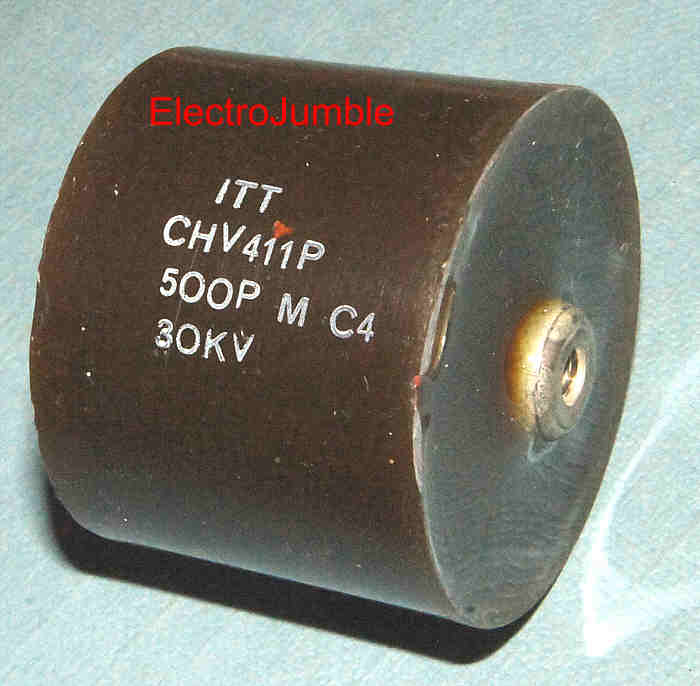

CC018 Capacitor 500pF 30kV ITT CHV411P
37mm diameter, 30mm long
Unused recent
stock
15.00
CC019 Similar to CC013, black Capacitor 6800pF +40/-20% 3.5kV peak dc or rf  CZ5387
43mm diameter, threaded both sides 2BA
Unused
old stock
9.00

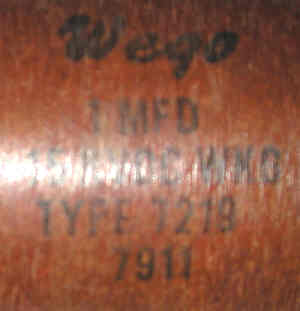

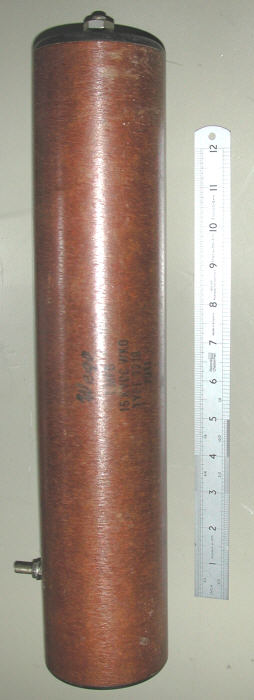

CC021

1µF 15,000V Wego type 7219.
425mm overall length, 80mm diameter, approx 3kg.
Unused old stock. Insulation test on a sample gave 40M ohms at 1kV.
Unused old stock 19.00

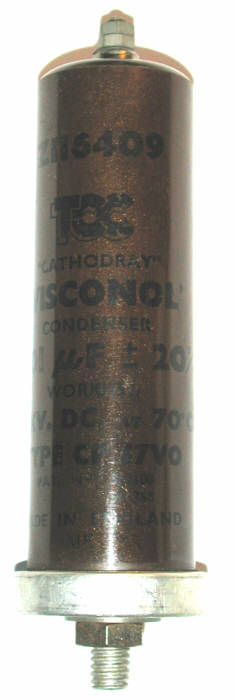

CC033 0.01µF  TCC Capacitor 10kV working at 70oC.  Type CP57VO
"Visconol "Cathode Ray"  Z116409
35mm diameter x 150mm.
Unused old stock 12.00

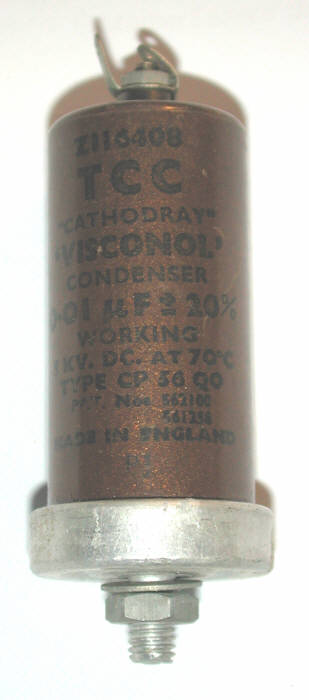

CC034 0.01µF  TCC Capacitor  5kV working at 70oC.  Type CP 56QO
"Visconol "Cathode Ray"  Z116408
25mm diameter x 80mm.
Unused old stock 6.00

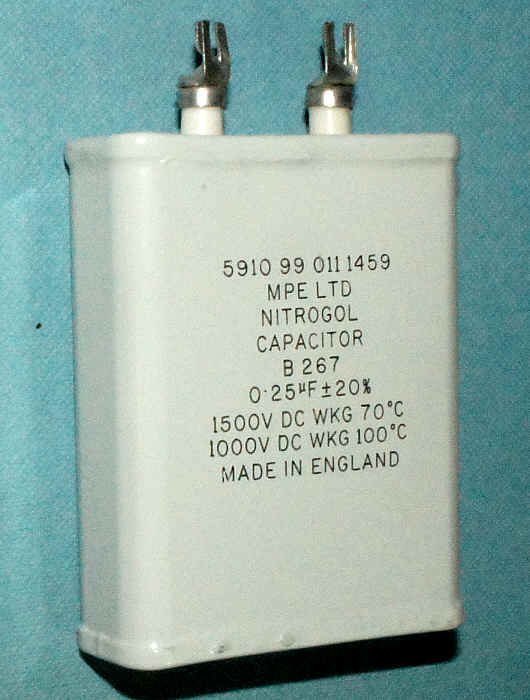

CC042 0.25µF +20%  Capacitor    1.5kV DC at 100oC, 1kV at 70oC. MPE Ltd B267
"Nitrogol".  Military Grade Paper in Oil Capacitor. "PIO".  5910-99-011-1459
50 x 75 x19mm  Ceramic Terminals.  Two used only remaining.
Used 4.00

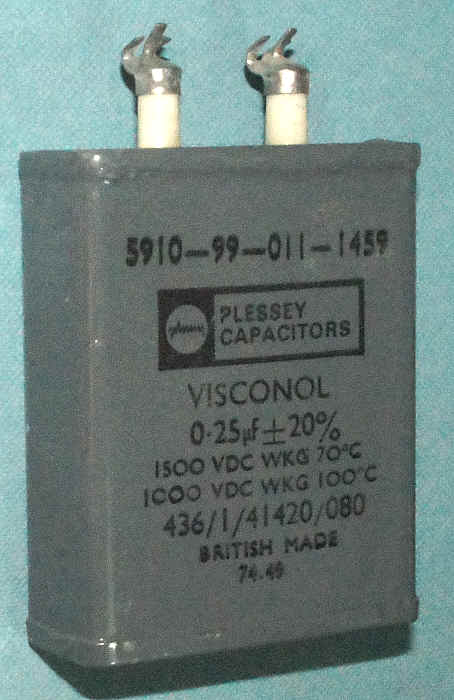

CC043 0.25µF +20%  Capacitor    1.5kV DC at 100oC, 1kV at 70oC. Plessey 436/1/41420/080
"Visconol".  Military Grade Paper in Oil Capacitor. "PIO".  5910-99-011-1459
50 x 75 x19mm  Ceramic Terminals.  One only left.
Unused old stock 6.00

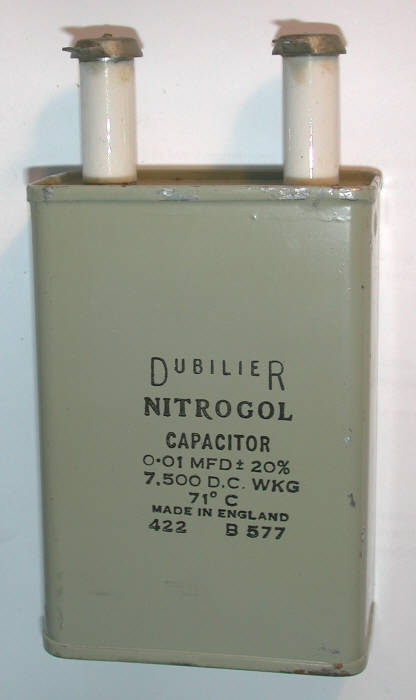

CC046 0.01µF  Dubilier Capacitor  7.5kV working at 71oC
"Nitrogol".  Military Grade Paper in Oil Capacitor. "PIO".
Sealed metal cased.    75 x 40 x 145mm
Unused old stock 12.00

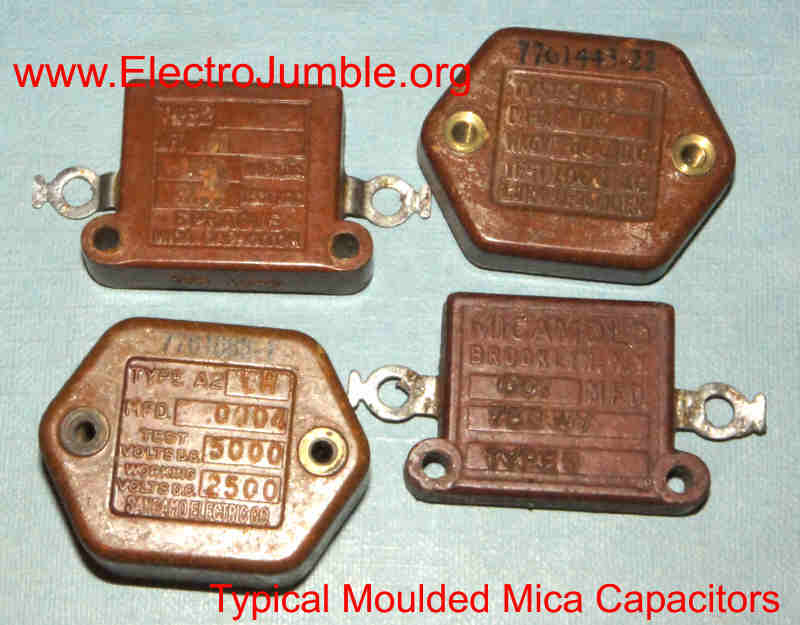

CC068 Large Moulded Mica Capacitors.   Typically from 0.001µF to  0.05µF and up to 2500V. Used 0.50
to
2.00
MEDIUM VOLTAGE CAPACITORS.  Paper-in-Oil CapacitorsPlastic Capacitors <1kV

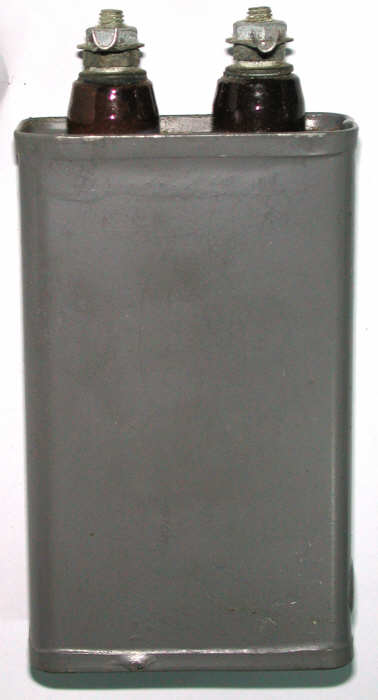

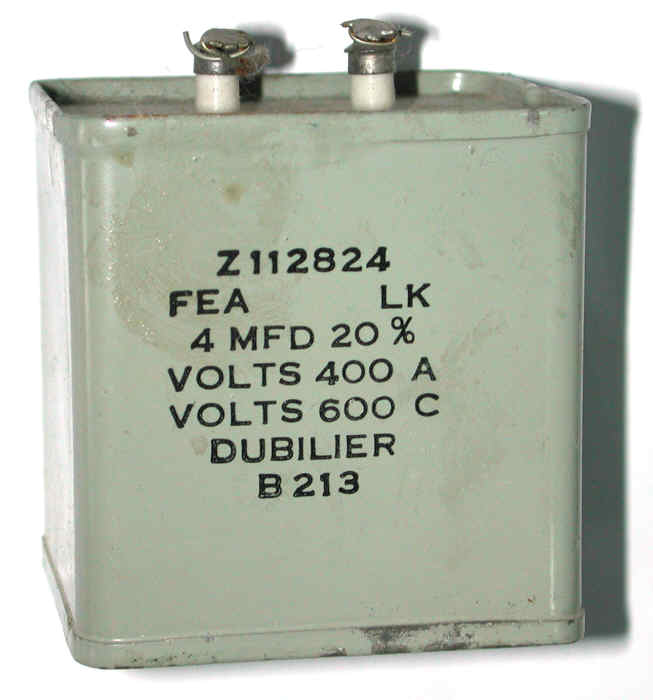

CC106 4µF 400/600V. Dubilier Paper in Oil.   Sealed metal cased. Ex Equipment 19.00

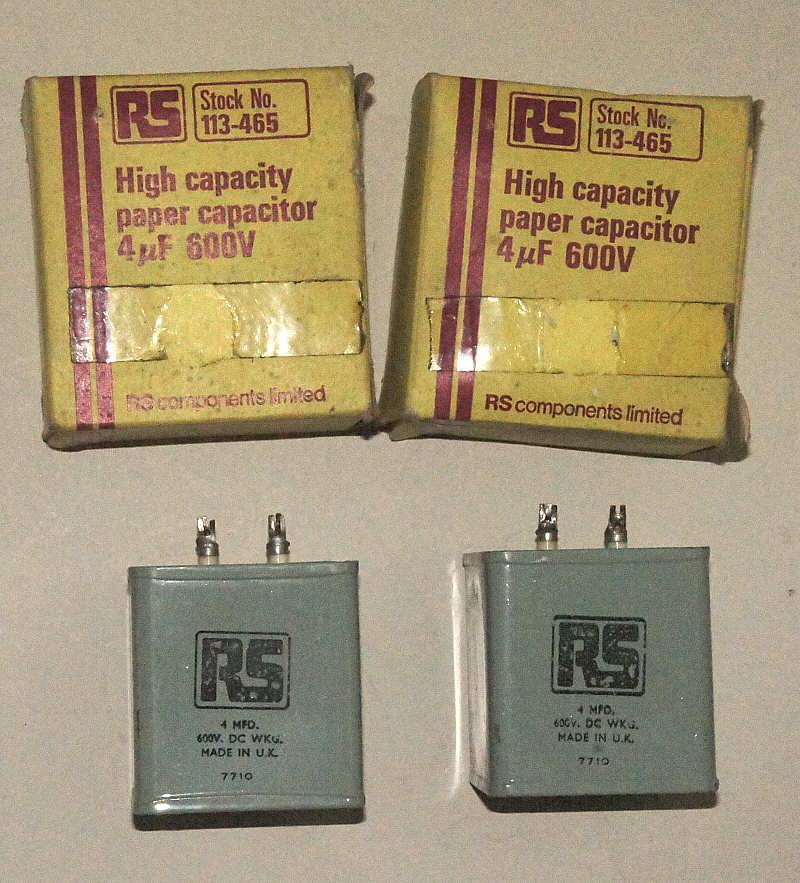

CC106A 4µF 400/600V. Dubilier Paper in Oil.   Sealed metal cased.
Pair of Original RS Components, boxed.
Unused old stock 65.00
pair

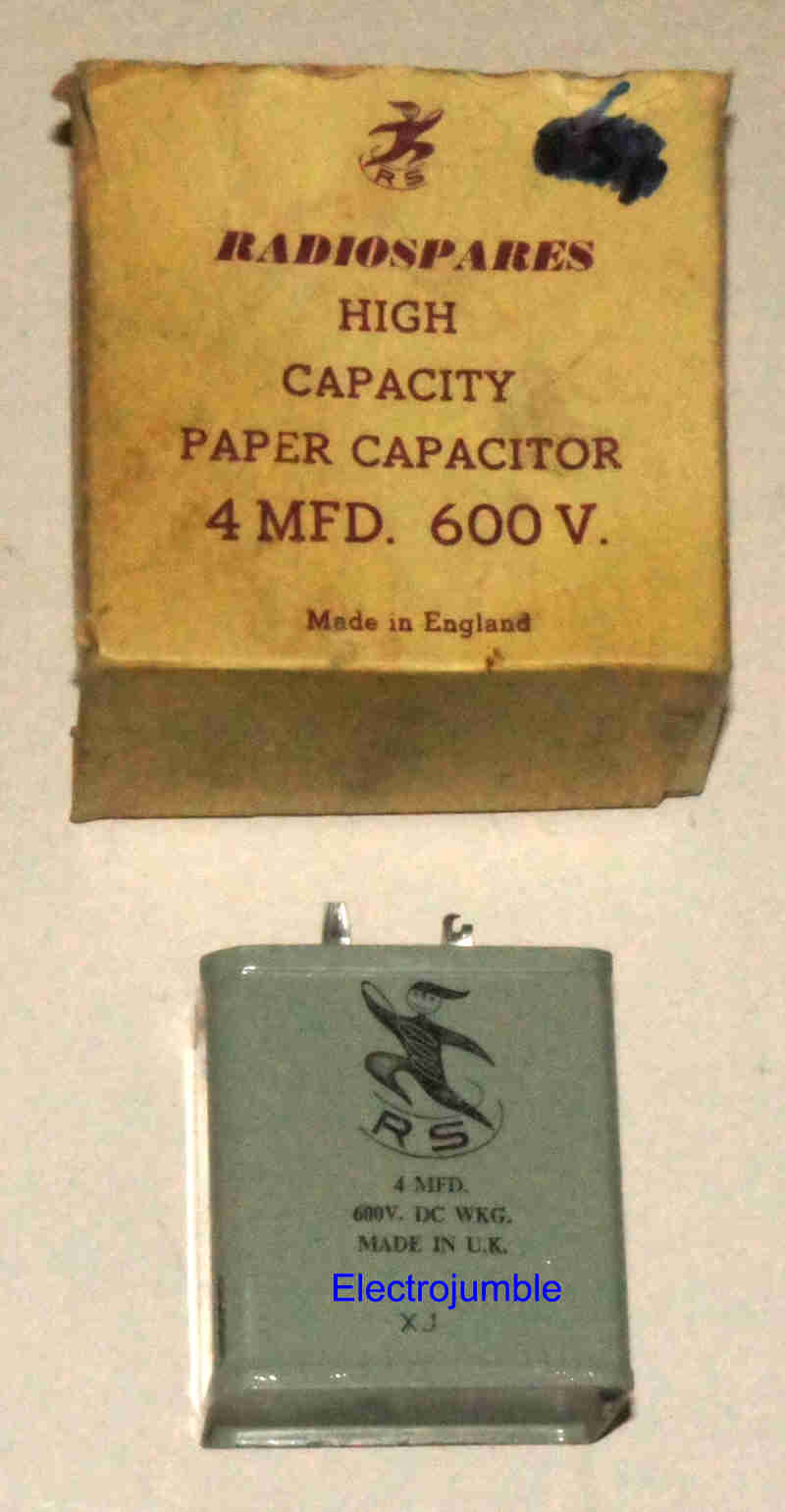

CC106B 4µF 400/600V. Dubilier   Paper in Oil.   Sealed metal cased.
Original RS Components, "Running Man" boxed.
Unused old stock 55.00
CC107 4µF 600V Industrial Condenser Corp.  Paper in Oil.   Sealed metal cased. Unused old stock 17.00
CC109 . 4µF 200V 70C  Sealed metal cased.  TCC CP144H  Visconol 5910-99-011-2883.
With mounting clips
Used 9.00
CC121

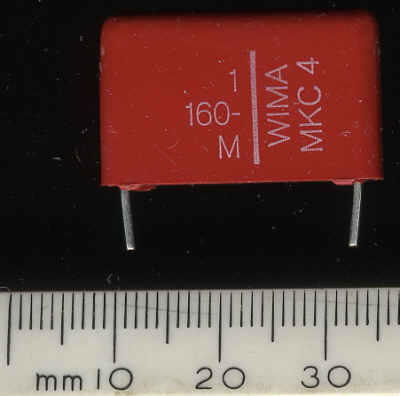

1µF 160V WIMA MKC4.  26 x 7 x 17mm. Unused old stock 0.40

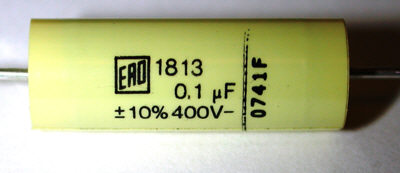

CC123 CAP_0-1_400V.jpg (13260 bytes) 0.1µF 400V Metallised Polyester.  Very low leakage -  suitable for general replacement. Small body size (7mm diameter and 18mm long) permits including inside original capacitor shells to retain authentic appearance. New Stock 0.39

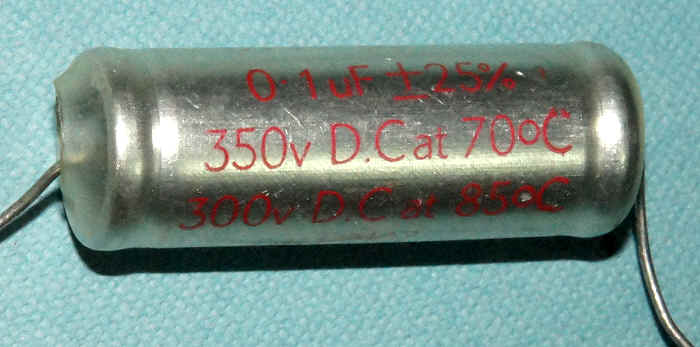

CC125 0.1µF 350V at 70oC.  Hunts Vintage 1970-1972 Military Type.
Metallised, Axial leads.  5910-99-011-5562. B512KZ.  13mm diameter 37mm long.
Because of age leakage will be higher than modern types.
Unused old stock 0.70

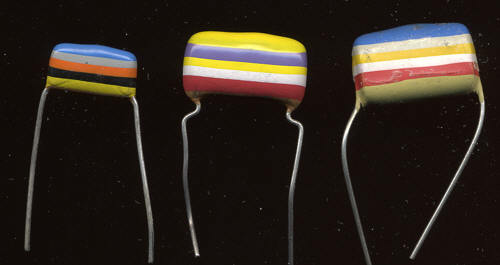

CC130x TropFish_a.jpg (16171 bytes) Tropical Fish Capacitors Mullard type C280 - a few available.
Data Sheets - see hereSee Tech Data Page for Colour Codes
New Old Stock 0.30 to
0.90

For identification here is a picture of some of the more common Mullard Capacitors.

The C280 - is often called "tropical fish"

The C296 - is often called Mustard.

There are sometimes a few available.

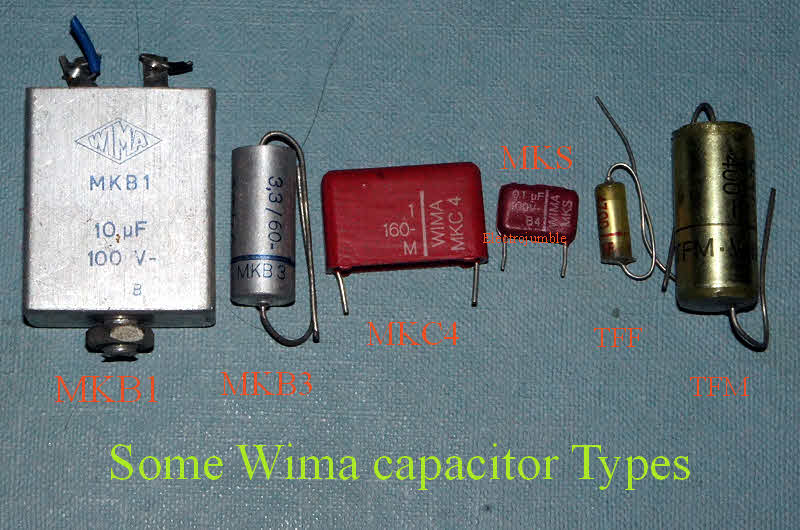

For identification here is a picture of some of the more common Wima Capacitors.


There are sometimes a few available.
POLYSTYRENE CAPACITORS

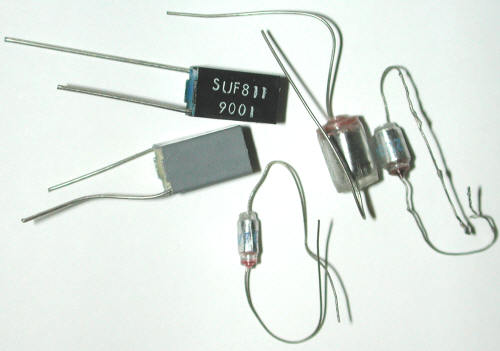

CC160x Polystyrene Capacitors.   Many values available.  I can also supply exact values selected or made up from paralleled pairs.  Accuracy better than + 1%. New Old Stock 0.10 to 0.70 each
CC162


Polystyrene 33nF  (0.033µF) + 2.5% 160V.  Leads may be slightly tarnished but clean easily.  (These were ex Ferrograph works stock).  Unused old stock.  Leads  slightly   tarnished. 0.10
50 for 2.00

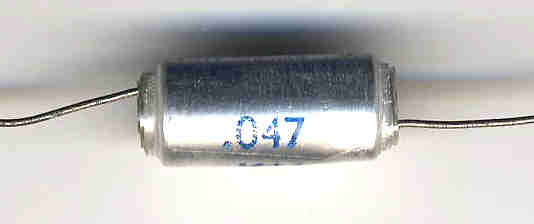

CC163 Polystyrene Capacitor 47nF  (0.047µF)  400V.  Leads may be slightly tarnished but clean easily.  8mm diameter x 19mm long body. Unused old stock 0.25

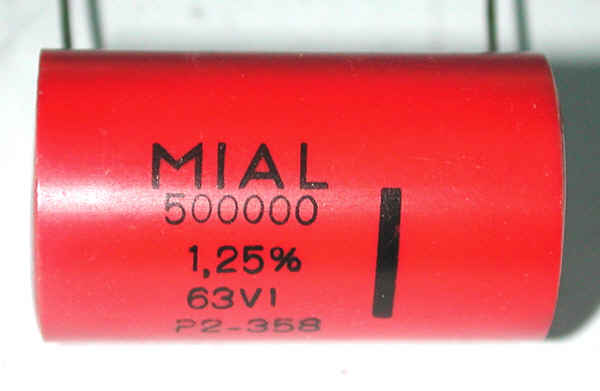

CC170 0.5µF 63V Polystyrene Capacitor. Mial F2-358 +1.25%.
Very low loss type for integrators & precision use.  33mm long, 19mm diam.
Unused old stock 4.30

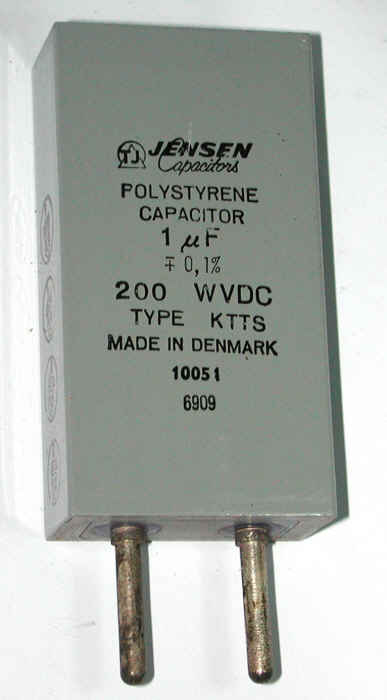

CC178 1.0µF 200V Polystyrene Capacitor. +0.1%. Jensen type KTTS.
40 x 20 x 75 + 25mm pins, spaced at 19mm.
Unused old stock 4.90

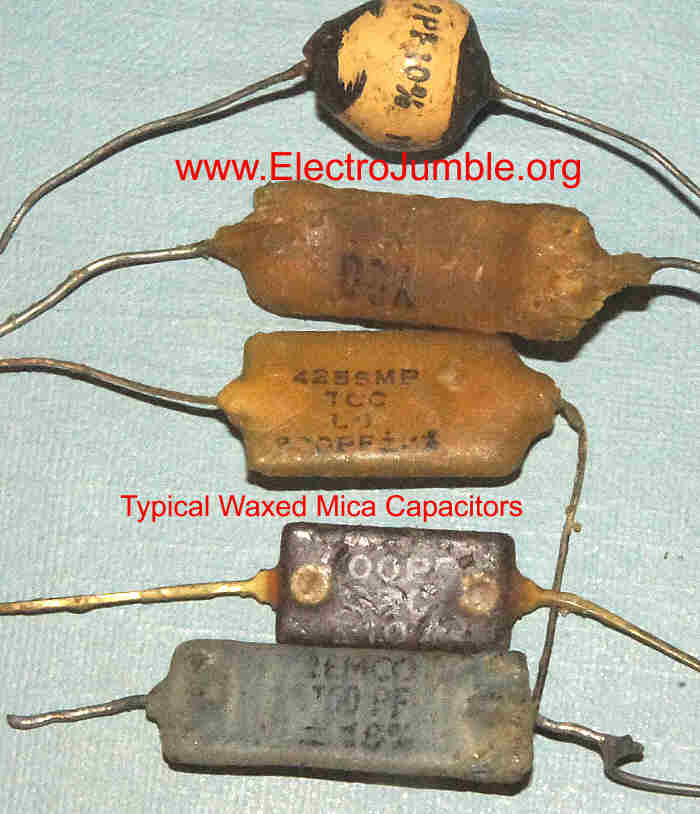

CERAMIC CAPACITORS and MICA CAPACITORS
CC18XA
Various types available -  NOS and old design capacitors.
From 20pF to 1000pF, typically 200 to 350V
Used and
Unused


20 assorted
0.20
to
0.70

2.00
CC18XB Various types available.
From 20pF to 1000pF, typically 200 to 350V
Used

20 assorted
0.40

2.00
CC18XC Various types available -  NOS and old design capacitors.
From 20pF to 10,000pF, typically 200 to 350V
Used and
Unused


20 assorted
0.20
to
0.70

2.00

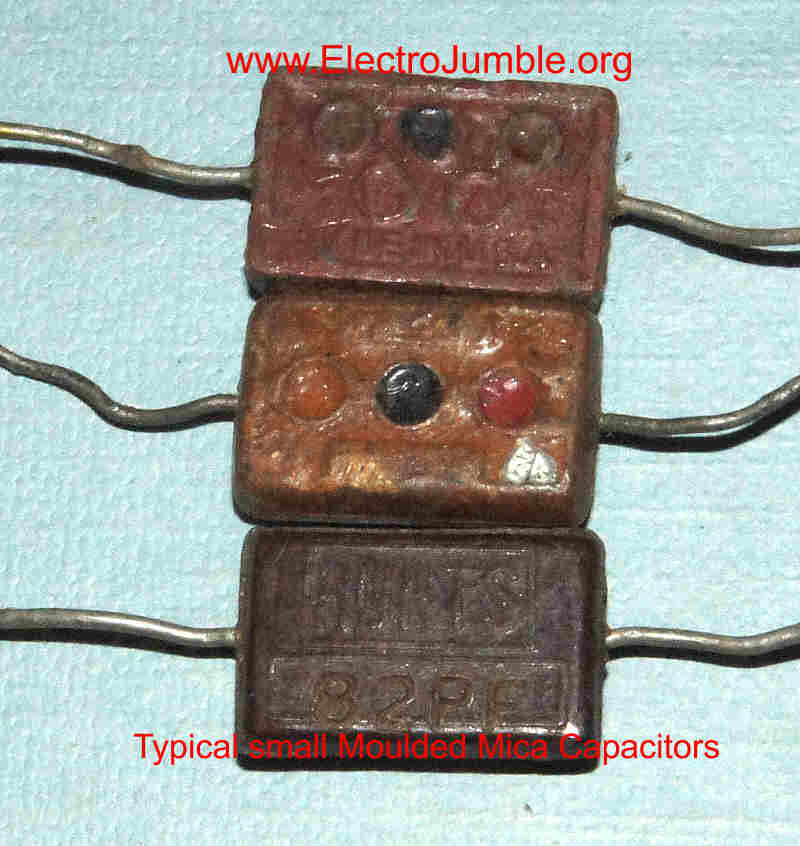

CC184 200pF Mica Moulded  + 5%  + 100ppm/o C Unused old stock 0.30

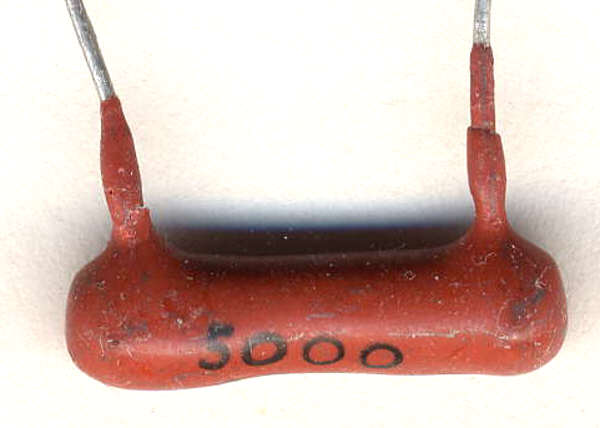

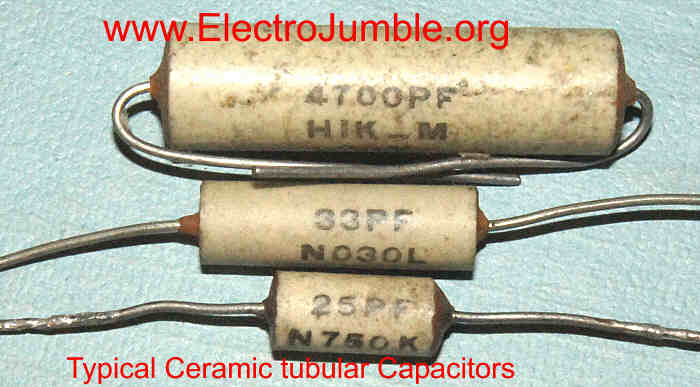

CC187 5000pF Ceramic Tubular -red  500V.    Lemco type 316K.
4.5mm diam x 17mm long.   40mm leads
Unused old stock 0.10

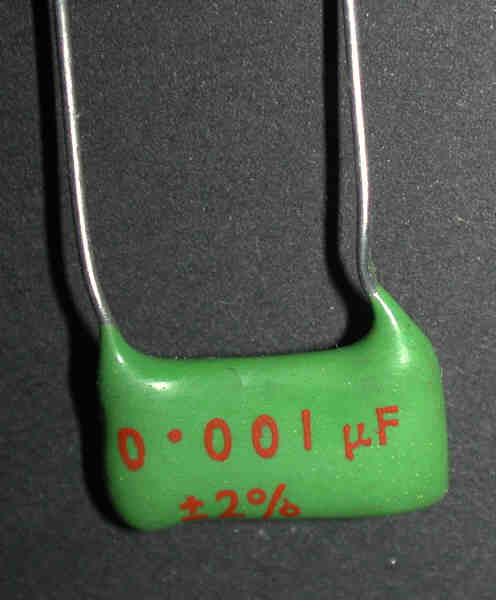

CC192 1nF Mica 350V   14x8x3mm Unused old stock 0.30
ELECTROLYTIC CAPACITORS

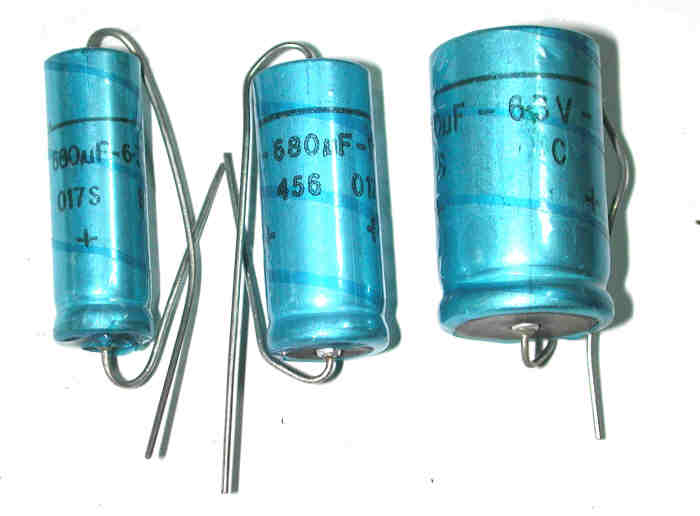

CC210x Vintage Mullard and RS (Radiospares)  Electrolytic Capacitors.  Will be ESR tested and reformed if necessary.
Various values available from 6 to 450V working.  See pdf list of available Mullard and other types HERE
Unused old stock From 0.50

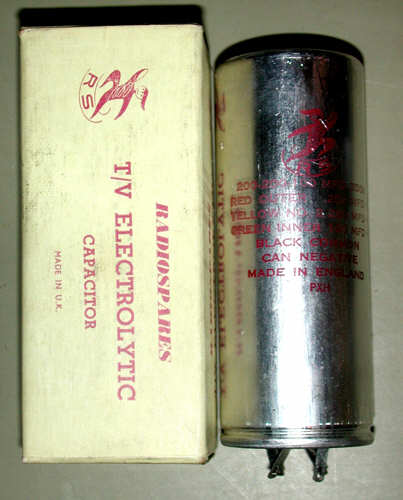

CC251


100 + 200 + 200µF  350V Electrolytic.  Reformed and tested. Unused Radiospares TV Electrolytic.
Can is 45mm diameter x 110mm high.  Original box.
New Old Stock 9.00

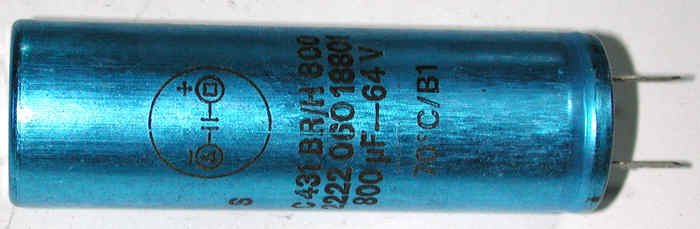

CC254 800µF 64V Electrolytic. Type C431. Will be tested/reformed. 80 x 25mm diam. Unused old stock 0.90
