RESISTIVE COMPONENTS R
For purchasing information, please see Information page
| Cat No. | Click images for larger pictures |
Description | Condition |
Price
GBP |
|---|---|---|---|---|
| RESISTORS Fixed, Variable, Potentiometers, Non-linear. | ||||
| Low-Power Resistors | ||||
|
I have been researching the range of vintage
carbon resistors and metal film resistors. Please see the multi-page pdf which details more than 150 types giving ratings and sizes. Information is scarce for many manufacturers and is sometimes apparently conflicting. This can arise, for example, when sizes are quoted as either typical or maximum and when data changes through the product manufacturing life. Also colours are not consistent and marking styles can change. Power ratings are mostly given for free air at 70C, but de-rating figures are not always available. The power rating also depends on stability and reliability requirements. See HERE for the pdf. I would be grateful for any corrections or further data so as to provide best accuracy. I shall also be adding photographs later as a better means of identification. |
||||
| R0140 |
|

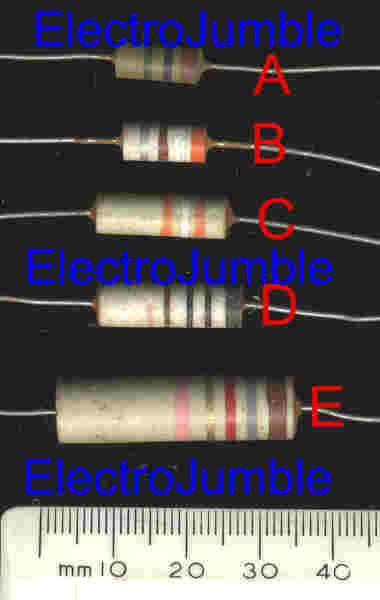

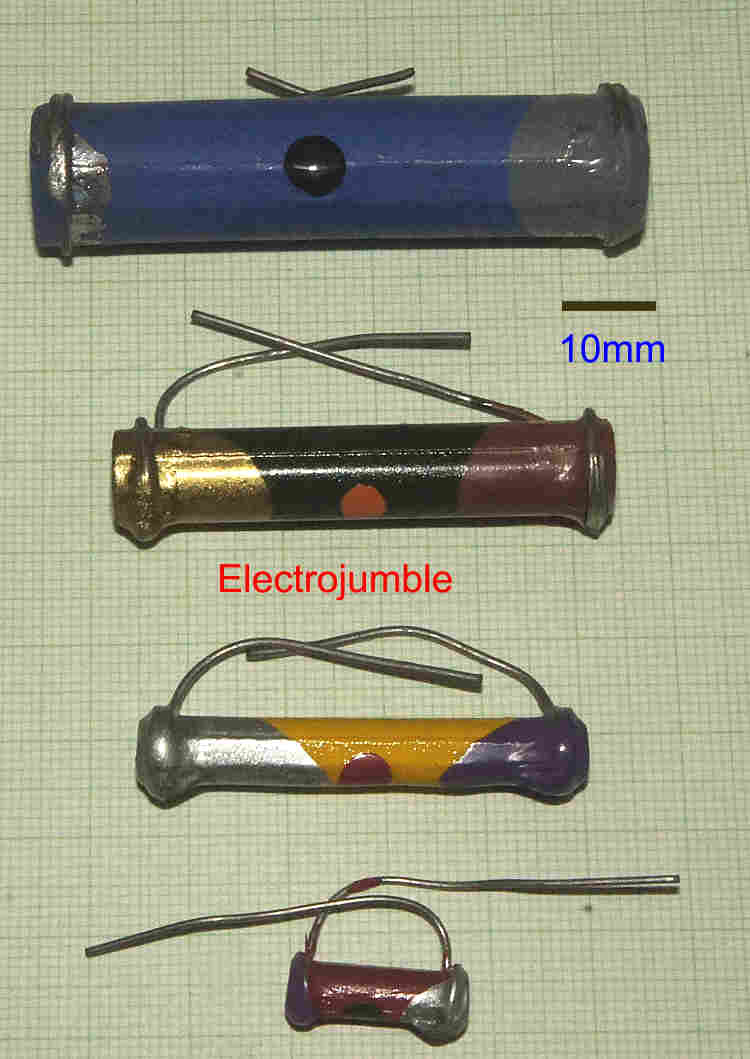

Vintage Erie Resistors
- Carbon Resistors. A Few available for vintage rebuilds and replicas |
Unused old stock Used |
Ssee eBay |

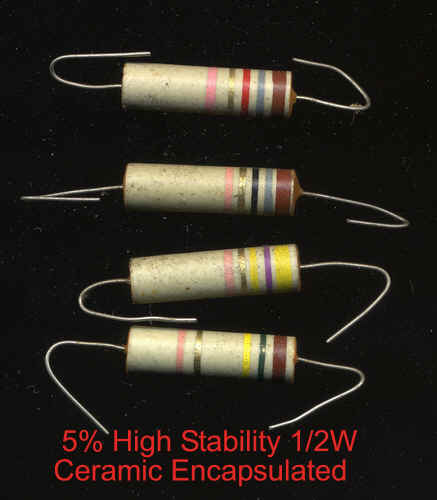

| R0170 | . | Vintage Piher Resistors 0.25W. Also issued as RS High
Stability. Many
values available. |
Unused | 0.70 to 2.00 |
| R0171 | . | Vintage Piher Resistors 0.5W. Also issued as RS High Stability. Many values available. | Unused | 0.70 to 2.00 |
| R1040 |
|
Vintage
High Stability Erie Resistors - Carbon Resistors. 0.5W Services rating, Ceramic Cased 5% tolerance high stability. Body 33mm long, 9mm diameter. Not all values available. Please ask. |
Unused old stock |
1.75 each |
| R1050 |
 |
Vintage Erie Resistors - Carbon Resistors. Ceramic cased. See HERE (pdf) for types, sizes and ratings of the Erie range. Some available but only in some values limited values. Also some used available. Note that the actual resistance of these vintage resistors will often be outside the marked tolerances. Typically changes of +20% are to be expected. It is therefore possible to use alternative marked values to achieve the required ohmic value. |
Old stock Used Unused |
Ssee eBay |
| R1260 |
 |

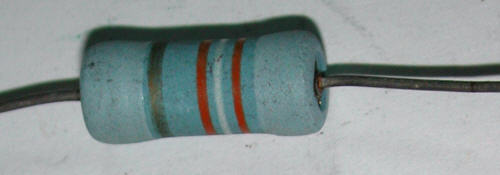

Resistors Metal Oxide 2W. | Unused old stock | any 5 for 0.50 |
| R1261 | . | Resistors Metal Oxide 1W. | Unused old stock | any 5 for 0.40 |
|
R1580 |
 |
Very High Value 1600 M ohm only. | New old Stock | 0.90 |
| R1000 | Many other small resistors
available, Carbon film resistors, Solid Carbon Resistors, Metal Film,
Mullard, Allen and Bradley, Electrosil, Philips, ITT, RS, Piher, Welwyn, etc
Happy to search. Special values made up. High Stability resistors. 1/8 to 2W. |
|||
|
Wire-Wound and Power Resistors Many types available new and used.
Welwyn, RS etc
|
||||
| R2010 |
 |

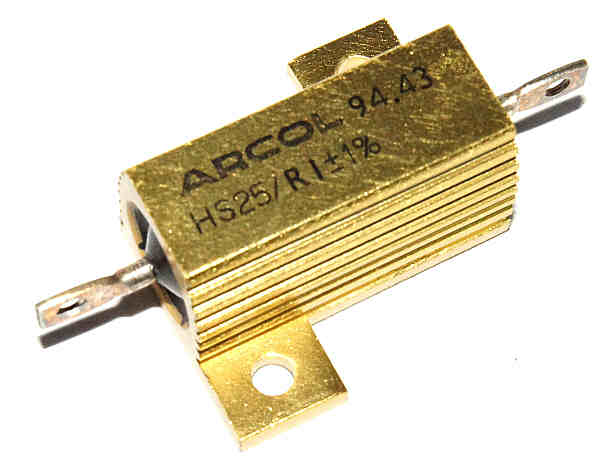

0.1 ohms +1%. Resistor Aluminium Clad
Wire wound up to
25W
when mounted on a 4.2oC/W heat sink.
12W in free air.
Arcol type HS25. Body 27mm long. Current Sense Resistor, for up to 10Amp without the use of a heat sink. Ideal for current monitoring with low voltage drop. |
New old Stock | 0.25 5 for 1.00 |

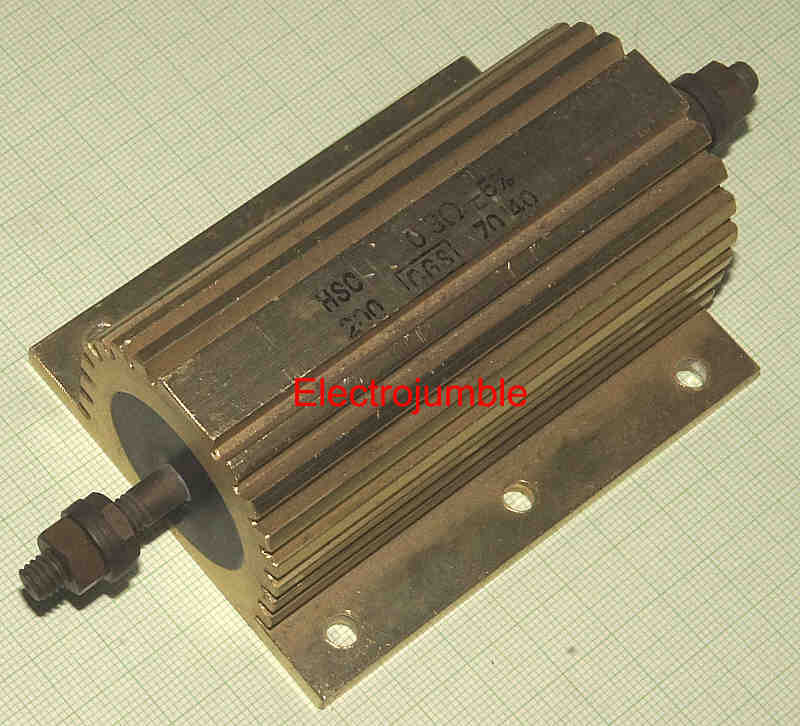

| R2022 |
 |
0.3 ohm +5% Resistor Aluminium Clad Wire
wound up to
200W
CGS Type HSC200 Body 90mm 70mm wide, 45mm high |
Used? | 3.70 |

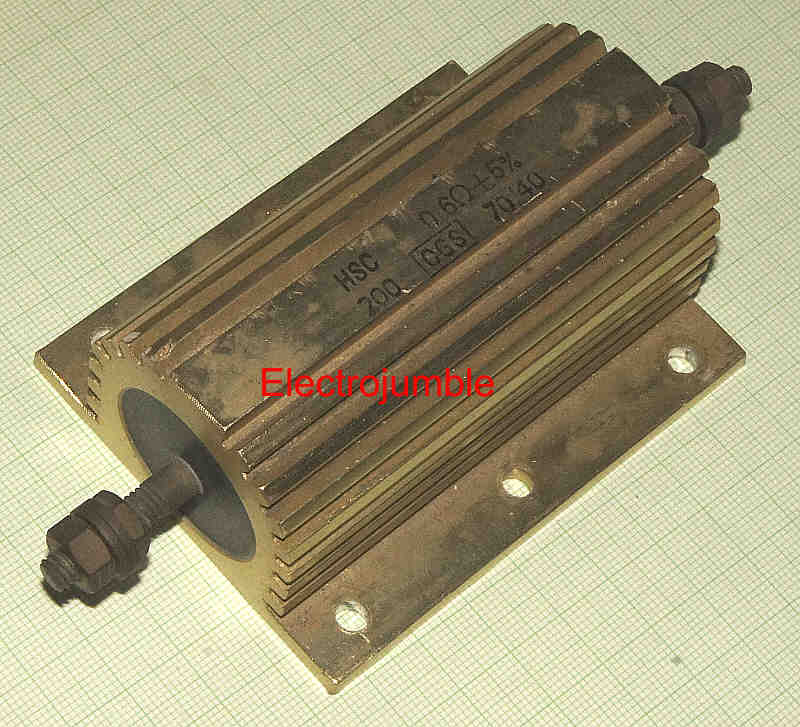

| R2024 |
 |
0.6 ohm +5% Resistor Aluminium Clad Wire
wound up to
200W
CGS Type HSC200 Body 90mm 70mm wide, 45mm high |
Used? | 3.70 |
| R2070 |
 |
5.6 ohm +5% Resistor Aluminium Clad Wire wound up to 50W when mounted on a 3oC/W heat sink. 20W in free air. CGS Type A50 | New old Stock | 0.70 |

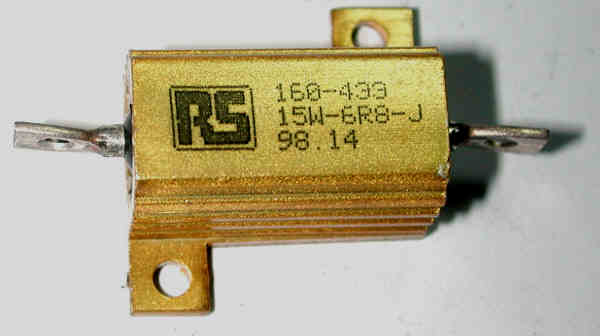

| R2100 |
 |
6.8 ohm
Resistor Aluminium Clad Wire wound up to 15W
when mounted on a 5.4oC/W
heat sink.
8W rating in free air. 20 x 11 x 11mm. RS Stock No. 160-433 Manufacturer Arcol Manufacturers Part No. HS15 6R8 J. |
New Bagged | 0.40 |
| R2140 |
|

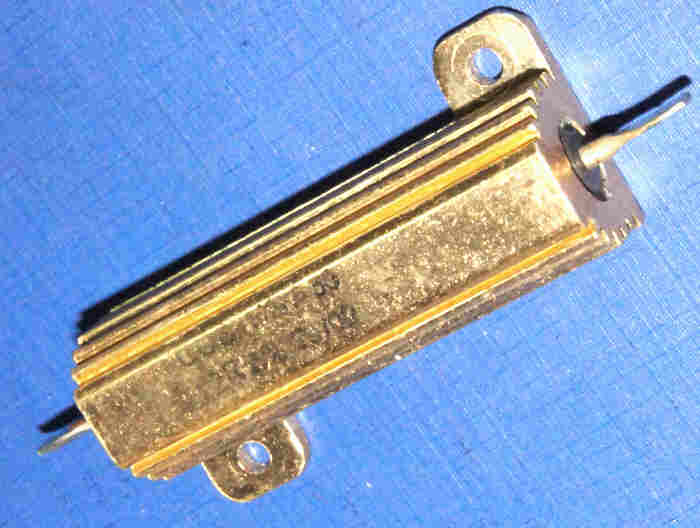

22 ohm +5% Resistor Aluminium Clad Wire wound up to 50W when mounted on a 3oC/W heat sink. 20W in free air. CGS Type A50 or RS 158-345 | New old Stock | 0.70 |
| R3170 |
 |
1800 ohm
+5%
7W Wire-wound ceramic vertical. Vitrohm type 210. 38mm long, 7mm square |
New old Stock | 0.40 |
| R3210 |
 |

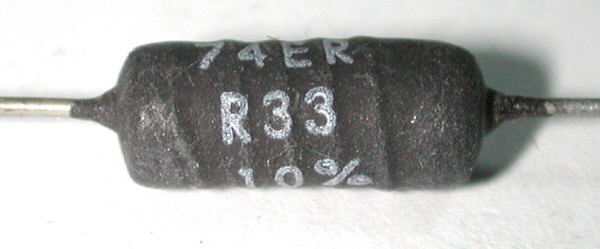

0.1, 0.22, 0.33 and 0.47 ohm. 2.5W.
Resistor Wire wound. .
RS or equivalent. Ceramic former silicone coated.
12mm long x 5mm diameter. RS type 151-518 151-530, 151-546. |
New old Stock | 0.50 |
| R3240 |
 |
1.2 ohm. 5% 2W

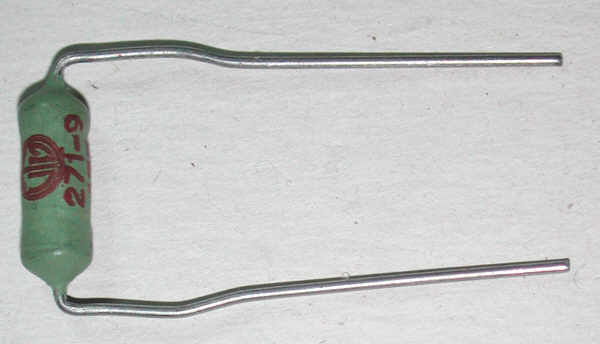

Resistor Wire wound. VTM type 271-9. 12mm long x 4.6mm diameter. Formed leads 15mm spacing. |
New old Stock | 0.12 10 for 1.00 |
| R3250 |
|
1.5 ohm. 5% 2W
Resistor Wire wound. VTM type 271-9. 12mm long x 4.6mm diameter. Formed leads 15mm spacing. |
New old Stock | 0.12 10 for 1.00 |
| R3270 |
 |
6 ohm. 30W Resistor Wire wound. Arcol 55mm long on 15mm diameter ceramic tube. with mounting brackets. |
Unused old stock | 1.80 |
| R3320 |
|
47k
+5% 12W. Resistors Wire wound. Z244150
or equivalent. 12W commercial rating, 6W services A few other values available at various prices |
Unused old stock | 0.40 |
| R3330 |  |
56k +5% Resistors Wire wound . 5905-99-011-4678
or equivalent. 12W commercial rating, 6W services rated A few other values available at various prices |
Unused old stock | 0.40 |
| R3423 |
 |

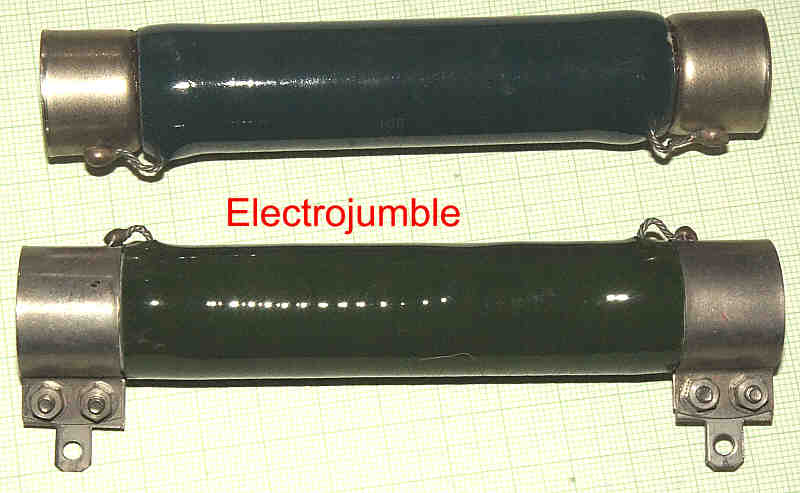

2 ohm 30W +5% Ceramic wire-wound. 120mm long 22mm diameter . |
Used? | 3.00 |
| R3430 |
|
4 ohm 50W Ceramic wire-wound. 90mm long, 20mm diameter. |
Unused old stock | 1.55 |
| R3435 |
|
10 ohm 30W +5% Ceramic wire-wound. 120mm long 22mm diameter . |
Used? | 3.00 |
| R3440 |
 |
22 ohm 15W +5% Ceramic wire-wound. 75mm long 12mm diameter . |
Unused old stock | 3.50 |
| R3450 |
 |
68 ohm 150W +5% Ceramic wire-wound. 245mm long 28mm diameter . |
Unused old stock | 7.50 |
| R3453 |
 |

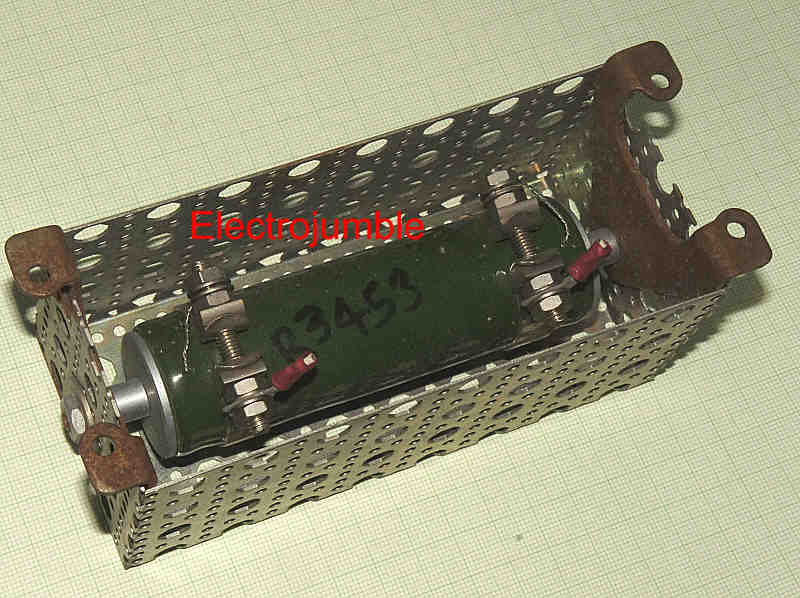

100 ohm 90W +5% Ceramic wire-wound. Berco 100mm long 30mm diameter in enclosure. |
Used | 4.50 |
| R3458 |
 |

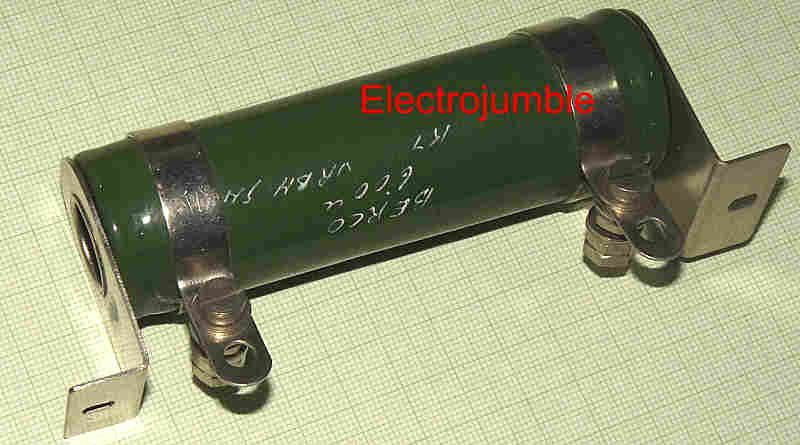

600 ohm 90W +5% Ceramic wire-wound. Berco 100mm long 30mm diameter . |
Unused old stock | 4.50 |
| R3460 |
 |
1000 ohm 75W +5% Ceramic wire-wound. 120mm long 20mm diameter . |
Unused old stock | 5.50 |
| R3460 |
 |
1750 ohm 20W +5% Ceramic wire-wound. Zenith
103P-141 120mm long 20mm diameter . |
Unused old stock | 3.80 |
| R3760 |
 |
100 ohm 3W Resistors Stand-off Welwyn. 21mm long x 9mm diameter, 20mm legs. |
Unused old stock | 0.70 |
|

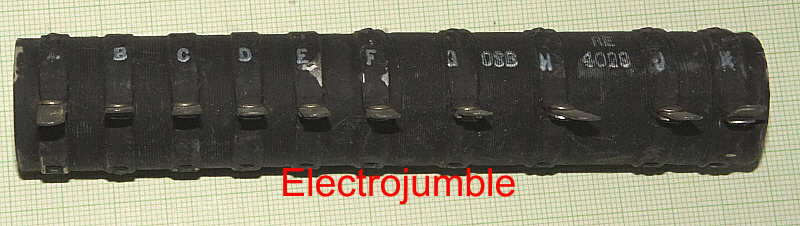

Mains Droppers and Multi-section Power Resistors designated
for voltage dropping in radio and television receivers. Many available - please ask - listings ongoing! See also below in the RV sections |
||||
| RD1270 |
 |
RS type R26 renamed 154-955. 3
separate sections 56+1000, 47,12 ohms 23mm diameter, 140mm long. 1 only boxed |
Unused old stock | 5.50 |
| RD1274 |
 |

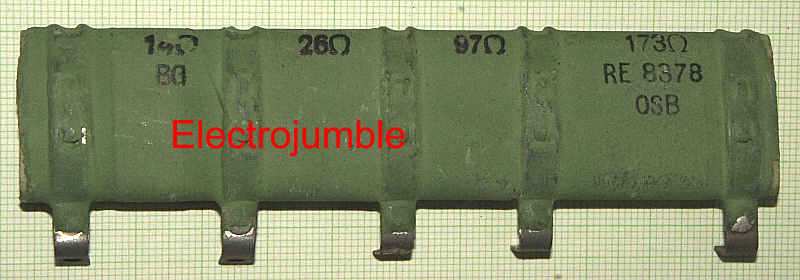

Ceramic wire-wound. 4 section. 14+26+97+173 ohms Oval 25x8mm 115mm long |
Unused old stock |
9.00 |
| RD1276 |
 |
Ceramic wire-wound. 2 separate 4 sections. 33+75+70+68 and
20+21+33+10 ohms 25mm diameter x 140mm long |
Unused old stock |
9.00 |
| RD1281 |
 |
RS type 154-961 | Unused old stock | 5.50 |
| RD1283 |
 |
Ceramic wire-wound. 6 section. 20mm diameter 115mm high. 8+15+17+70+63+188 ohms |
Unused old stock |
9.00 |
| RD1285 |
 |

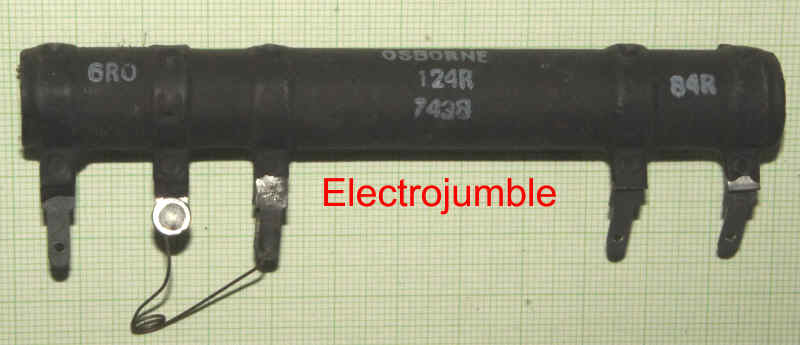

Ceramic wire-wound. 3 section. 15mm diameter 115mm high. 6+124+84 ohms. The link between the 6 and 124 ohms can be removed |
Unused old stock |
6.00 |
| RD1287 |
 |
Ceramic wire-wound. 3 section. 15mm diameter 140mm high. 6 and 1+100 ohms. |
Unused old stock |
6.00 |

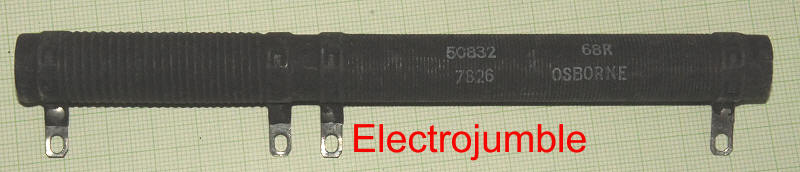

| RD1291 |
 |
Ceramic wire-wound. 2 section. 15mm diameter 140mm high. 2.2 and 68 ohms. |
Unused old stock |
6.00 |

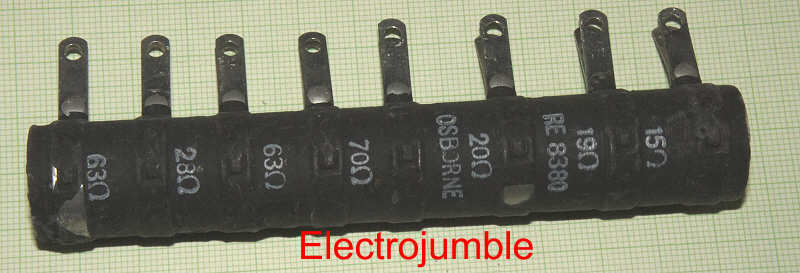

| RD1294 |
 |
Ceramic wire-wound. 7 section. 20mm diameter 120mm high. 15+19+20+70+63+28+63 ohms. |
Unused old stock |
6.00 |

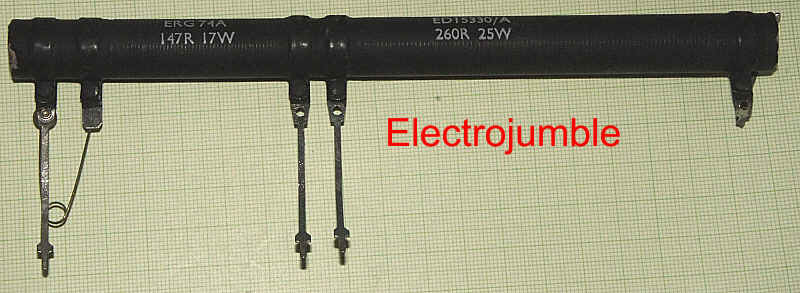

| RD1296 |
 |
Ceramic wire-wound. 2 section. 15mm diameter 190mm long. 147 ohms, 17W and 260 ohms 25W. A link above the 147 ohms could be removed - probably adding 9 ohms. |
Unused old stock |
7.00 |
| RD1297 |
 |

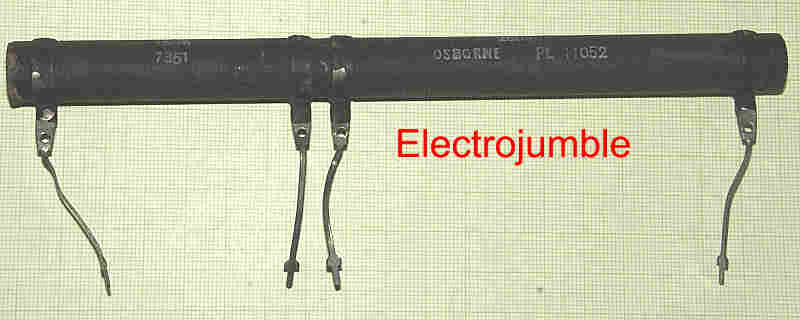

Ceramic wire-wound. 2 section. 15mm diameter 190mm long. 156 ohms, 17W and 260 ohms 25W. |
Unused old stock |
5.00 |
| RD1350 |
 |
1500+400 ohms. Cressall EJ 33/T 20mm diameter, 90mm long |
Unused old stock |
5.00 |
| RD1501 |
 |

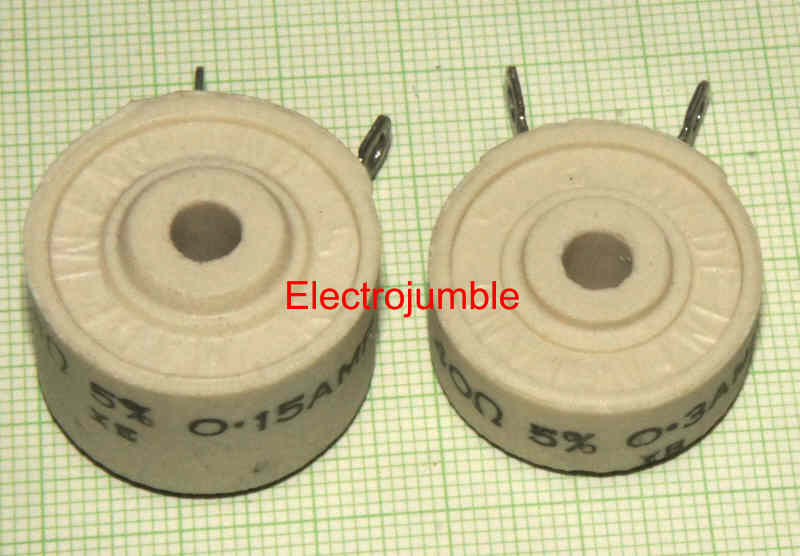

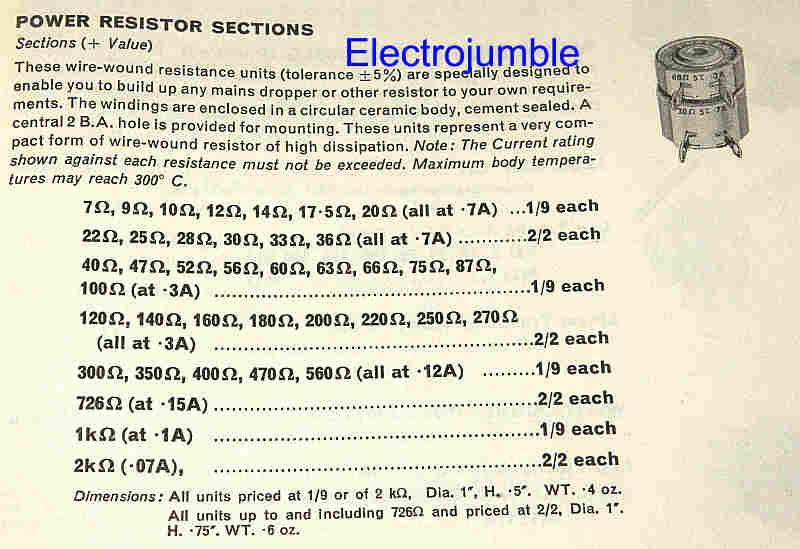

Power Resistor Sections RS Ceramic wire-wound. A few of these
rare types now available again 25.4mm diameter with heights of 19 or 13mm depending on rating. 2BA centre hole Following values available: 10,12, 20, 25 (U), 36, 40, 47, 52, 75(U), 87, 270, 726, 940, 1000 (U) ohms. See RS data HERE for current ratings which range from 0.1 to 0.7A |
Unused old stock Some Boxed Used |
3.50 2.75 |
| Precision Fixed Resistors - Meter Resistors and Shunts | ||||

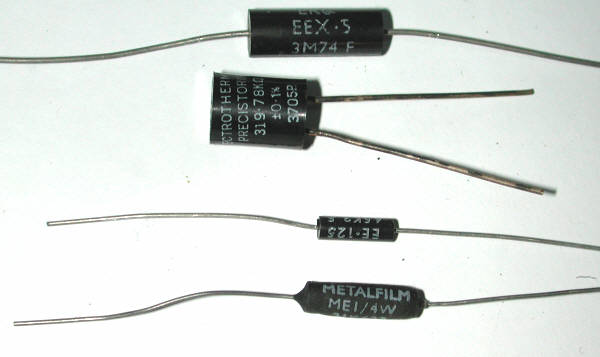

| RP7100 |
 |
Precision
Resistors, Various values, types and makes. I can probably select and/or make up to a value if not available. |
Unused old stock | From 0.50 each |
| RP7110 |
 |

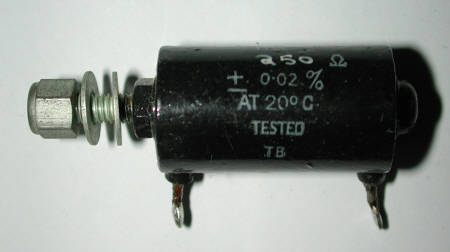

Precision Resistor, Rivlin.
+0.2% specification
except 10 ohm which is +0.1% Available in 10 ohm, 50 ohm, 250 ohm and 1250 ohm only. 15mm diameter, 44mm overall. Tested |
Ex equip | 0.25 |

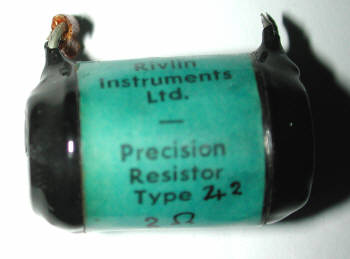

| RP7120 |
 |
2 ohm Precision Resistor, Rivlin. 15mm diameter, 27mm overall. Tested. Lead lengths vary. |
Ex equip | 0.25 |
| POTENTIOMETERS and VARIABLE RESISTORS | ||||
| Panel-mounting Carbon and Wire-wound | ||||
| RV0110 |
 |

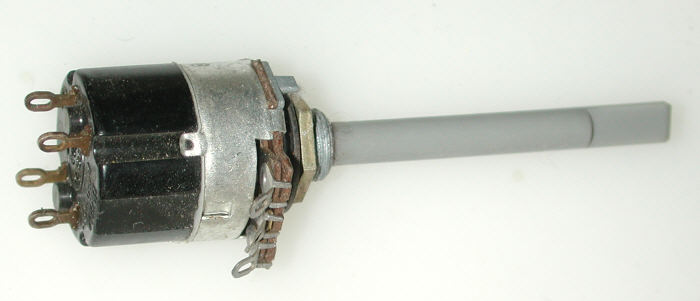

1M ohm potentiometer, panel mounting, carbon.
Egen 1M ohm linear with double pole switch. Body 24mm diameter, 32mm behind panel over connections. Insulated spindle 6mm diameter, 53mm long with flat. |
Unused old stock | 2.70 |
| RV0210 |
 |
2.5M ohm potentiometer, panel mounting, preset, carbon.
Morganite Services type 99-026-2934 Body 25mm diameter, 22mm behind panel over connections. Slotted spindle 6.3mm diameter, 5mm long. |
Unused old stock | 2.70 |
| RV0220 |
 |

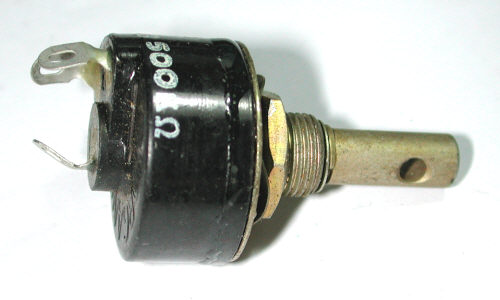

470 or 500k ohm. Potentiometer, panel mounting, carbon.
Morganite Services type Z 262543 or 99-012-4607 Morganite 470 or 500k ohm. Body 25mm diameter, 22mm behind panel over connections. Spindle 6.3mm diameter, 14mm long with hole for services type knobs. (Also a few used of other values) |
Unused old stock | 3.60 |
| RV0460 |
 |

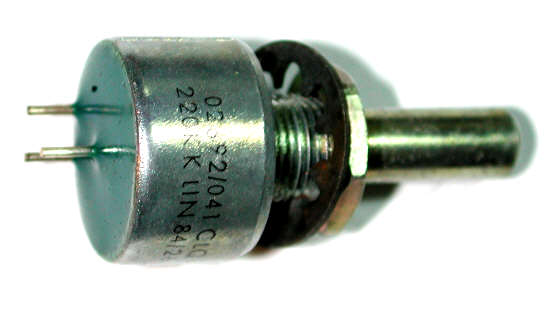

10k, 100k, 220k and
470k ohm. 2 watt Potentiometer, panel mounting, cermet.
Some RS packed 19mm body, 6.3mm x 14mm shaft. |
Unused old stock | 3.50 |
| RV0632 | . |

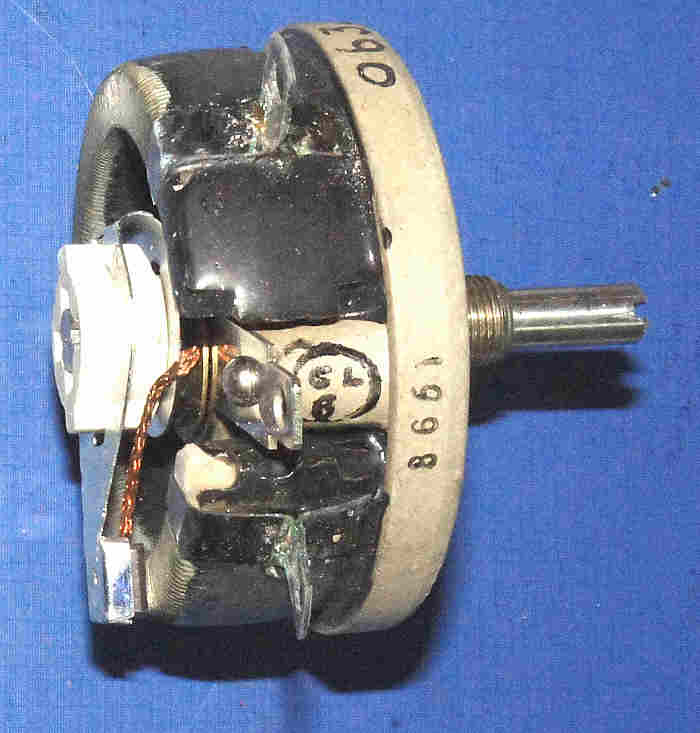

15 ohm potentiometer, 50 watt, panel mounting, Berco L50 wire-wound
ceramic 60mm diameter 35mm behind panel. |
Used | 4.50 |
| RV0680 | . |
100 ohm potentiometer, 25 watt, panel mounting, Berco L25 wire-wound
ceramic 40mm diameter 32mm behind panel. Storage marks |
Unused old stock | 6.50 |
| RV0744 | . |
50 ohm potentiometer, 25 watt, panel mounting, Berco L25 wire-wound
ceramic. Centre tapped 40mm diameter 32mm behind panel. |
Used | 5.00 |
| RV0750 |
 |

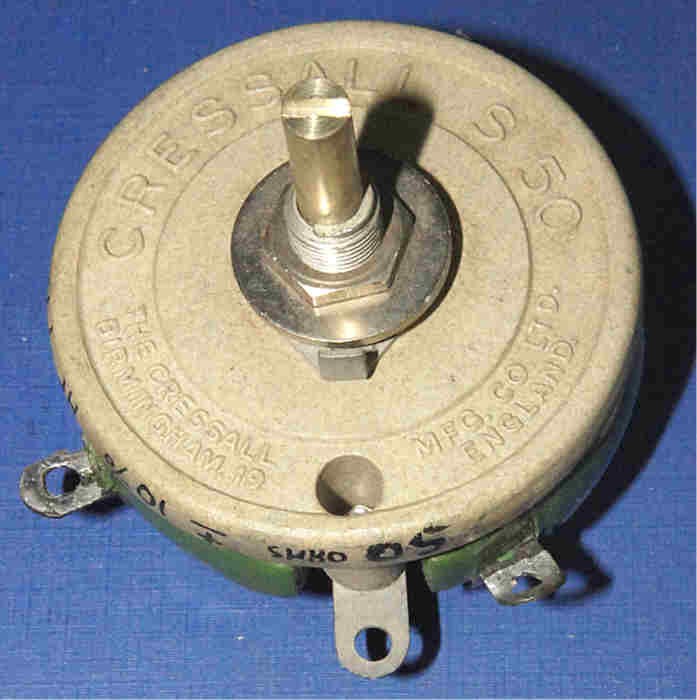

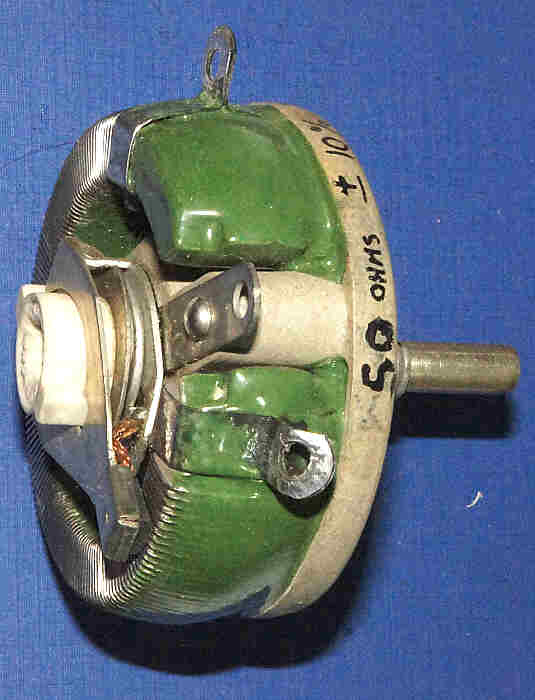

50 ohm potentiometer, 50 watt, panel mounting, Cressall S50
wire-wound ceramic
60mm diameter 35mm behind panel  |
Unused old stock | 6.50 |
| RV0752 |
50 ohm potentiometer, 25 watt, panel mounting, Yagishita F25
wire-wound ceramic
40mm diameter 33mm behind panel |
Used | 6.50 | |
| RV0754 |
100 ohm potentiometer, 25 watt, panel mounting, wire-wound ceramic
42mm diameter 35mm behind panel. 5.85mm diameter, with knob. |
Unused new stock | 7.50 | |
| RV0760 |
 |
150 ohm potentiometer, 50 watt, panel mounting, Berco L50
wire-wound
ceramic Services ref 5905/0632-99-972-6919 60mm diameter 35mm behind panel. Some storage marks. |
Unused old stock | 6.50 |

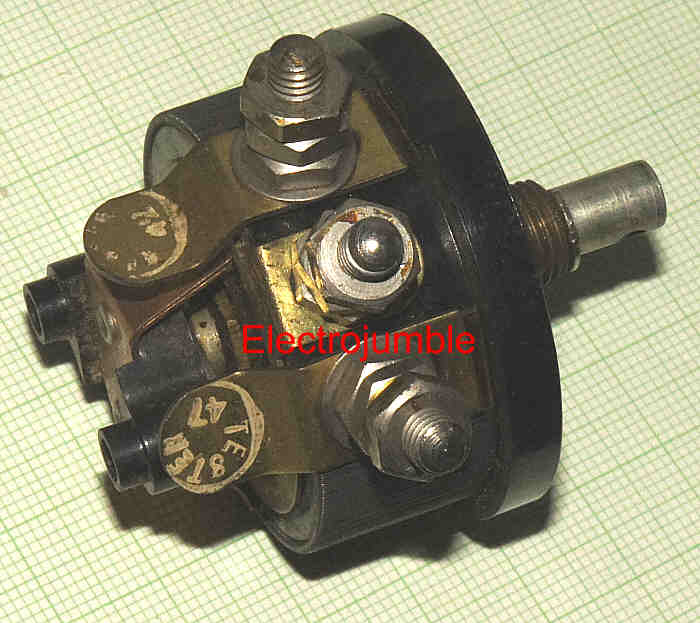

| RV0770 |
 |
200 ohm potentiometer, 10 watt, panel mounting, 45mm diameter 36mm behind panel. |
Used/unused | 4.80 |
| RV0772 | . |
500 ohm potentiometer, 50 watt, panel mounting, Berco L50 wire-wound
ceramic 60mm diameter 35mm behind panel. |
Used | 4.50 |
| RV0775 |
1000 ohm potentiometer, 25 watt, 0.158A panel mounting, SFER RT25L wire-wound
ceramic 40mm diameter 32mm behind panel. Storage marks |
Unused old stock |
9.50 |
|
| RV0780 |
 |

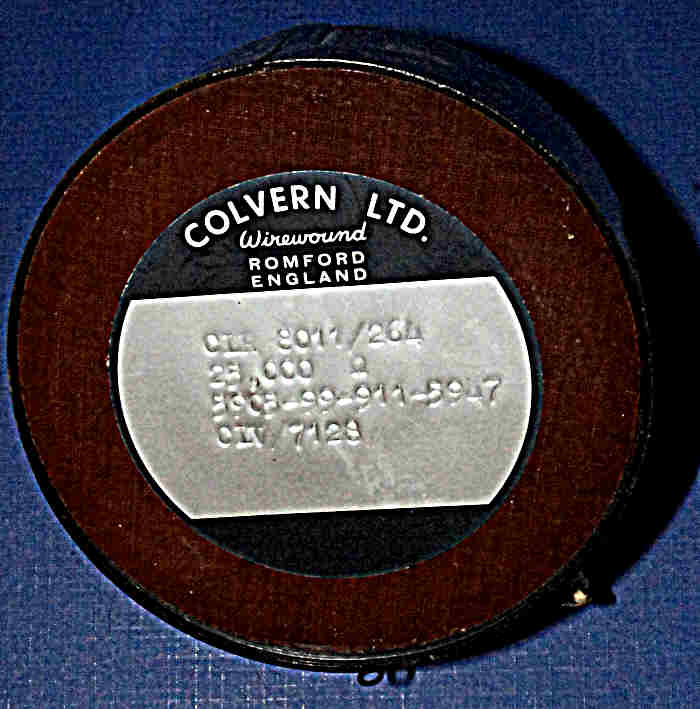

25k ohm potentiometer, 7 watt, panel mounting by 3
screws, Colvern CLR8011/264 87mm diameter body, 35mm behind panel  |
Unused old stock | 8.50 |
| Linear Wire-wound adjustable, pre-set | ||||
| RV0820 |
 |
180 ohm with adjustable tap. Berco Type
K7/RAH
100mm long, 30mm diameter. Plating on two screws defective. One only | Unused old stock | 6.50 |
| RV0822 | . |
200 ohm with adjustable tap. Colvern wire-wound CLR606 41mm long, 9mm wide, 8mm deep excluding connection tabs. Locking screw connected to metal mounting. Hum adjustment | Unused old stock | 1.50 |
| RV0826 |
similar |
400 ohm with adjustable tap.
112mm long, 25mm diameter. With tapping strap. One only | Unused old stock | 5.50 |

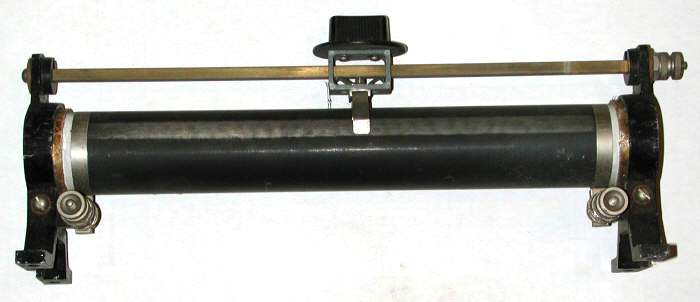

| RV0900 |
 |

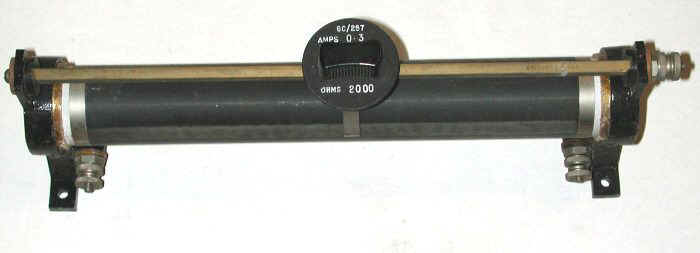

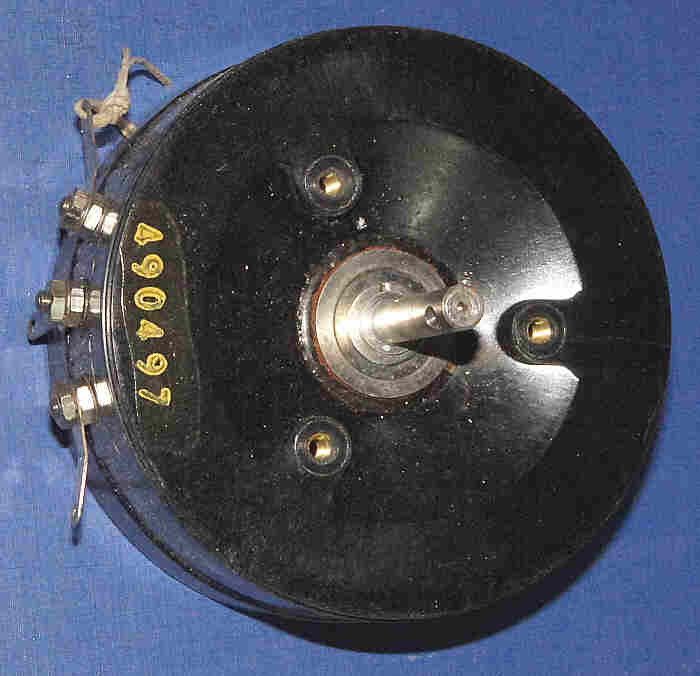

Rheostat, Laboratory 2000 ohms 0.3A. 180W
total.  |
Tested. Unused old stock | 5.50 |
| RV0950 | . | Switch Dimmer. 100 ohm and off. 5C/724 AM Crown Marked | Unused old stock | 16.50 |
| PRESET Resistors Thumbwheel Variable Resistors and Potentiometers | ||||
| RV2340 |
 |

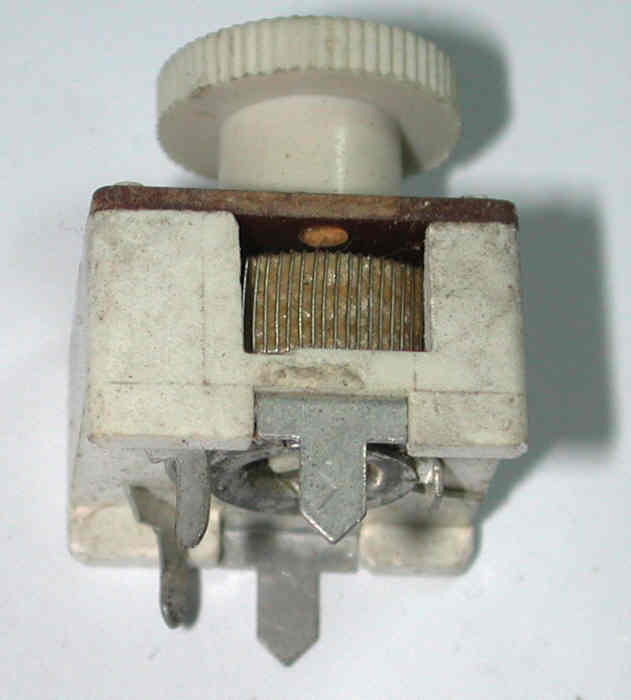

5 ohm Wire-wound Potentiometer for PCB
mounting. Egen AB type 101 Wiper is connected to metal frame. 2W rating on PCB or 3W on 50x50mm steel panel. Finger or Screwdriver adjustment. 20 x 20 x 22mm over knob. |
Unused some soiled tested |
0.60 |
| RV2350 |
|
6.8 ohm Wire-wound Potentiometer for PCB
mounting. Egen AB type 101 Wiper is connected to metal frame. 2W rating on PCB or 3W on 50x50mm steel panel. Finger or Screwdriver adjustment. 20 x 20 x 22mm over knob. |
Unused some soiled tested |
0.60 |
| RV2360 |
|
15 ohm Wire-wound Potentiometer for PCB
mounting. Egen AB type 101 Wiper is connected to metal frame. 2W rating on PCB or 3W on 50x50mm steel panel. Finger or Screwdriver adjustment. 20 x 20 x 22mm over knob. |
Unused some soiled tested |
0.45 |
| RV2370 |
 |
50 ohm Wire-wound Potentiometer for PCB
mounting. Egen AB type 101 Wiper is connected to metal frame. 2W rating on PCB or 3W on 50x50mm steel panel. Finger or Screwdriver adjustment. 20 x 20 x 22mm over knob. |
Unused some soiled tested |
0.30 |
| RV2380 |
|
100 ohm Wire-wound Potentiometer for PCB
mounting. Egen AB type 101 Wiper is connected to metal frame. 2W rating on PCB or 3W on 50x50mm steel panel. Finger or Screwdriver adjustment. 20 x 20 x 22mm over knob. |
Unused some soiled tested |
0.50 |
| RV2410 |
 |

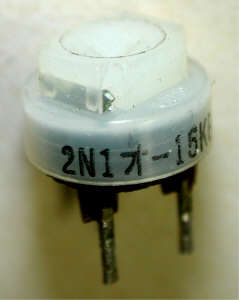

Potentiometer 15k. Miniature pcb mounting. | New Old Stock | 0.55 |
| RV2420 |  |
Potentiometer 20k. Miniature pcb mounting. 6mm square, feet 5mm spacing. | New Old Stock | 0.45 |

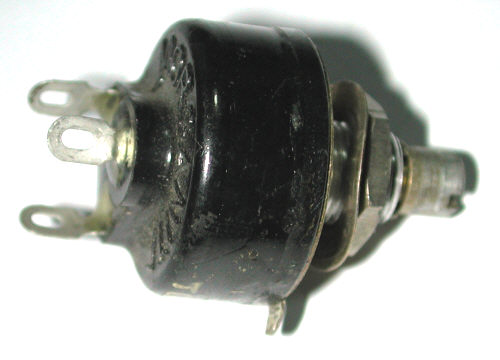

| Multiturn preset and Miscellaneous + More available! | ||||
| RV3400 |
 |
Potentiometer, Multiturn 10k Ceramic. | New Old Stock | 1.55 |
| RV3740 |
 |

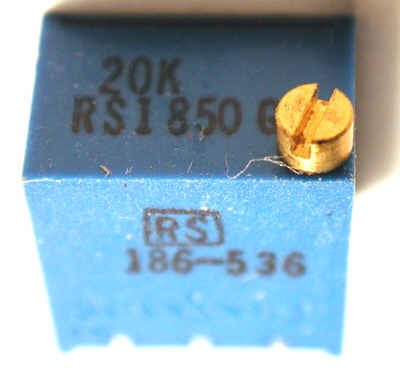

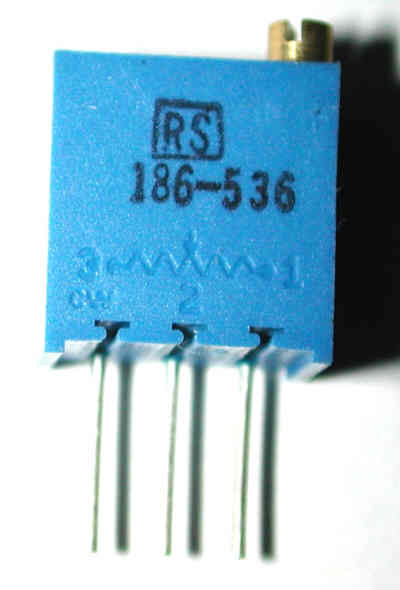

Potentiometer 20k ohms, Cermet.
RS type 186-536. Top adjustment trimmer. Miniature vertical mounting.  |
New | 1.00 |

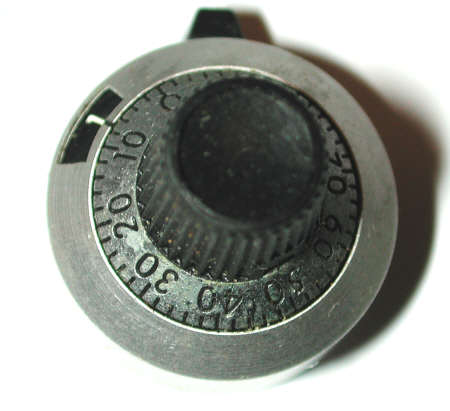

| Multiturn panel-mounting and Multiturn knobs | ||||

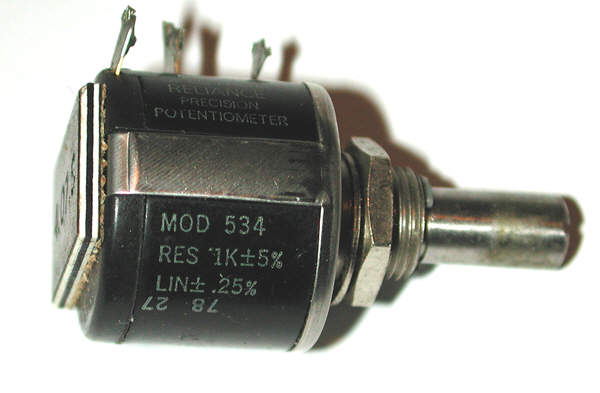

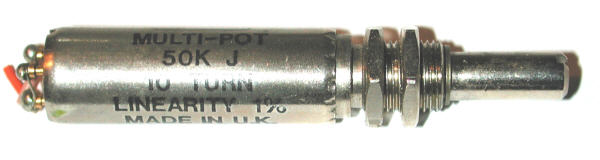

| RV5000 |
 |

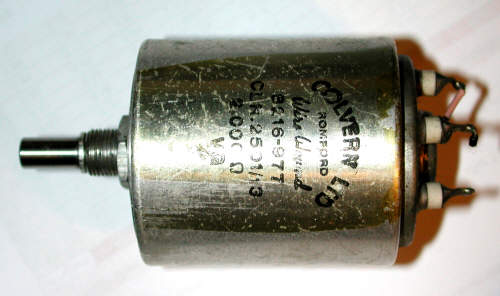

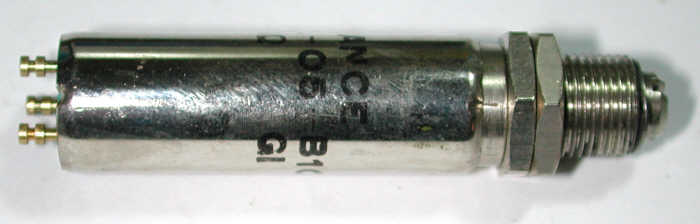

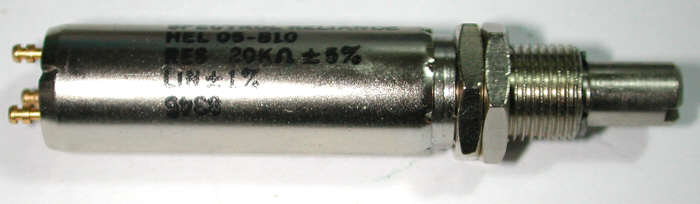

10 Turn 2k (2000) ohms 5W ohm wire-wound Potentiometer. Colvern CLR2501/13. Tested. 42mm diameter, 90mm overall length. 10mm long 6.33mm, 0.25" shaft. | Ex Equipment | 5.70 |
| RV5010 |
 |
10 turn
1% linearity pre-set wire-wound potentiometer.
Spectrol Reliance or RS badged. Body 12.6mm diameter, 55mm long; 6.3mm spindle slotted. 100, 250, 500, 1K, 10K, 50k, 100K. Few only. |
Unused old stock | 4.80 |
| RV5020 |
 |
10 turn 1% linearity wire-wound potentiometer.
Spectrol Reliance or RS badged. Body 12.6mm diameter, 55mm long; 6.3mm spindle, 9mm long slotted. 100, 500, 1k, 5k, and 20k ohms. Few only. |
Unused old stock | 7.00 |
| RV5030 |
|
10 turn 5k 1% linearity wire-wound potentiometer
RS 173-502 RS badged Spectrol Reliance. 5000 ohm. only Body 12.6mm diameter, 55mm long; 6.3mm spindle, 14mm long slotted. |
Unused old stock | 5.30 |
| RV5150 |
 |
10 turn 50k 1% linearity wire-wound potentiometer.
Used tested. 0.25" shaft 14mm long
slotted. Colvern or RS badged. (A few other values may be available) |
Ex Equipment | 3.50 |
| RV5370 |
 |
10 turn 1k 0.25% linearity 2W wire-wound potentiometer. Spectrol Reliance Model 534. 21mm diameter, 40mm overall, 12mm long 0.25" shaft. Label glued on back. | Ex Equipment | 1.90 |
| RV5380 |
 |
Analogue 15 turn dial Knob. Spectrol Multidial Model 16. For 0.25" shaft. Allen headed grub screw. Locking lever. 22mm diameter 23mm high. | Ex Equipment | 1.40 |
| RV5310 |  |
15 turn Analogue dial. Suitable for 10 turn potentiometers with 0.25" shafts. | Ex Equipment | 2.50 |
| Servo Pots | ||||
| RV814 |
 |
Servo Potentiometer - Continuous Rotation.
2,000 ohm, 2k
Bourns type 6554S-1-202. Linearity + 0.5%. 33mm
diameter, 19mm deep, 6.3x14mm shaft  |
Unused | 6.50 |
| RV815 |
|
Servo Potentiometer - Continuous Rotation.
20,000 ohm, 20k
Bourns type 6554S-1-203. Linearity + 0.5%. 33mm
diameter, 19mm deep, 6.3x14mm shaft |
Unused | 6.50 |
| RV826 |
 |
Servo Potentiometer - Continuous Rotation.
RS type 173-596. 20,000 ohm, 20k 20%. 0.5% linearity.
Body 23mm diam. 10mm long 3mm shaft. (Current RS Stock at 33 GBP + VAT)
1 only remaining |
Unused | 10.50 |
| THERMISTORS | For Data on some ITT STC types, see Tech Data Page. | |||
| TH134 |
 |
Thermistor 1500 ohms at 25oC.
Varite 0.5W rated bead. 5mm diameter, 2mm thick
with 35mm leads. Resistance at maximum dissipation is 80 ohms approx. Equivalent to Mullard/Philips VA1098 which was replaced by 2322 642 62152. Also equivalent to Siemens K164 series Q63016-K4001-K/M45 |
New Old Stock | 0.10 |
| TH135 |
 |
Thermistor 4700 ohms at 25oC.
Varite 0.5W rated bead. 5mm diameter, 2mm thick
with 35mm leads. Resistance at maximum dissipation is 250 ohms approx. Equivalent to Mullard/Philips VA1109 which was replaced by 2322 642 62472. Also equivalent to Siemens K164 series Q63016-K4004-K/M47. |
New Old Stock | 0.10 |
| TH156 |
 |
Thermistor,Vacuum , B54. Indirectly heated
STC ITT See Tech Data for information. |
New Old Stock | 7.20 |
| TH157 |
 |
Thermistor, U23 STC ITT 2 Miniature loose beads sealed in glass tube. 1mm divisions in picture. |
New Old Stock | ? |
| TH158 |
 |
Thermistor, P23 STC ITT
Miniature bead mounted on probe.
85mm overall with wires. Approx 5mm across tips of "Y" |
New Old Stock 2 only |
12.20 |
| TH159 |
 |
Thermistor, G23 CW STC ITT
Miniature bead in glass tip (Short version of GL23 TH-B12 RS type 151-029) |
New Old Stock | ? |
| TH163 |
 |
Thermistor, Yellow Springs Instrument YSI
44202. Temperature sensor. Comprises a composite bead type 44018 and two resistors. Temperature accuracy is stated as +0.15oC for the circuits given over the range -5oC to +45oC. Data Sheets and circuits are HERE. Time constant 10sec in free air. With data sheet in original tube package. Bead is maximum of 0.08" (2mm) diameter, 0.15" (3.5mm) long with 5" leads.  |
New Old Stock | 9.80 |
|
|
For information on how to
buy, please see the information page  |
