 This lists Extender Boards, Extender Cables and Test Boards.They are mostly for hire rather than for sale. A £35 refundable deposit is required to ensure return so that others can benefit.Hire charges are
from 3 to 8 GBP per week or part week Postage
on most is 4 to 6 GBP to UK, 8 GBP to Europe. Elsewhere
and large boards please ask.Balance will be refunded when item is received back in good condition with deduction of postal and hire charges. They are mostly for boards of 1.7mm thick maximum. If your boards are thicker, please advise before ordering - too thick can damage the sockets. REF |
PITCH inch | WAYS | Sides | Xtn mm | Brand Type No | Board Width x Overall mm | DESCRIPTION | Qty |
0.1 inch 2.54mm pitch boards |

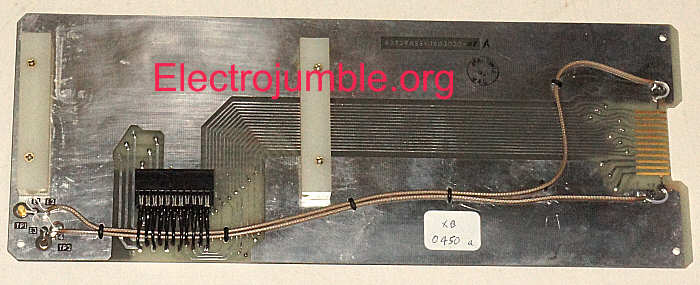

XB0450 |
0.1 | 11 | 2 | xxx | 97237-1255632-01 | 100 x 266 | Right-angle extender with two test points andcoax | 2 |

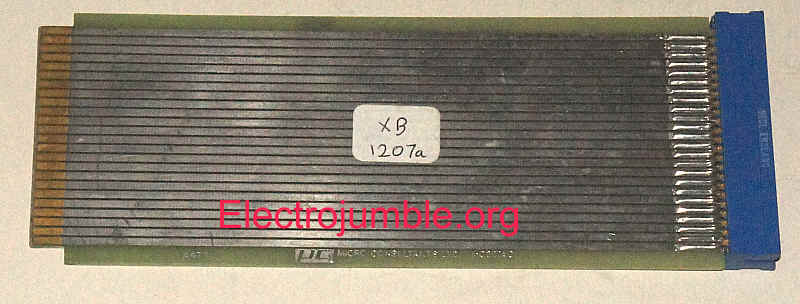

XB1207 |
0.1 | 24 | 2 | 177 | Micro Consultants MC2074C | 70 x 184 | | 3 |

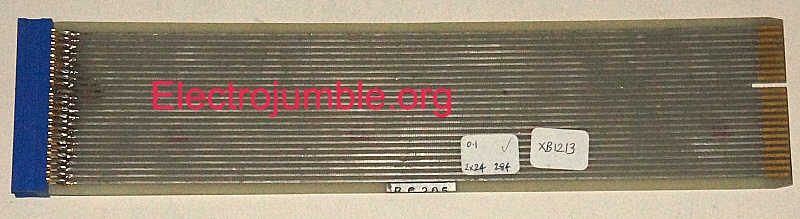

XB1213 |
0.1 | 24 | 2 | 285 | BC205 | 68 x 290 | One contact removed for keyway | 4 |

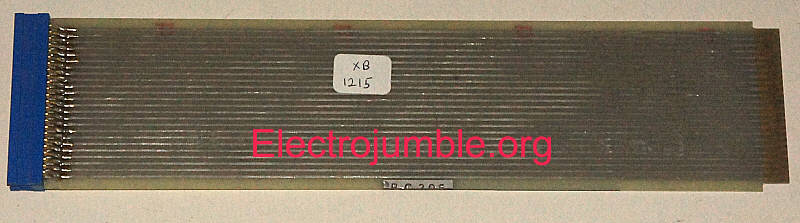

XB1215 |
0.1 | 24 | 2 | 285 | BC205 | 68 x 290 | | 4 |

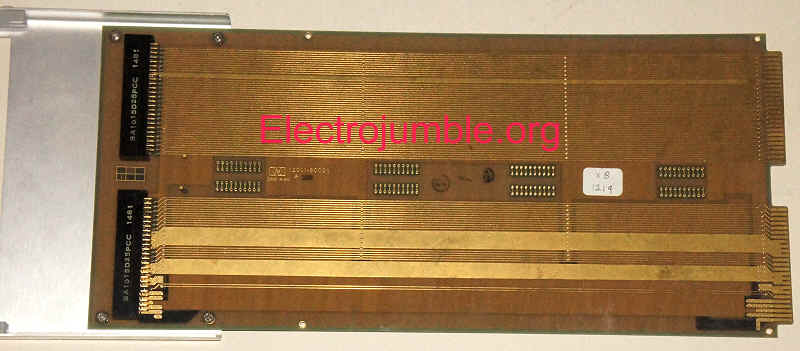

XB1219 | 0.1 | 2x24 | 2 | 360 | HP 12011-60001 | 172 x 380 | Test
Board; provision for test connections.
Some ways paralled for power circuits | 1 |

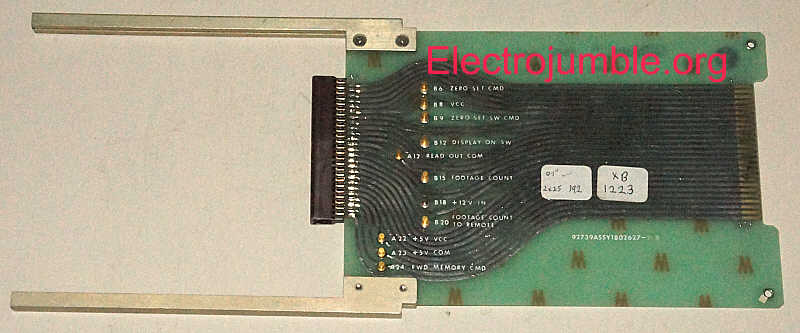

XB1223 |
0.1 | 25 | 2 | 192 | Ampex Tape recorder | 128 x 200 | With test points and board slides | 2 |

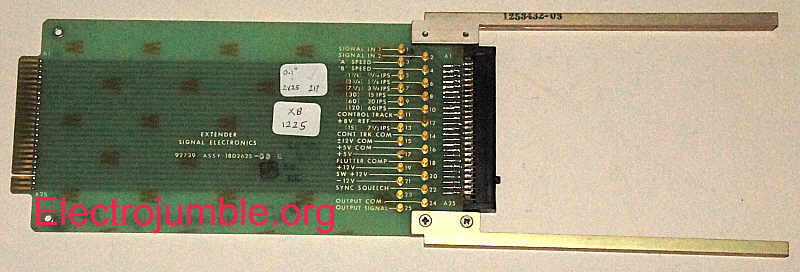

XB1225 |
0.1 | 25 | 1 | 217 | Ampex Tape recorder | 101 x 225 | With test points - Signal Electronics | 2 |

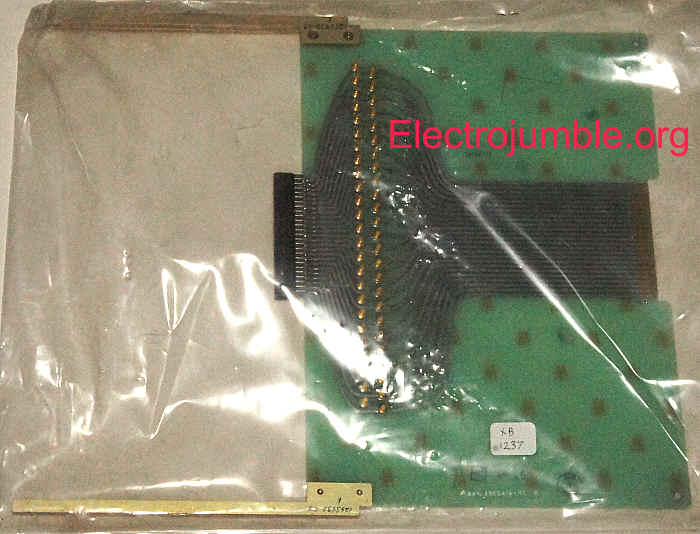

XB1237 |
0.1 | 25 | 2 | 192 | Ampex 1802616-01 | 258 x 201 | Test points. 330mm overall with board support | 1 |

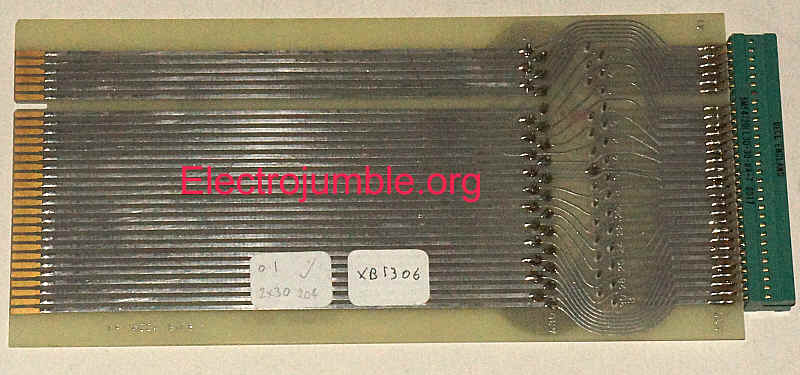

XB1306 |
0.1 | 30 | 2 | 205 | CP1422A test board | 94 x 210 | Position 7 polarised/removed | 1 |

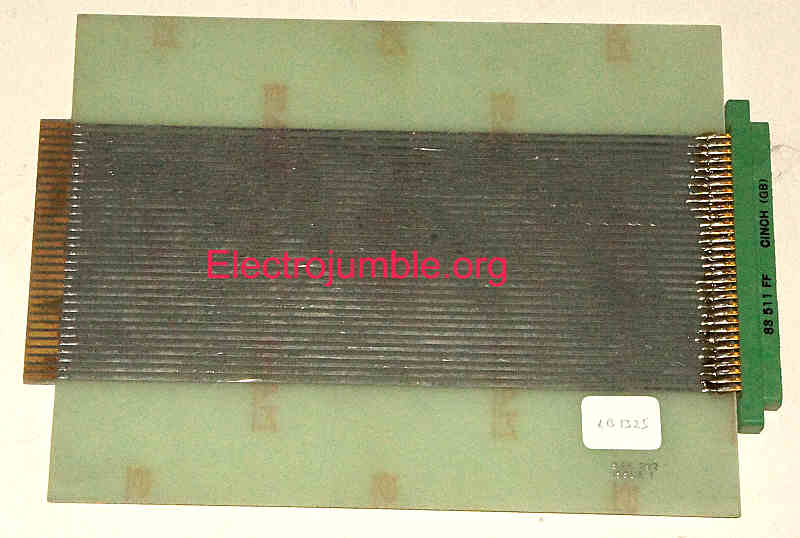

XB1325 |
0.1 | 32 | 2 | 210 | SPE292 | 152 x 216 | | 1 |

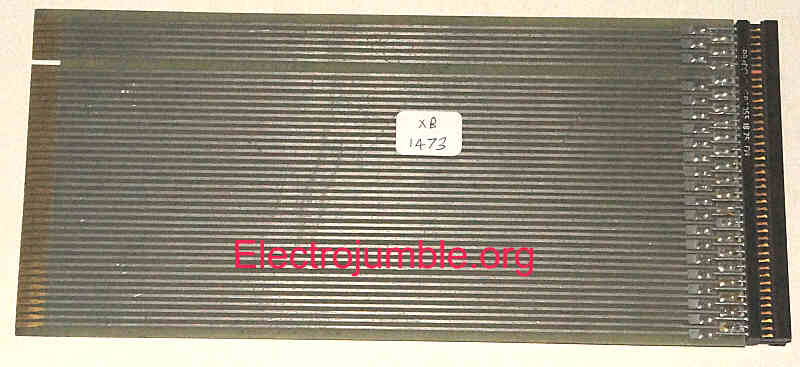

XB1423 |
0.1 | 43 | 2 | 242 | | 114 x 250 | Position 7 polarised/removed | 1 |

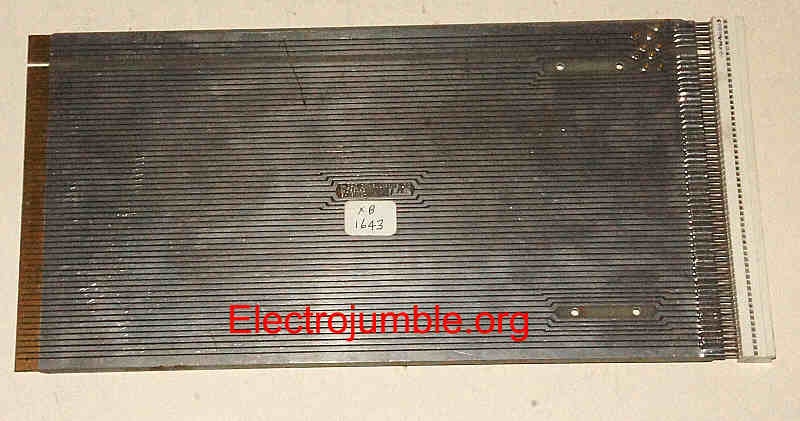

XB1643 |
0.1 | 60 | 2 | 306 | Micro Consultants MC5628B | 155 x 312 | Outer pairs paralleled position 5 omitted 4 links | 1 |
0.125 inch 3.18mm pitch boards |

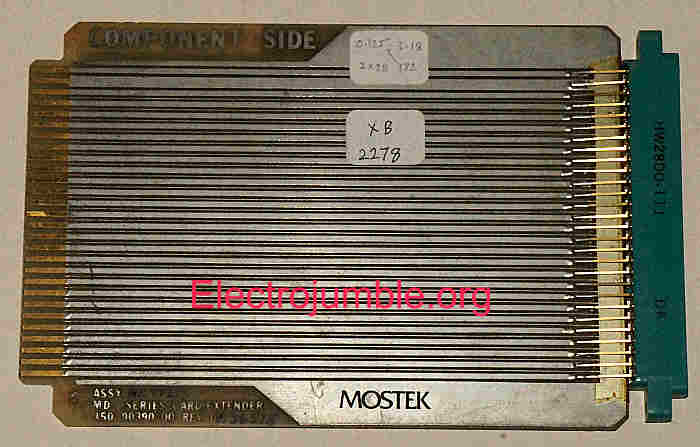

XB2278 |
0.125 | 28 | 2 | 172 | Mostek MD Series 450-00390-00 | 115 x 180 | Screened tracks | 1 |
0.15 inch 3.81mm pitch boards |

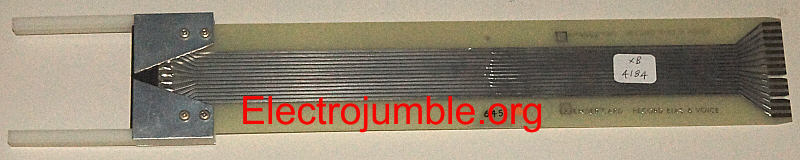

XB4184 |
0.15 | 14 | 2 | 330 | Record bias and voice | 58 x 338 | | 3 |

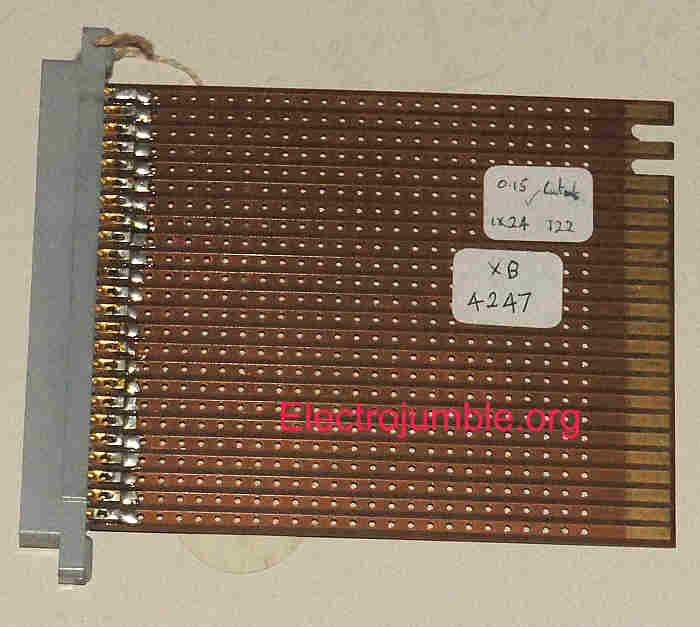

XB4247 |
0.15 | 24 | 1 | 122 | Strip Board | 92 x 129 | 2 contacts removed to polarize | 1 |
XB4261 |
0.15 | 31 | 1 | 330 | D65050 Play | 127 x
338 | with card
support rails and coax | 2 |

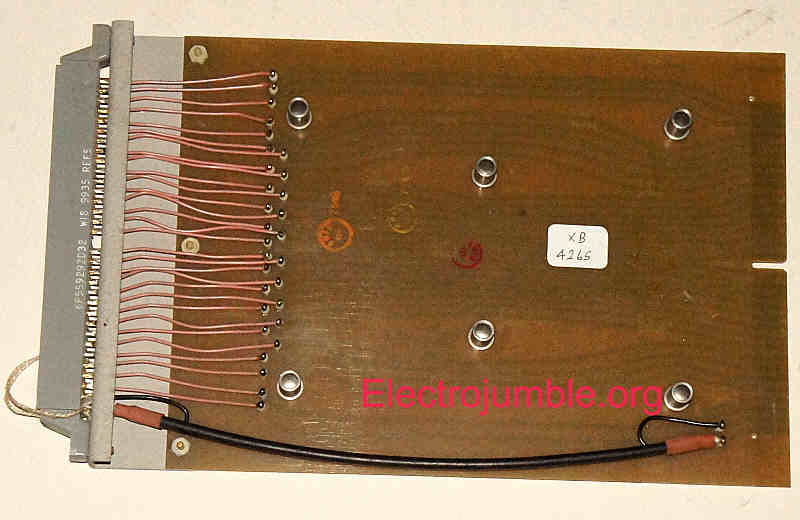

XB4265 |
0.15 | 32 | 1 | 264 | B99-0030 | 163 x 270 | Centre pole polarised | 1 |

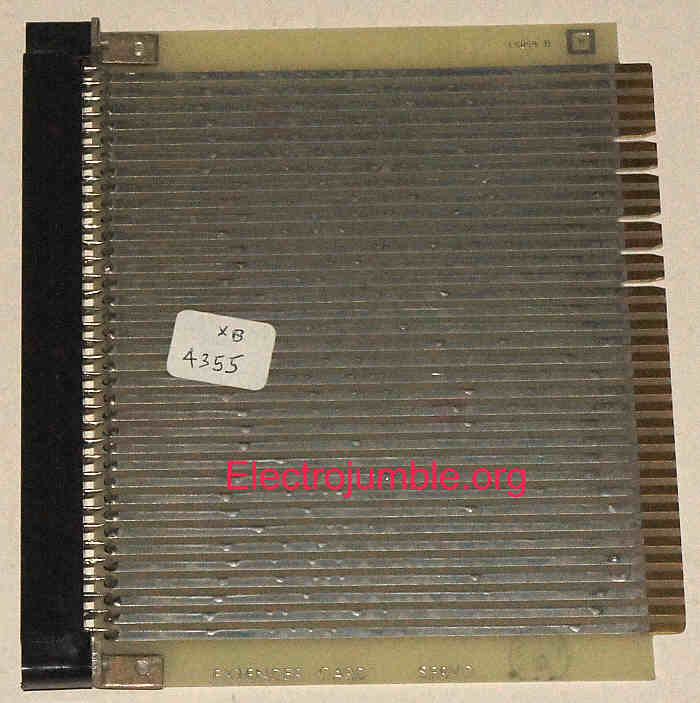

XB4355 |
0.15 | 35 | 1 | 133 | SE Labs 65053 | 150 x 140 | Servo | 4 |
0.156 inch 3.96mm pitch boards |

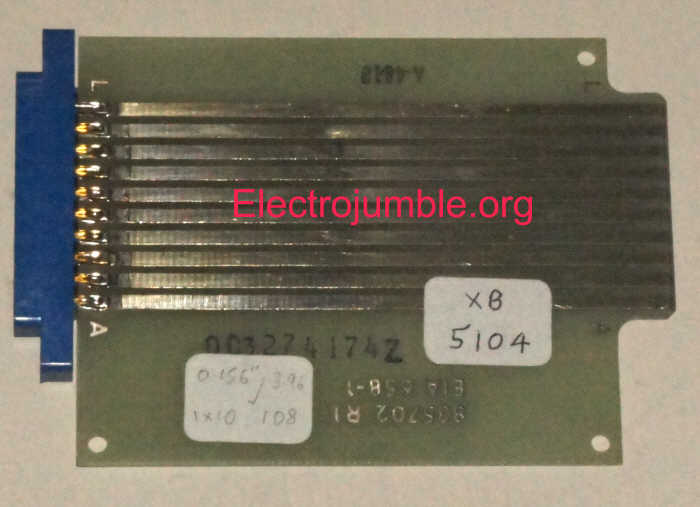

XB5104 |
0.156 | 10 | 1 | 108 | EIA 658-1 835702R1 | 78 x 115 | | 1 |

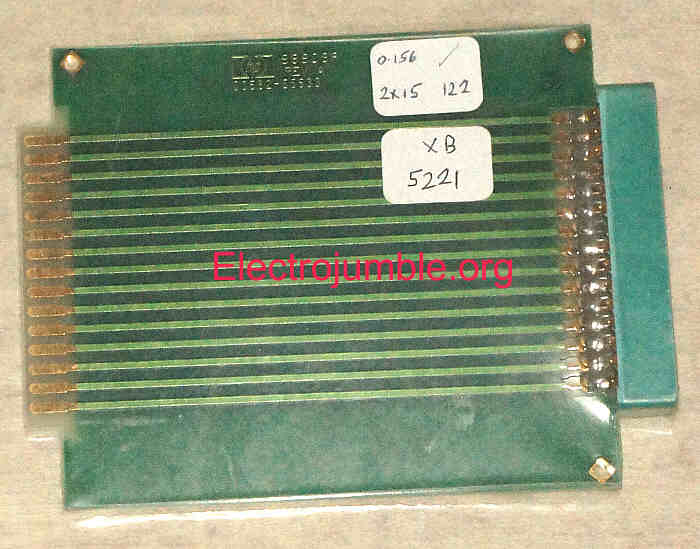

XB5221 |
0.156 | 15 | 2 | 120 | HP 03582-66533 | 96 x 130 | | 2 |

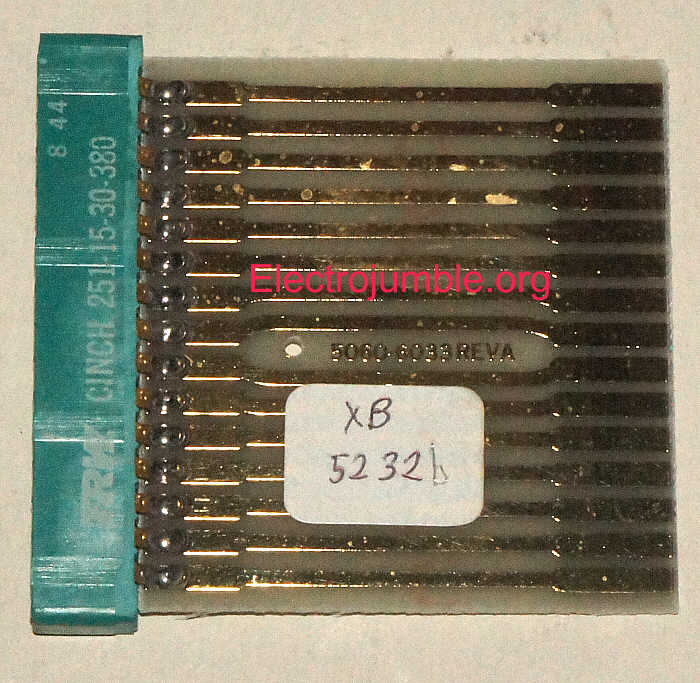

XB5232 |
0.156 | 15 | 2 | 65 | HP 5060-6033 | 63 x 70 | | 4 |

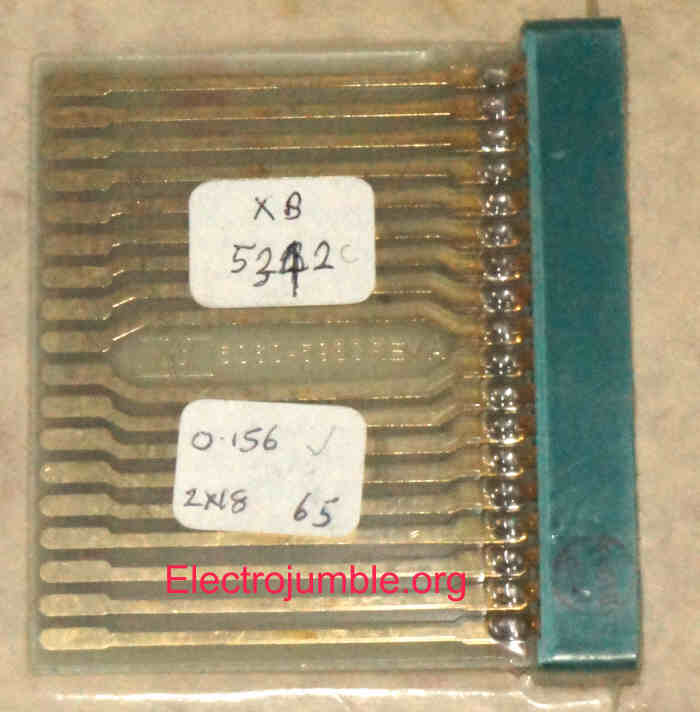

XB5342 |
0.156 | 18 | 2 | 65 | HP | 76 x 71 | | 1 |

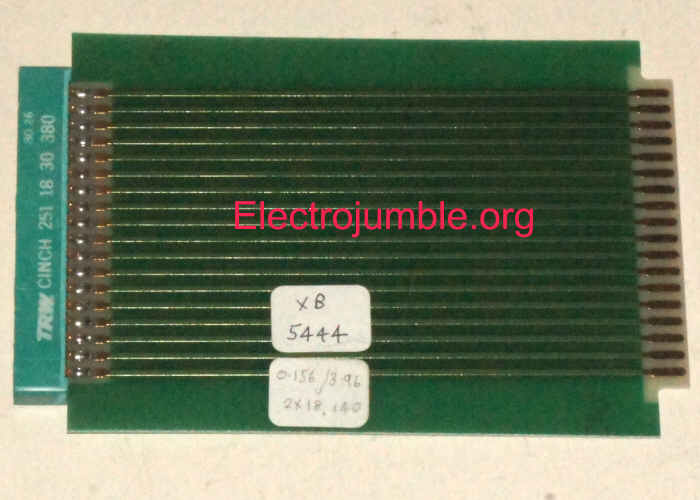

XB5444 |
0.156 | 18 | 2 | 140 | HP | 95 x 150 | | 1 |

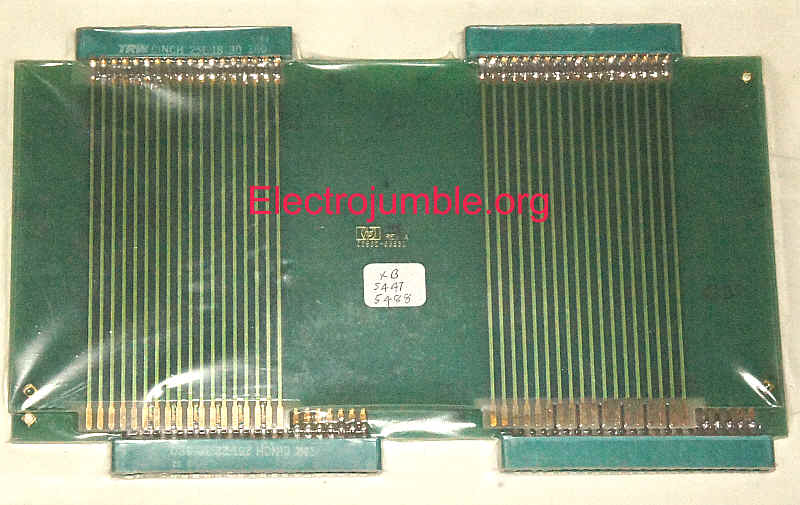

XB5447 |
0.156 | 2x18 | 2 | 142 | HP 03852-66531 | 272 x 150 | Board with two connectors | 3 |

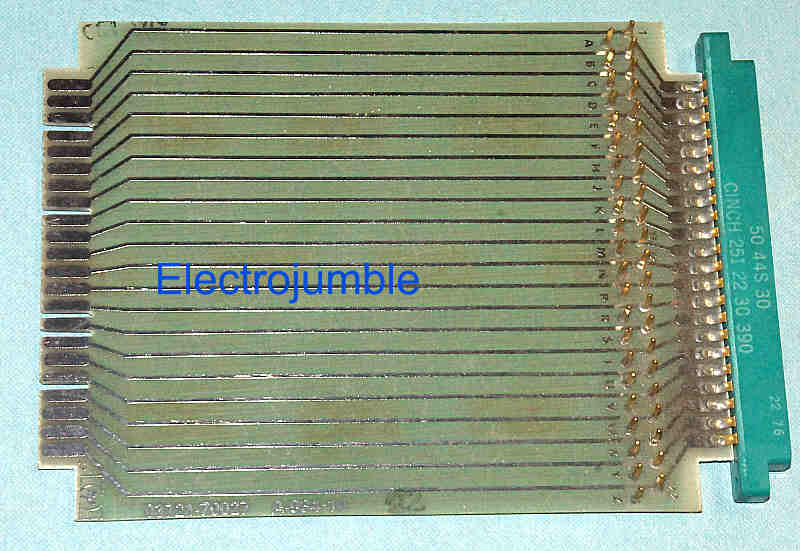

XB5452 |
0.156 |
22 | 2 |
153 | HP 037211-70027
A-934-14 | 115 X 160 |
With 44 test points | 1 |

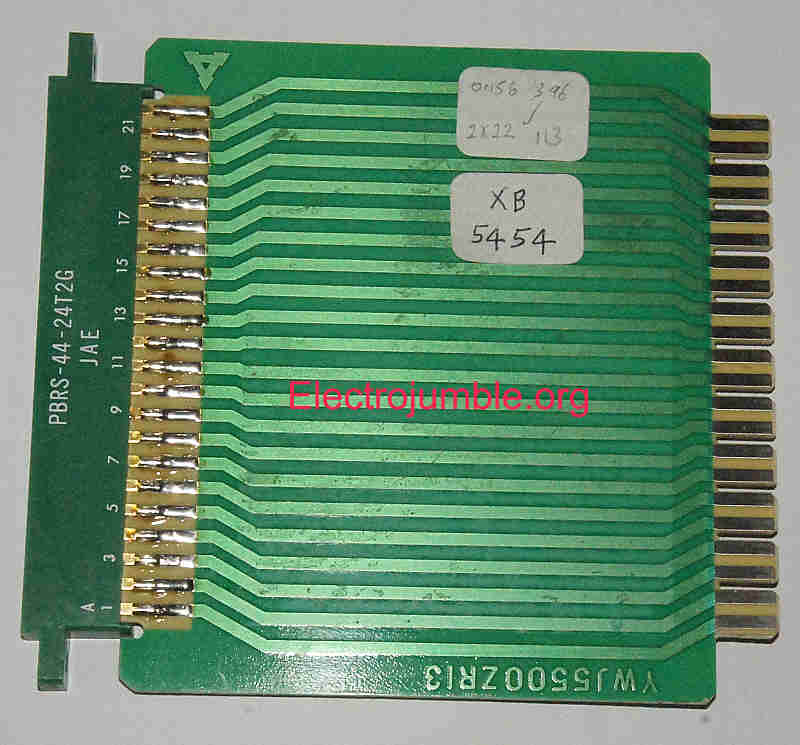

XB5454 |
0.156 | 22 | 2 | 113 | YWJ5500ZR13 | 110 x 120 | | 1 |

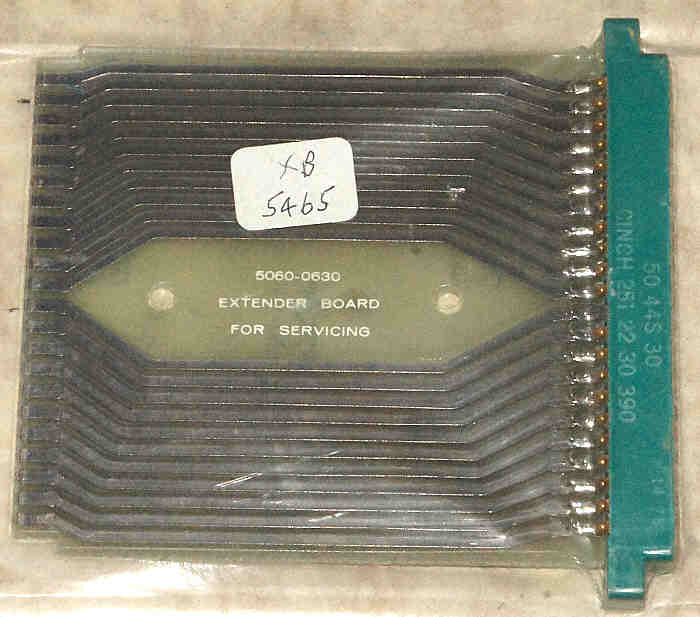

XB5465 |
0.156 | 22 | 2 | 108 | HP
5060-0630. Part 03490-84402 | 96 x 115 | | 2 |

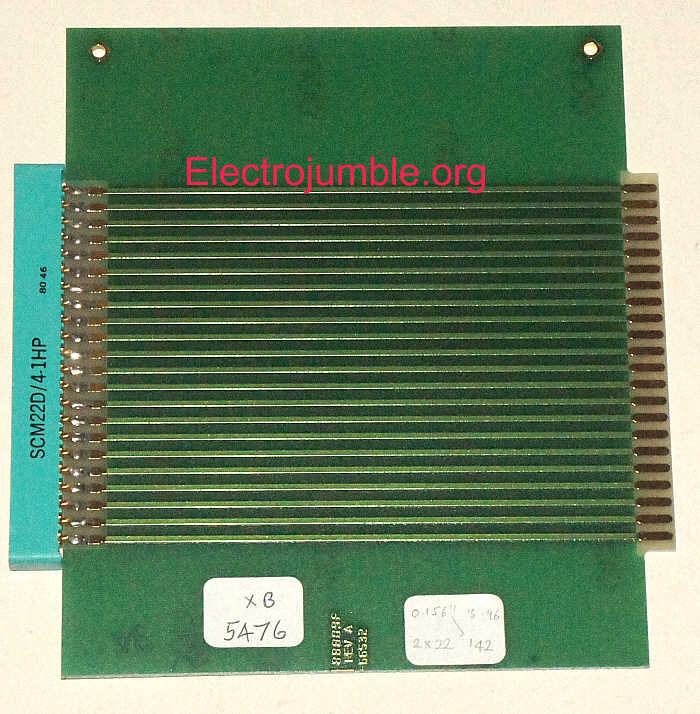

XB5476 |
0.156 | 22 | 2 | 142 | HP | 155 x 150 | Width has been reduced on one side. 1/2 XB5488 | 1 |
XB5488 |
0.156 | 2x22 | 2 | 142 | HP 03582-66532 | 272 x 150 | Board with two connectors | 3 |

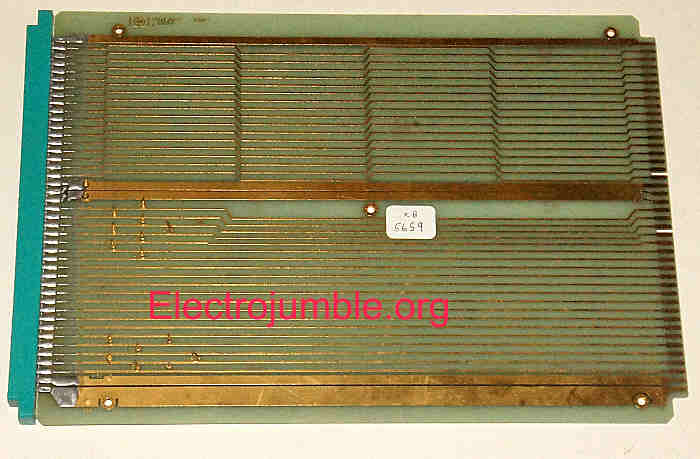

XB5659 |
0.156 | 43 | 2 | 285 | HP 02313-60027 | 197 x 292 | With some test points | 1 |
- Boards with various terminations and Test boards
|

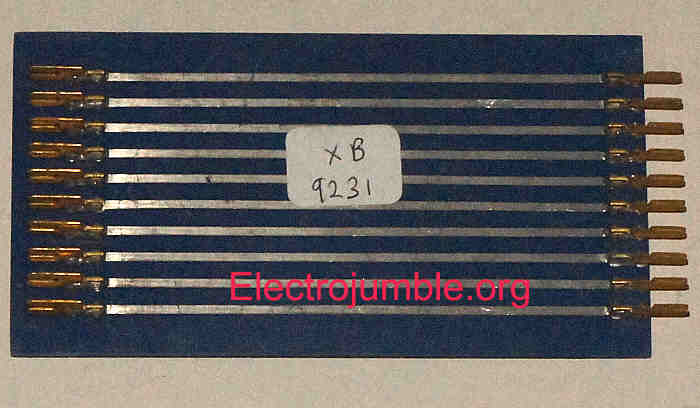

XB9231 |
Blades | 10 | 1 | 120 | Pemco 98-000203-01 | 62 x 130 | | 1 |

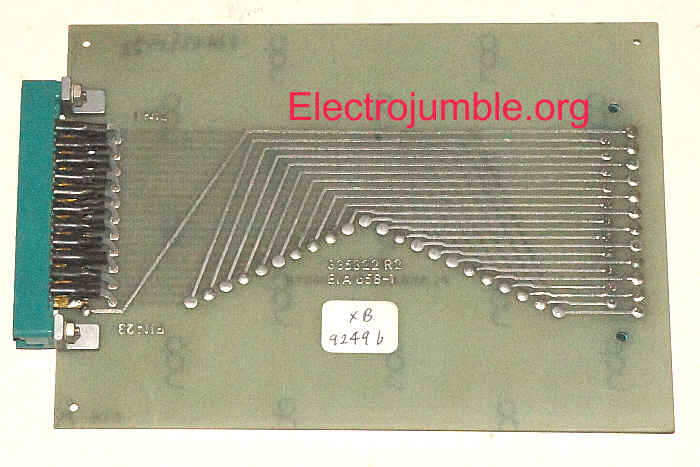

XB9249 |
Blades | 23 | 1 | 178 | EIA 658-1 835322R2 | 126 x 190 | Playback | 2 |

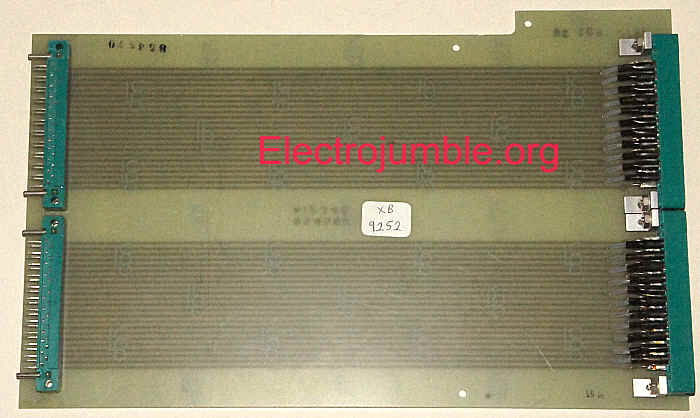

XB9252 |
Blades | 2x23 | 1 | 285 | 854569 | 172 x 294 | Board with two connectors | 1 |

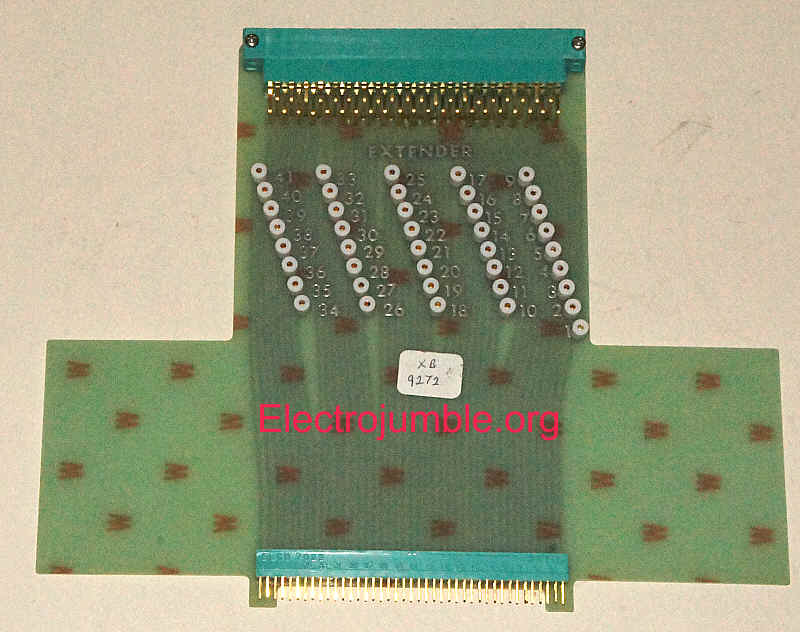

XB9272 |
Blades | 41 | 1 | 195 | 460-0417-2C | 254 x 210 | With 41 test sockets | 1 | |
| | | | | | | |

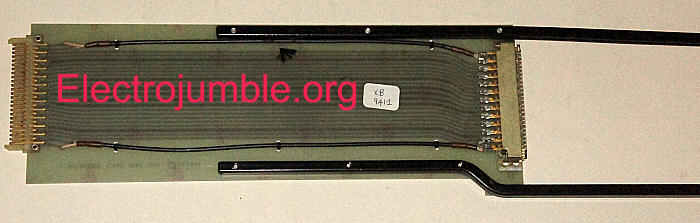

XB9412 |
| 25 | 1 | 297 | E62263 Bias Osc | 98 x 470 | With coax wiring and board support | 1 |

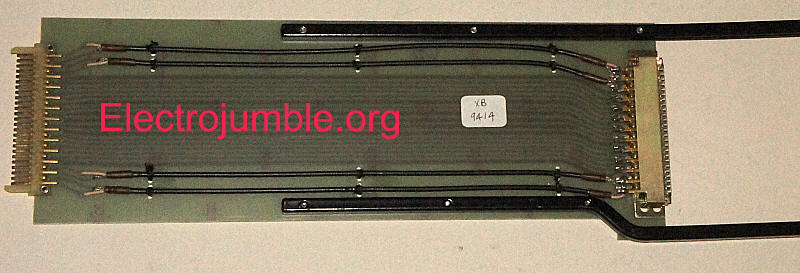

XB9414 |
| 25 | 1 | 297 | E62261 Record | 98 x 470 | With coax wiring and board support | 1 |

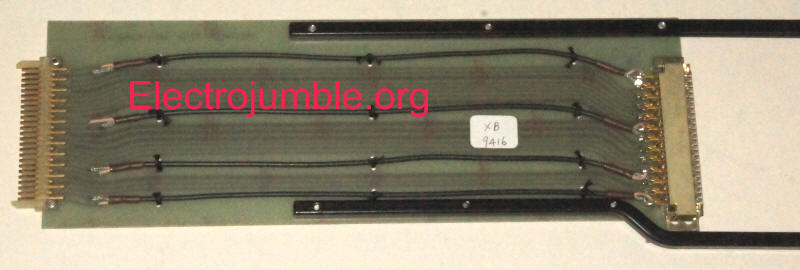

XB9416 |
| 25 | 1 | 297 | E62260 Voice | 98 x 470 | With coax wiring and board support | 1 | |
| | | | | | | |

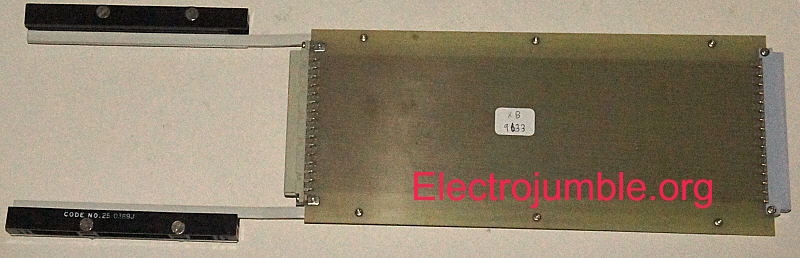

XB9633 |
DIN 41612 | 64 | 1 | 270 | Brabury 700117 | 114 x 275 | 2 rows. With board support 430mm overall | 1 |

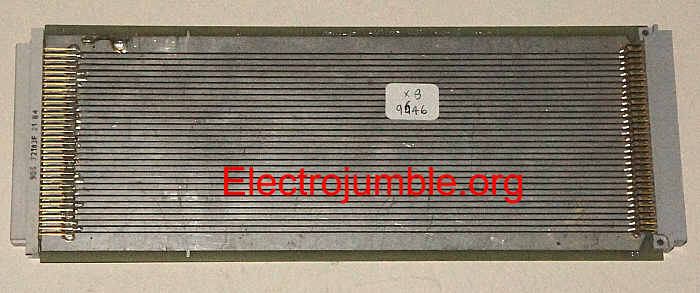

XB9646 |
DIN 41612 | 64 | 2 | 263 | Heritage AM1-HS-001 | 100 x 270 | 2 outer rows of 3 | 1 |

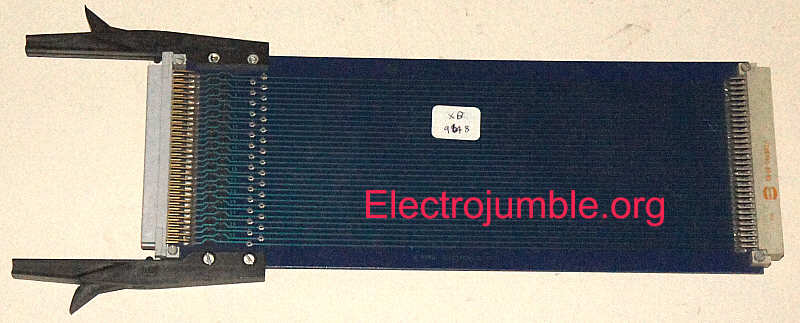

XB9648 |
DIN 41612 | 64 | 2 | 275 | Vero Eurocard 09-3865K | 100 x 282 | 2 outer rows of 3 with test points | 1 |
XB9649 |
DIN 41612 | 64 | Wire | 275 | | Wires | 2 rows | 1 |

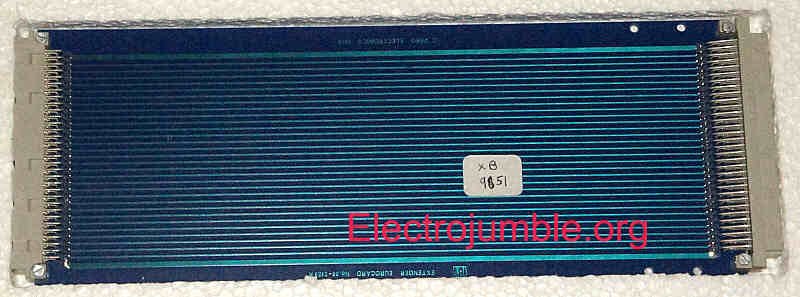

XB9651 |
DIN 41612 | 96 | 2 | 275 | Vero Eurocard 09-2459K | 100 x 282 | 3 row | 1 | |
| | | | | | | |

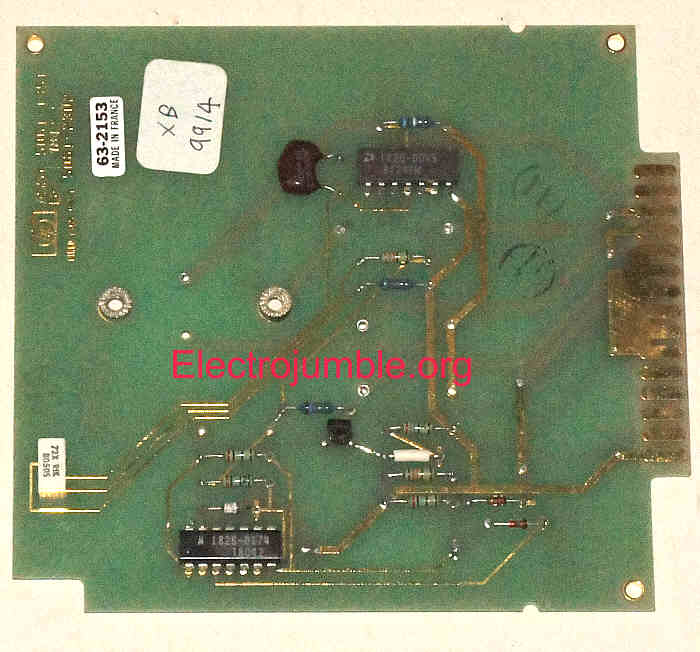

XB9914 |
0.156 | 15 | 2 | xxx | HP 5061-1351
5081-2302 63-2153 | 115 x 126 | Test
board | 1 |

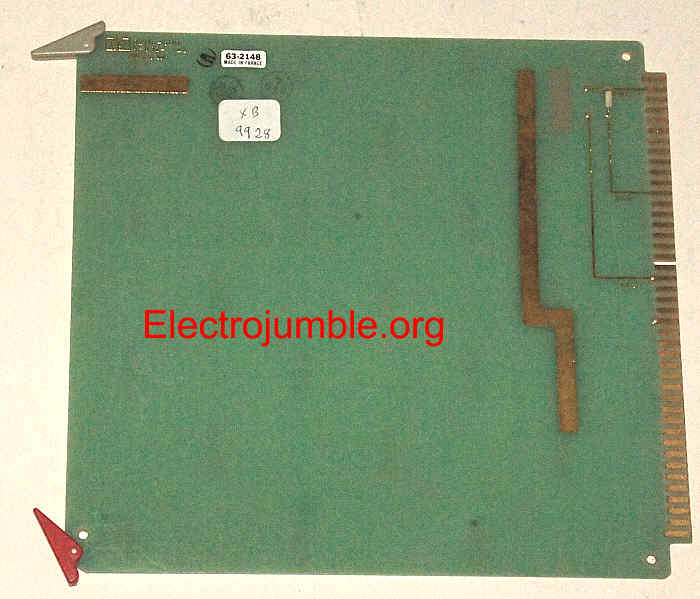

XB9928 |
0.156 | 43 | 1 | xxx | 02116-6110
A-632-22 63-2148 | 196
x 215 | Test board | 1 | REF |
PITCH inch | WAYS | Sides | Xtn mm | Brand Type No | Board Width x Overall mm | DESCRIPTION | Qty | A |
B | C | D | E | F | G | H | I |
Notes on definitions used in above table columns.- A Our Reference
- B Pitch spacing or Connector type.
- C Number of ways on connector. This can sometimes differ from number extended, for example if some are removed to polarise.
- D Single or Double-sided board. On plated edge connectors the total number of connections is CxD. On the DIN connectors, C is the total.
- E Extension provided by use of extender
- F Any markings on the board
- G Width of board x Overall length including connectors and supports
- H Further description
- I Quantity available. Some maintenance requires more than one extender to be used
